SIHD Series DC3000A-DC20000A Direct Measurement Current Sensor

Quick and easy installationHigh precision, high reliabilityLinear output, fast responseVarious output currents and voltagesStrong resistance to external magnetic field interferenceGood stability, no accumulated errorModelSIHD3000KF1SIHD5000KF1SIHD10000KF1SIHD15000KF1SIHD20000KF1Primary rated input c......

Send Inquiry

Product Description

Quick and easy installation

High precision, high reliability

Linear output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Good stability, no accumulated error

Model

SIHD3000KF1

SIHD5000KF1

SIHD10000KF1

SIHD15000KF1

SIHD20000KF1

Primary rated input current

DC3000A

DC5000A

DC10000A

DC15000A

DC20000A

Primary current measurement range

120%

Secondary side rated output

DC0-5V，DC0-10V，4-20mA

Secondary rated output

±15V~±24V

Current consumption

28＋ISmA

Accuracy

≤1%

Linearity

≤0.5%

Offset voltage

T=25℃，≤±25mV

Temperature drift

≤±0.08%/℃

Response time

Transmission output ≤150ms, tracking output ≤10μs

Load resistance

Voltage output ≥ 2kΩ, current output ≤ 250Ω

Tracking speed

≥50A/μs

Measurement bandwidth

DC~100kHz

Working temperature

-40℃~85℃

Storage temperature

-40℃~90℃

Isolation withstand voltage

2~6kV/50Hz/1min×1mA

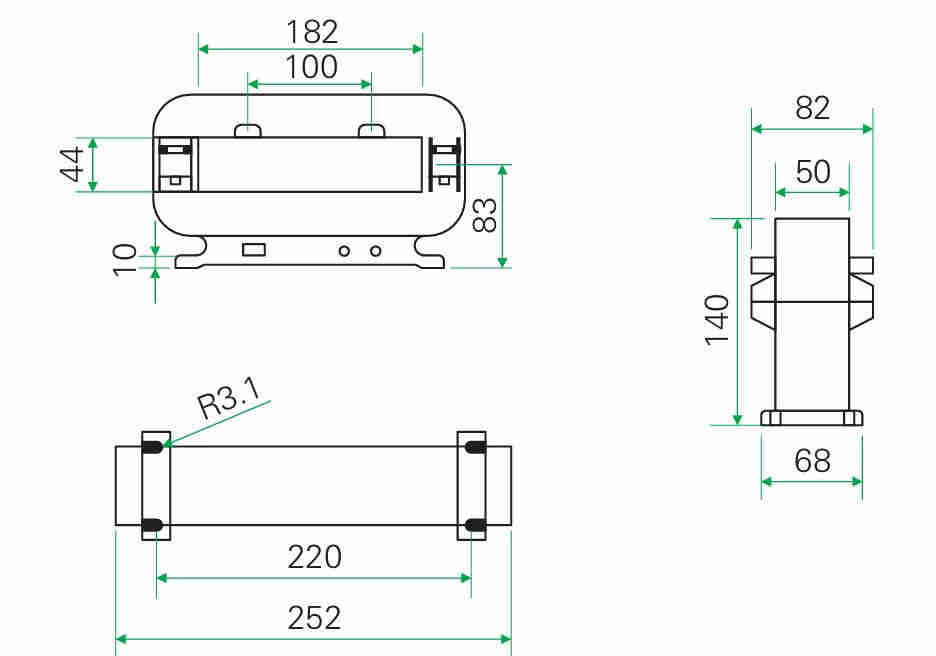

Install

Screw fixing Terminal wiring

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
