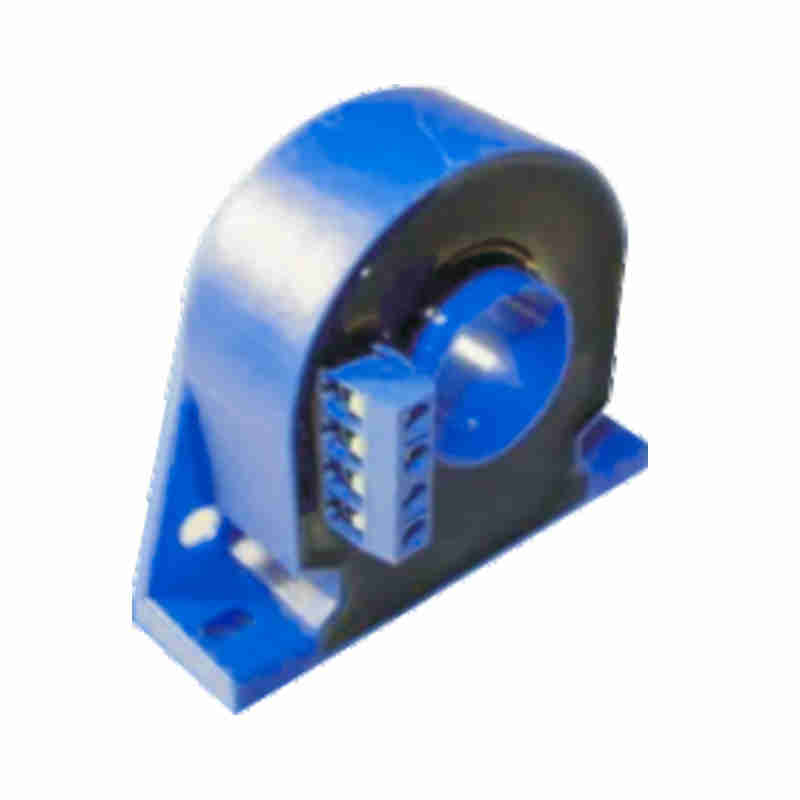

SVFP Series High Precision Electric Current Sensor Anti-Interference Suspended Design for Scanner MRI & Power Grid Monitoring

Send Inquiry

Product Description

Our high-precision current sensors are designed based on advanced fluxgate principle and have excellent performance. Its main features include: • High accuracy and excellent linearity: ensure accurate measurement results. • Low temperature drift and low zero drift: maintain stable performance under various environmental conditions. • Fast response time: respond to current changes in real time to improve system efficiency. • Strong anti-interference ability: effectively resist external electromagnetic interference and ensure data reliability. • High overload capacity: can work stably under extreme conditions. • Small additional inductance and no insertion loss: reduce the impact on the circuit and improve the overall performance.

Model	SVF100P	SVF500P	SVF1000P	SVF1500P	SVF2000P
Electrical Parameters
Measuring range	120%
Range input	0~±100V	0~±500V	0~±1000V	0~±1500V	0~±2000V
Rated measuring output	±50 mA	±50mA	±50mA	±50mA	±50mA
Power supply voltage	±12V~±15V ±18V~±24V
Current consumption	±30mA (@±15V)
Turns ratio	20:1000	20:1000	20:1000	20:2000	20:2000
Accurate dynamic performance parameters
Accuracy	≤±0.2%
Linearity	≤±0.1%
Temperature drift	≤±10μA
Response time	≤1μs
Offset current	T=25℃, ≤±5μA
Band width	DC 50kHz
Load resistance	≤100Ω
Isolation withstand voltage	5kV/50Hz/1min×1mA
