High-Precision SVGDP Series Photoelectric Voltage Sensor

Electromagnetic isolation principleHigh-precision transmissionWide-band responseLow driftLow power consumptionStrong anti-interference abilityModelSVGD50P-SVGD100PSVGD200PSVGD300PPrimary rated input current0~±50V 0~±100V 0~±200V0~±300VAllows over-input2 times nominal voltage inp......

Send Inquiry

Product Description

Electromagnetic isolation principle

High-precision transmission

Wide-band response

Low drift

Low power consumption

Strong anti-interference ability

Model	SVGD50P	-SVGD100P	SVGD200P	SVGD300P
Primary rated input current	0~±50V	0~±100V	0~±200V	0~±300V
Allows over-input	2 times nominal voltage input, lasting 1s, interval 10ns, repeated 10 times
Output	0~20mA，4~20mA，0~5V，0~10V
Working power supply	+12V，+15V，+24V
Accuracy	≤0.5%
Quiescent current	≤15mA
Output ripple	≤10mV
Temperature drift	200×10 /℃
Response time	≤200ms
Load resistance	Voltage output ≥ 2kΩ, current output ≤ 250Ω
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	3kV/50Hz/1min×1mA

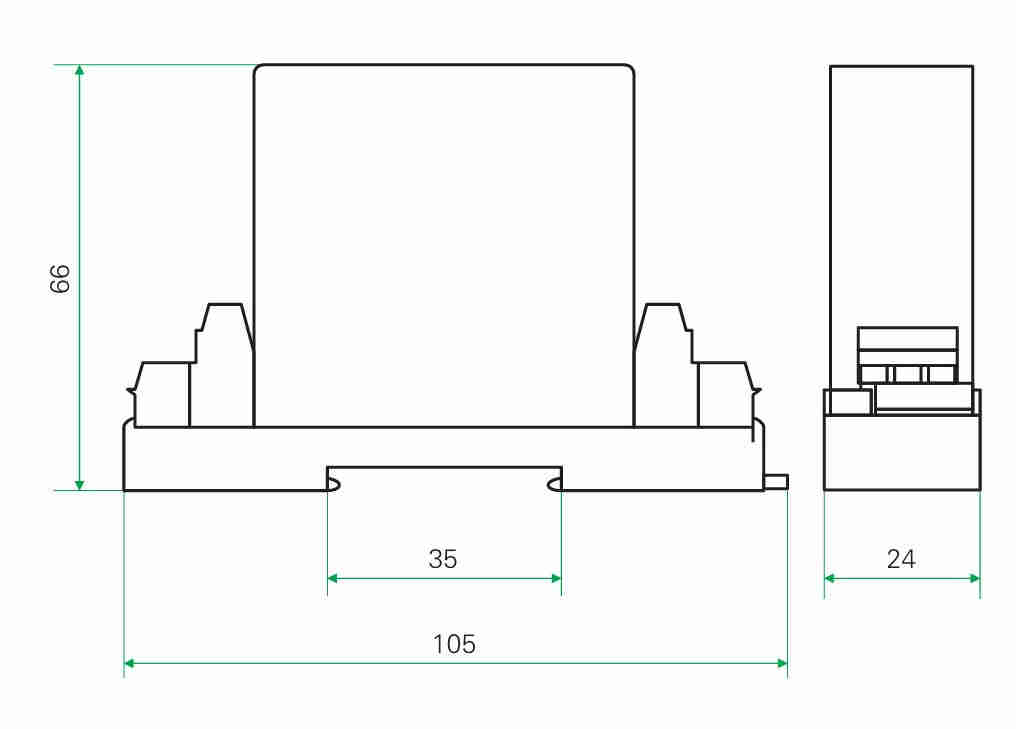

Install	Card-mounted track installation, terminal wiring

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
