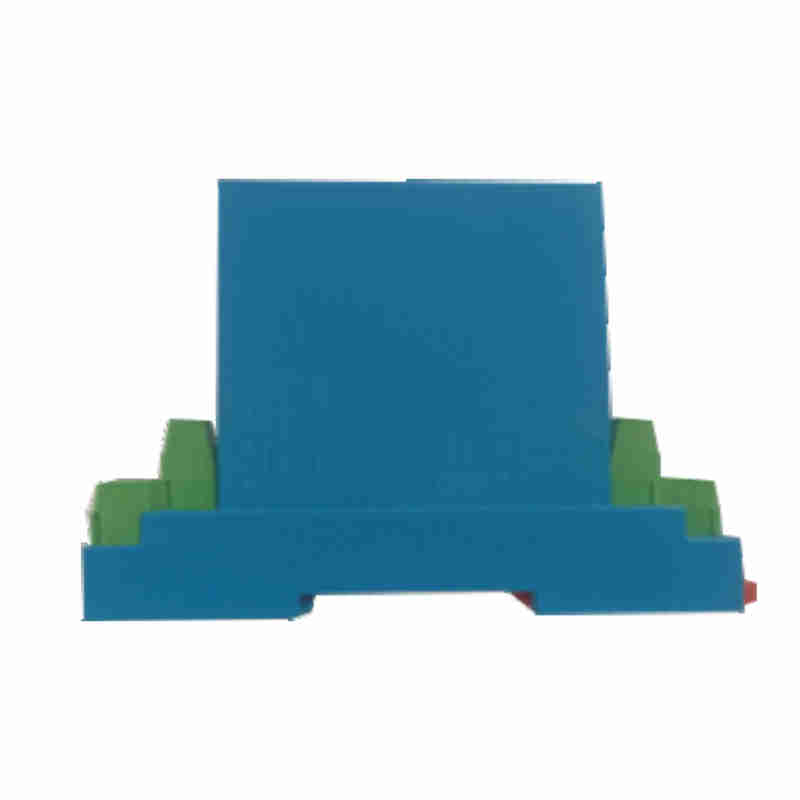

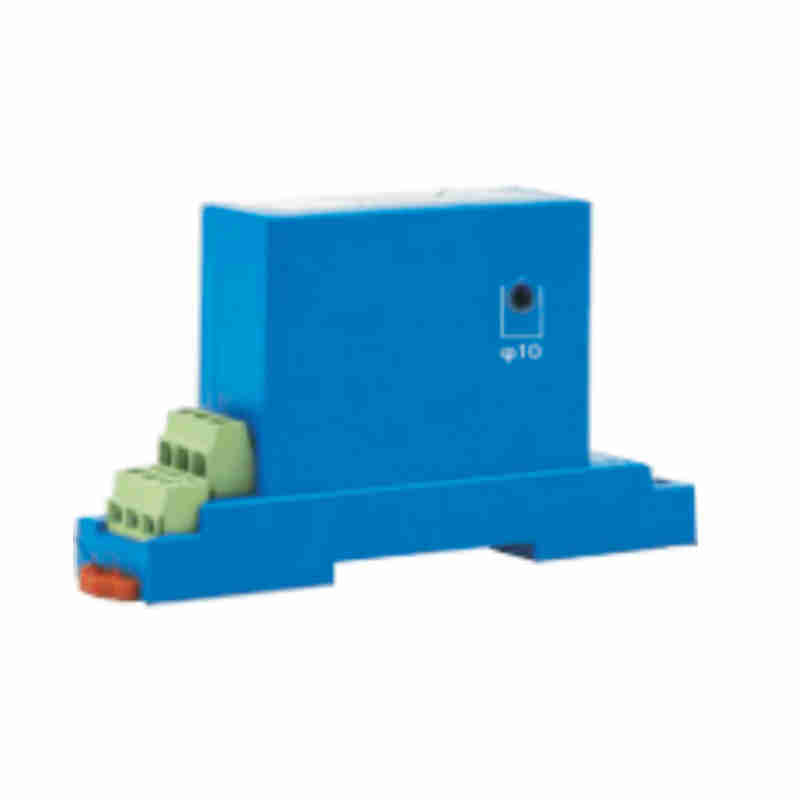

SVGD-P Series Photoelectric Voltage Measurement Device Voltage Sensor

Electromagnetic isolation principleHigh-precision transmissionWide-band responseLow driftLow power consumptionStrong anti-interference abilityModelSVGD500PSVGD1000PSVGD1500PSVGD2000PPrimary rated input current0~±500V 0~±1000V 0~±1500V0~±2000VAllows over-input2 times nominal volt......

Send Inquiry

Product Description

Electromagnetic isolation principle

High-precision transmission

Wide-band response

Low drift

Low power consumption

Strong anti-interference ability

Model	SVGD500P	SVGD1000P	SVGD1500P	SVGD2000P
Primary rated input current	0~±500V	0~±1000V	0~±1500V	0~±2000V
Allows over-input	2 times nominal voltage input, lasting 1s, interval 10ns, repeated 10 times
Output	0~20mA，4~20mA，0~5V，0~10V
Working power supply	+12V，+15V，+24V
Accuracy	≤0.5%
Quiescent current	≤15mA
Output ripple	≤10mV
Temperature drift	200×10 -8/℃
Response time	≤200ms
Load resistance	Voltage output ≥ 2kΩ, current output ≤ 250Ω
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	3kV/50Hz/1min×1mA

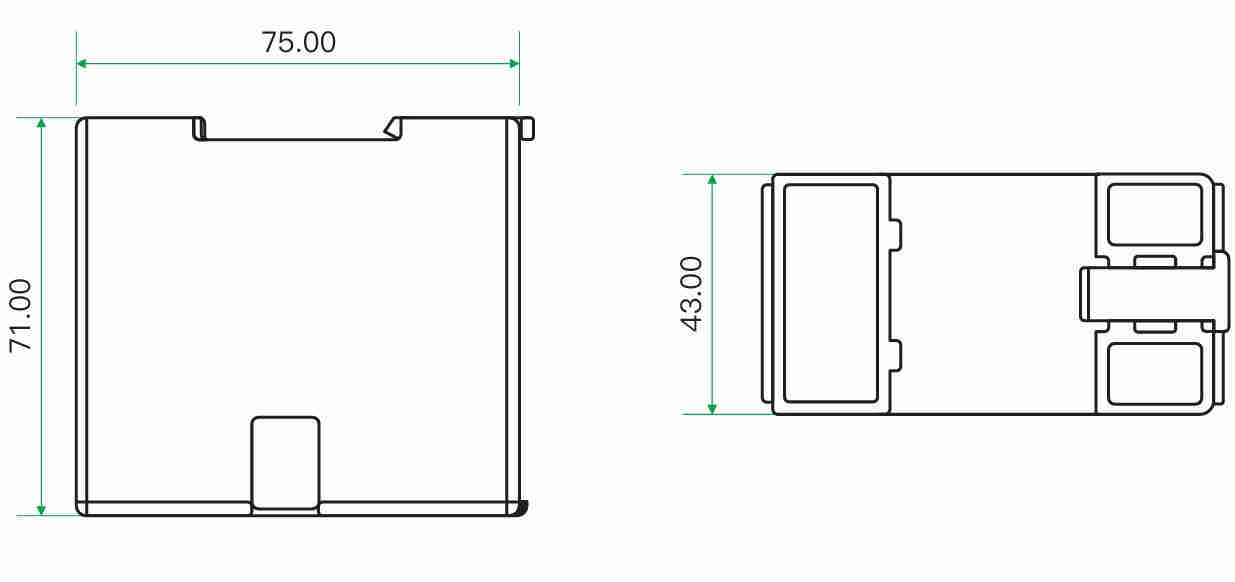

Install	Card-mounted track installation, terminal wiring

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry

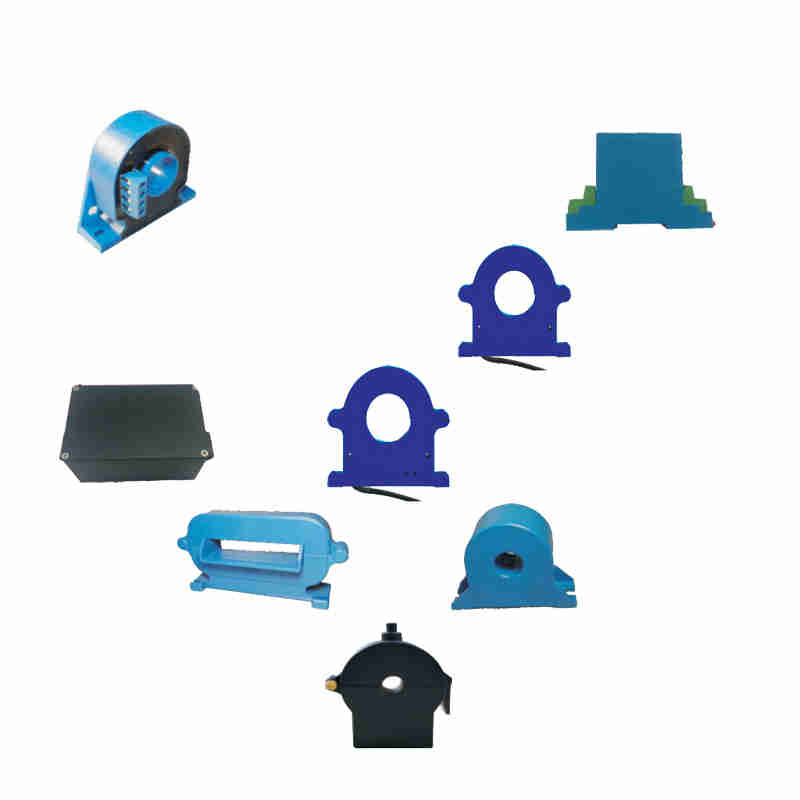

Ever-Power Technology Co., Ltd. was established in 2010. It is a high-tech enterprise engaged in system research and development, production, sales and service in the fields of high-speed signal processing, electromechanical control, etc. The company is guided by military development, driven by scientific and technological innovation, and supported by talent development. It has been deeply involved in the electronics industry for more than ten years and has a high-quality, high-tech and high-level engineering and technical team. Electricity sensors, transmitters, and mutual inductors are the electricity isolation detection products launched by Ever-Power Technology in recent years in response to market demand and combined with the company's own product structure advantages. After years of continuous improvement and updating of this type of product, several major series and hundreds of specifications have been formed. The products are widely used in communications, instrumentation, metallurgy, railways, navigation, aerospace and other fields and are generally recognized by users.
