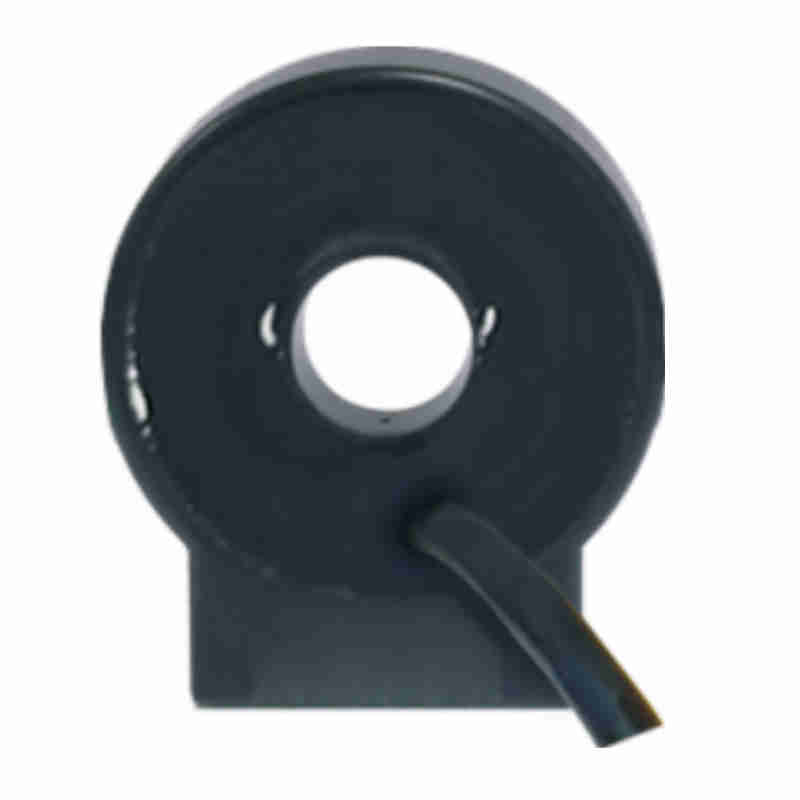

SICA30KY Reliable IP65 Current Monitoring Sensor AC Transformer

High insulation between primary and secondary sidesStrong overload capacity, good temperature characteristicsHigh reliability, MTBF: 3×104hThin design, small size, light weightLightweight design, easy to install, high cost performanceModelSICA30KYRange inputAC30ATurns ratio 1:1000Auxiliary powe......

Send Inquiry

Product Description

High insulation between primary and secondary sides

Strong overload capacity, good temperature characteristics

High reliability, MTBF: 3×104h

Thin design, small size, light weight

Lightweight design, easy to install, high cost performance

Model	SICA30KY
Range input	AC30A
Turns ratio	1:1000
Auxiliary power supply	30mA
Linearity	≤0.1%
Phase difference nonlinearity	≤5'
Load capacity	≤2V
Input frequency response	25Hz~5kHz
Linear range	0%~120%
Housing aperture	Φ9mm
Overload capacity	10 times the nominal input current value, lasting 1s, interval 300s, repeated 5 times
Isolation and withstand voltage	2.5kV/50Hz/min×1mA
Working environment	Temperature: -40~85℃; Humidity: ≤95% (no condensation)
Waterproof level	IP65
Installation and fixing method	Screw fixing
Housing and lead requirements	Low smoke flame retardant
Filling requirements	Resin sealing

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
