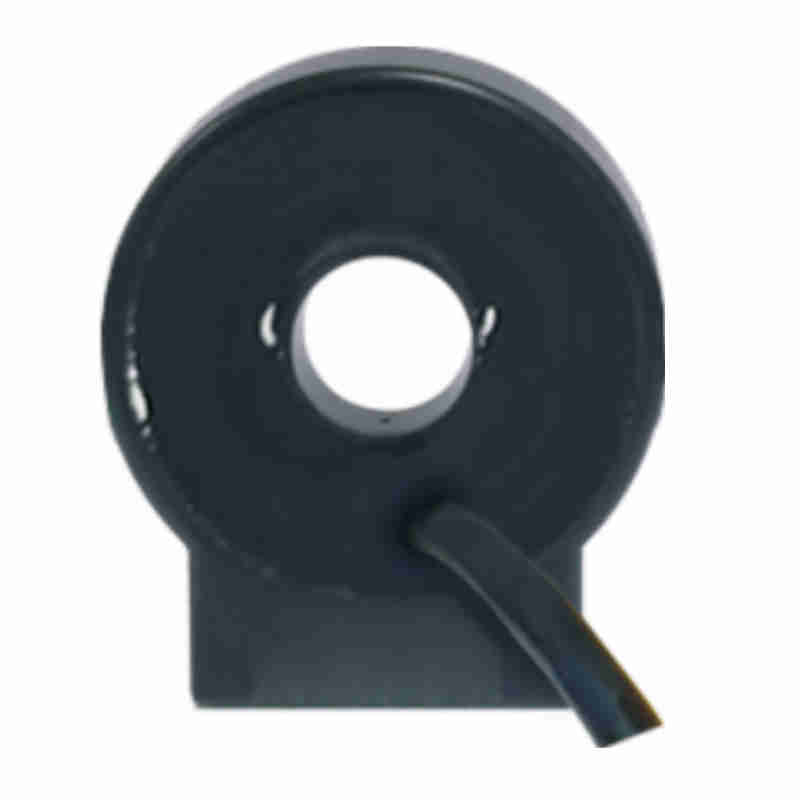

SICA20KY Voltage Current Measurement Device Sensor AC Transformer

Raydafon Group's SICA20KY Voltage Current Measurement Device Sensor AC Transformer offers precise monitoring for professionals and DIYers in industrial and home settings. With advanced technology and durable design, it ensures reliable performance, enhancing safety and efficiency. Feel empowered by accurate readings that solve electrical challenges, setting it apart with unmatched accuracy. Limited-time discounts available—upgrade your toolkit today!

Send Inquiry

Product Description

High insulation between primary and secondary sides Strong overload capacity

Good temperature characteristics High reliability

Internal electrical system works continuously for 10 years

Lightweight design

Easy to install

Super cost-effective

Model	SICA20KY
Range input	AC0-20A
Turns ratio	1:4000
Auxiliary power supply	0.5mA
Linearity	≤0.1%
Phase difference nonlinearity	≤5'
Load capacity	≤2V
Input frequency response	25Hz~5kHz
Linear range	0%~120%
Housing aperture	Φ9mm
Overload capacity	10 times the nominal input current value, lasting 1s, interval 300s, repeated 5 times
Isolation and withstand voltage	2.5kV/50Hz/min×1mA
Working environment	Temperature: -40~85℃; Humidity: ≤95% (no condensation)
Product output lead length	200mm (including male connector), M12 male connector, 2-core
Waterproof level	IP65
Installation and fixing method	Screw fixing
Housing and lead requirements	Low smoke flame retardant
Filling requirements	Resin sealing

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
