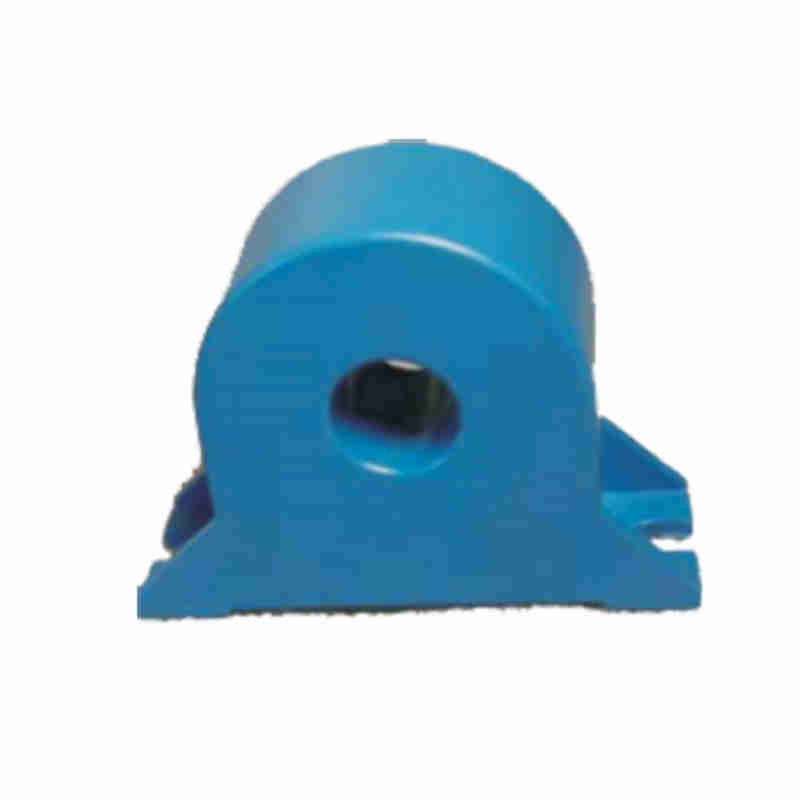

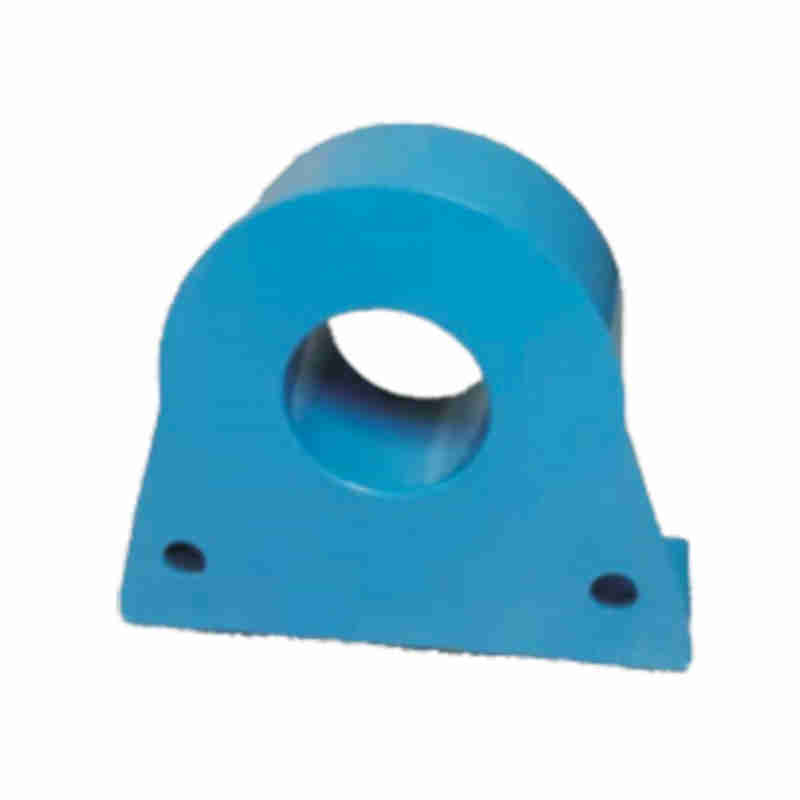

SITD Series Stable High Precision Magnetic Balance Current Sensor for Power Monitoring UPS

Quick and easy installationHigh precision, high reliability, low cost testingLinear output, fast responseVarious output currents and voltagesStrong resistance to external magnetic field interferenceModelSITD100GSITD150GSITD200GPrimary rated input current0~±100A0~±150A0~±200APrimary cu......

Send Inquiry

Product Description

Quick and easy installation

High precision, high reliability, low cost testing

Linear output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Model	SITD100G	SITD150G	SITD200G
Primary rated input current	0~±100A	0~±150A	0~±200A
Primary current measurement range	120%
Secondary side rated output current	±100mA	±100mA	±100mA
Turns Ratio	1:1000	1:1500	1:2000
Secondary rated output	±15V~±24V
Current consumption	20±5mA（@±18V）
Accuracy	≤±0.5%
Linearity	≤±0.02%
Temperature drift	≤±0.2mA（-40℃~+80℃）
Response time	≤3μs
Load resistance	≤10Ω
Tracking speed	≥100A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	2~6kV/50Hz/1min×1mA

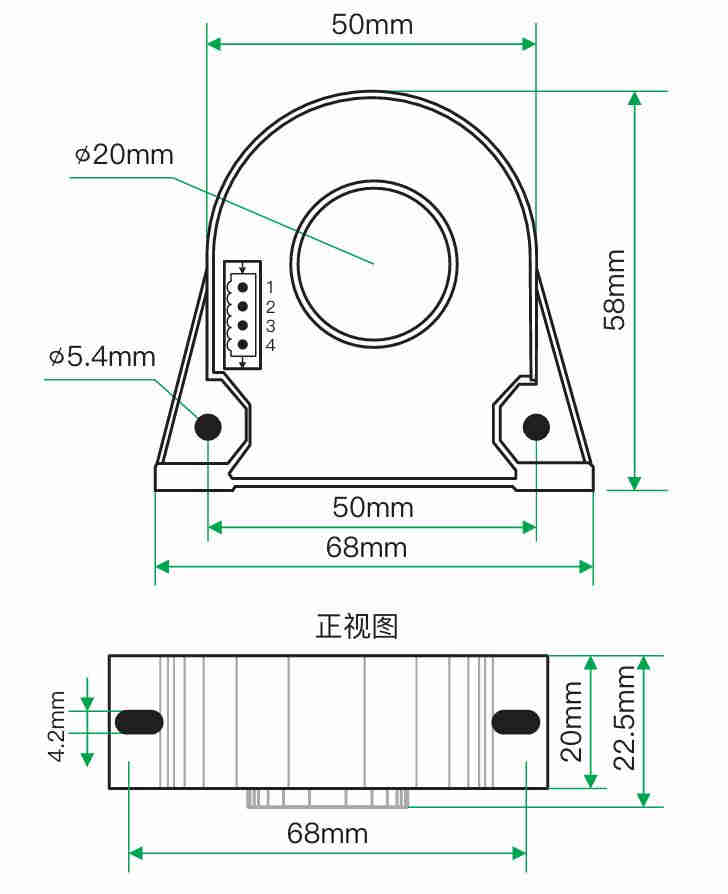

Outlet mode	Pin header, lead wire

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
