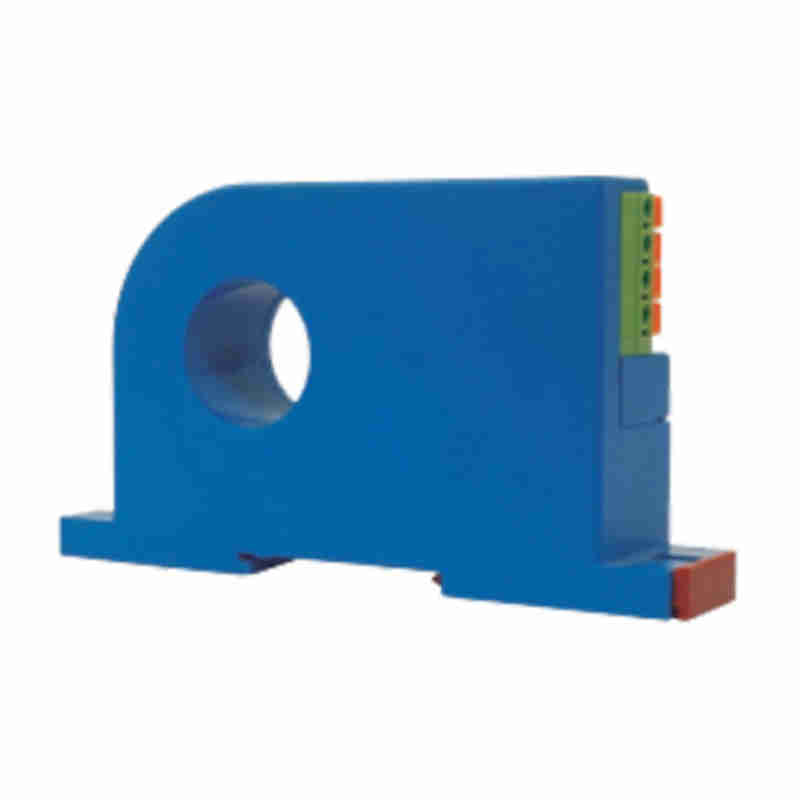

Plastic Housing Ammeter Electrical Current Sensor

Quick and easy installationHigh precision, high reliabilityLinear output, fast responseVarious output currents and voltagesStrong resistance to external magnetic field interferenceGood stability, no accumulated errorModelSITD50PSITD100PSITD150PSITD200PPrimary rated input currentDC0~50ADC0~100ADC0~15......

Send Inquiry

Product Description

Quick and easy installation

High precision, high reliability

Linear output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Good stability, no accumulated error

Model	SITD50P	SITD100P	SITD150P	SITD200P
Primary rated input current	DC0~50A	DC0~100A	DC0~150A	DC0~200A
Primary current measurement range	120%
Secondary side rated output	DC0~5V，0~10V，2~10V，4~20mA
Working power supply	DC9~36V，±12V，±15V，±24V
Current consumption	28＋ISmA
Accuracy	≤±0.5%
Linearity	≤±0.2%
Offset voltage	T=25℃，≤±25mV
Offset Current	T=25℃，≤±0.05mA
Temperature drift	≤±0.08%/℃
Response time	≤3μs
Load resistance	Current output ≤ 250Ω, voltage output ＞ 2kΩ
Tracking speed	≥50A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	2~6kV/50Hz/1min×1mA

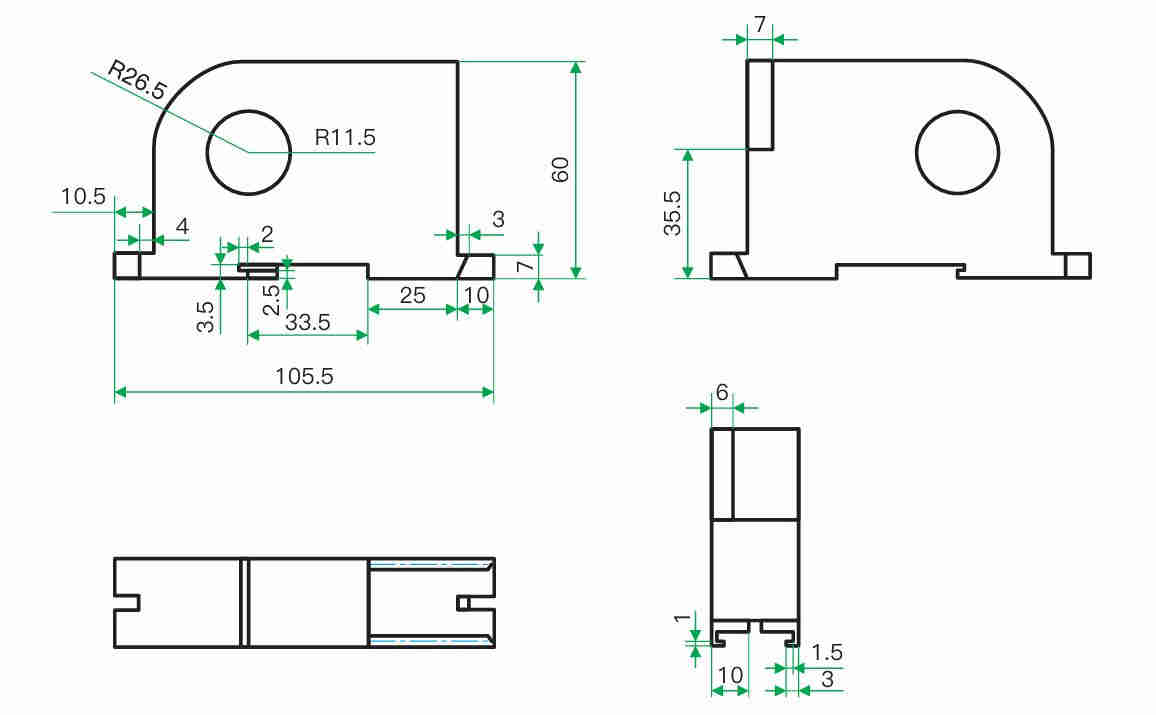

Install	Card-mounted track installation, terminal wiring

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry

Ever-Power Technology Co., Ltd. was established in 2010. It is a high-tech enterprise engaged in system research and development, production, sales and service in the fields of high-speed signal processing, electromechanical control, etc. The company is guided by military development, driven by scientific and technological innovation, and supported by talent development. It has been deeply involved in the electronics industry for more than ten years and has a high-quality, high-tech and high-level engineering and technical team. Electricity sensors, transmitters, and mutual inductors are the electricity isolation detection products launched by Ever-Power Technology in recent years in response to market demand and combined with the company's own product structure advantages. After years of continuous improvement and updating of this type of product, several major series and hundreds of specifications have been formed. The products are widely used in communications, instrumentation, metallurgy, railways, navigation, aerospace and other fields and are generally recognized by users.
