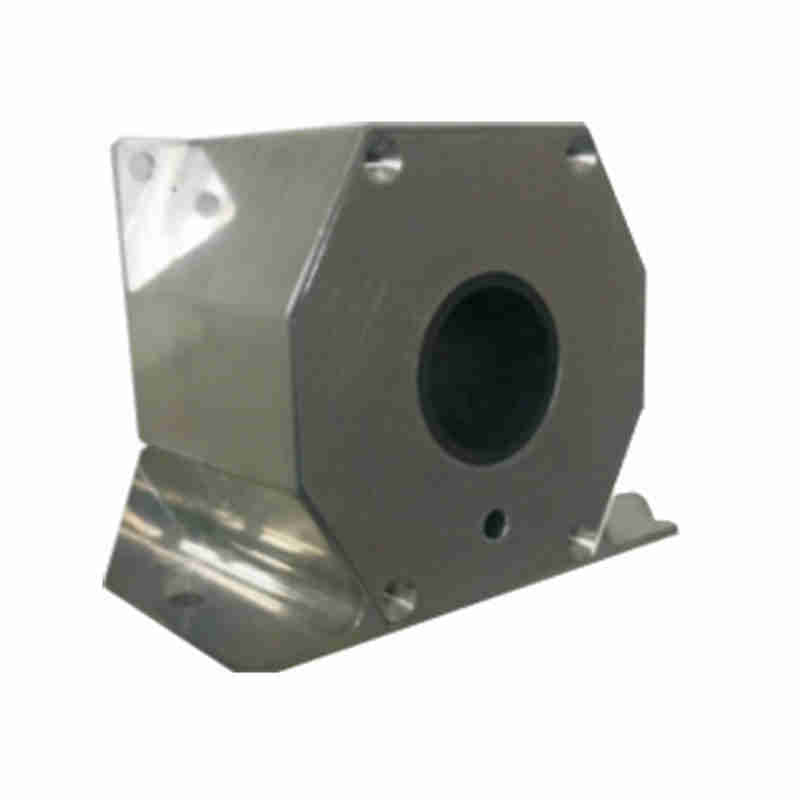

Electrical Detector Current Sensor for Current Isolation Measurement Power Supply Monitoring

Based on the principle of electromagnetic conversion effectHigh-precision, high-reliability output, fast response to various output currents and voltages,Strong resistance to external magnetic field interferenceGood long-term stability, no accumulated errorModelSITD1000P-1SITD1200P-1SITD1500P-1Prima......

Send Inquiry

Product Description

Based on the principle of electromagnetic conversion effect

High-precision, high-reliability output, fast response to various output currents and voltages,

Strong resistance to external magnetic field interference

Good long-term stability, no accumulated error

Model	SITD1000P-1	SITD1200P-1	SITD1500P-1
Primary rated input current	0~±1000A	0~±1200A	0~±1500A
Primary current measurement range	120%
Secondary side rated output current	±200mA	±200mA	±200mA
Turns Ratio	1:5000	1:6000	1:7500
Secondary rated output	±15V~±24V
Current consumption	28＋ISmA
Accuracy	≤±0.5%
Linearity	≤±0.2%
Offset voltage	T=25℃，≤±25mV
Temperature drift	≤±0.08%/℃
Response time	≤3μs
Load resistance	≤10Ω
Tracking speed	≥100A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-55°C-85°C
Storage temperature	-55°C-105°C
Isolation withstand voltage	2~6kV/50Hz/1min×1mA
Outlet mode	lead wire

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry

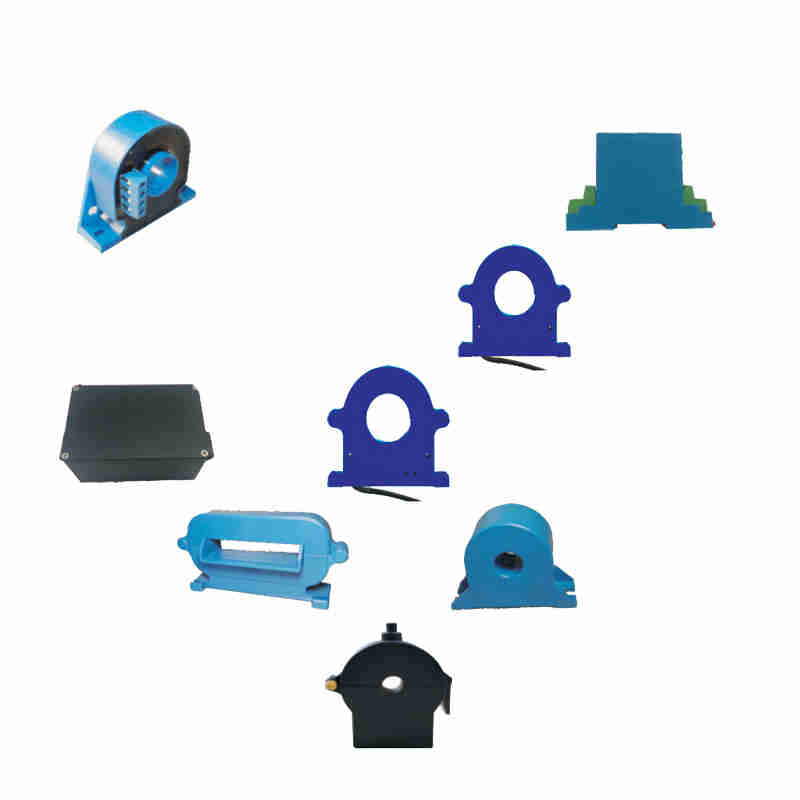

Ever-Power Technology Co., Ltd. was established in 2010. It is a high-tech enterprise engaged in system research and development, production, sales and service in the fields of high-speed signal processing, electromechanical control, etc. The company is guided by military development, driven by scientific and technological innovation, and supported by talent development. It has been deeply involved in the electronics industry for more than ten years and has a high-quality, high-tech and high-level engineering and technical team. Electricity sensors, transmitters, and mutual inductors are the electricity isolation detection products launched by Ever-Power Technology in recent years in response to market demand and combined with the company's own product structure advantages. After years of continuous improvement and updating of this type of product, several major series and hundreds of specifications have been formed. The products are widely used in communications, instrumentation, metallurgy, railways, navigation, aerospace and other fields and are generally recognized by users.
