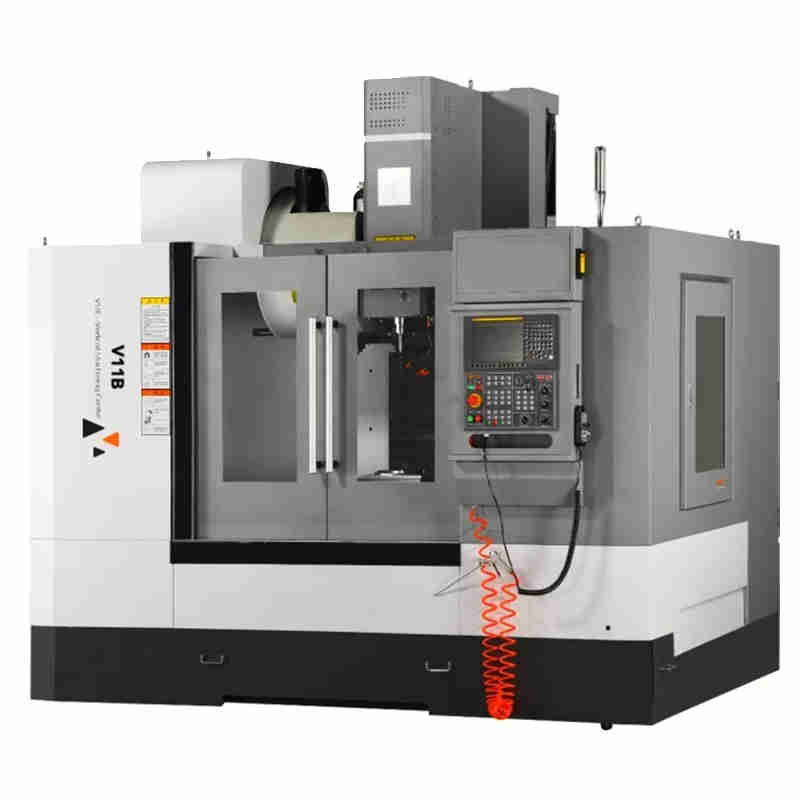

V11BVertical Maching Center--Strong Rigidity High productivity Vertical Machining Center

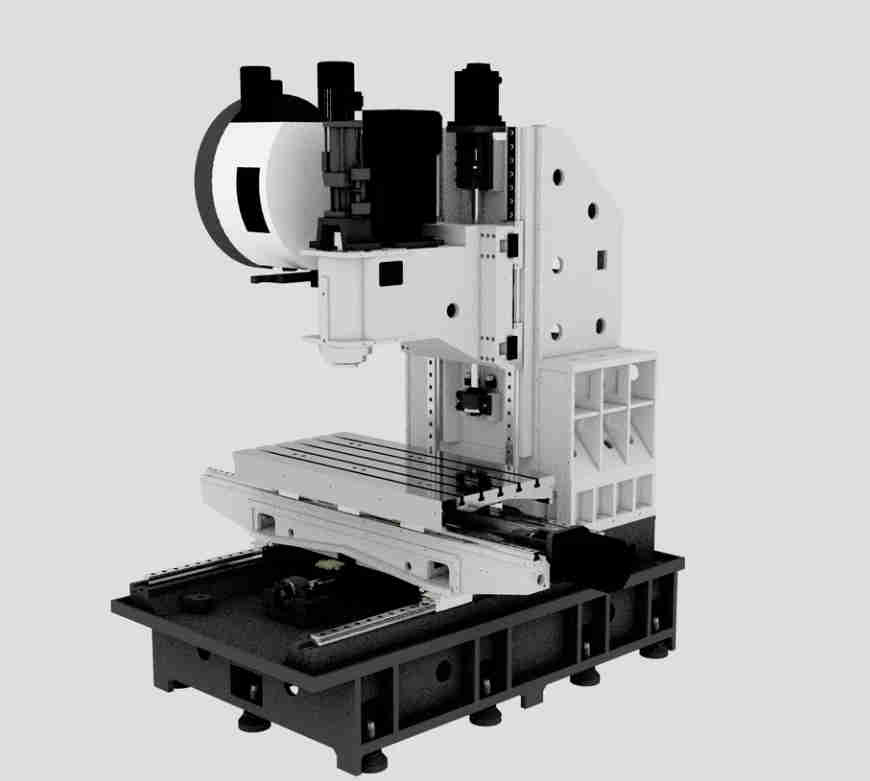

The V11B direct spindle high-speed machining center adopts a vertical frame layout, with columns fixed on the bed. The spindle box moves up and down along the columns (Z direction), the slide seat moves longitudinally along the bed (Y direction), and the workbench moves laterally along the slide seat (X direction). All three axes use linear guides, replacing sliding friction with rolling friction, which makes the movement speed faster and meets the requirements of high speed and precision. The bed body, workbench, bed saddle, column, spindle box, etc. are shaped using resin sand technology, with two aging treatments to eliminate stress. These large components are all designed with 3D optimization to improve the stiffness and stability of both the components and the entire machine, effectively suppressing machine deformation and vibration caused by cutting forces. It can achieve processes such as milling, drilling, expanding, boring, reaming, tapping, etc. It is mainly used in mechanical processing industries such as , mining, automotive, molds, instruments, etc. It can be used to process various high-precision, multi process, and complex shaped parts. Suitable for small and medium-sized batch, multi variety production, and can also enter automatic assembly line production.

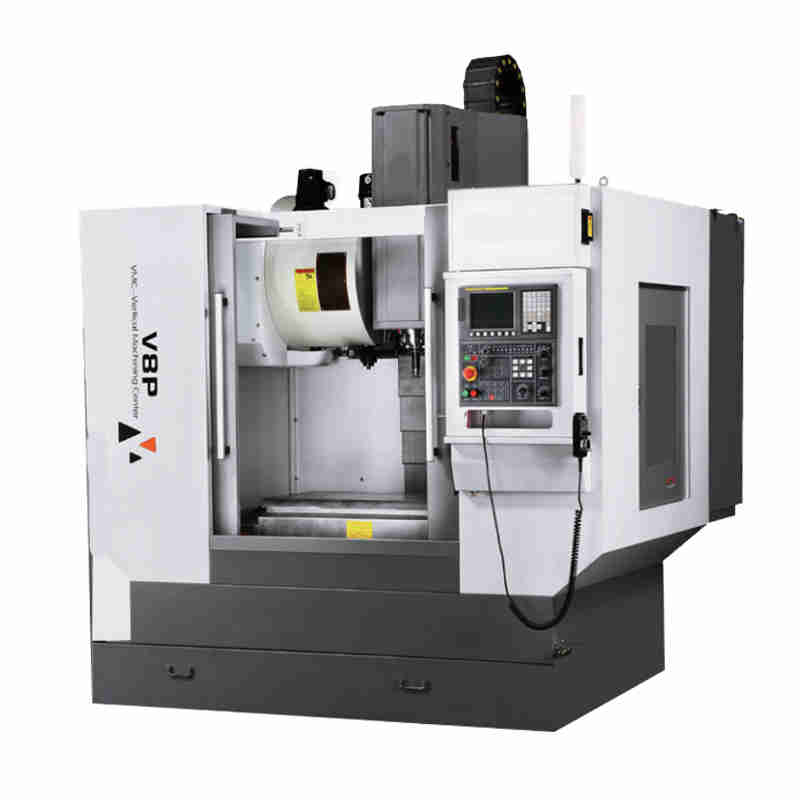

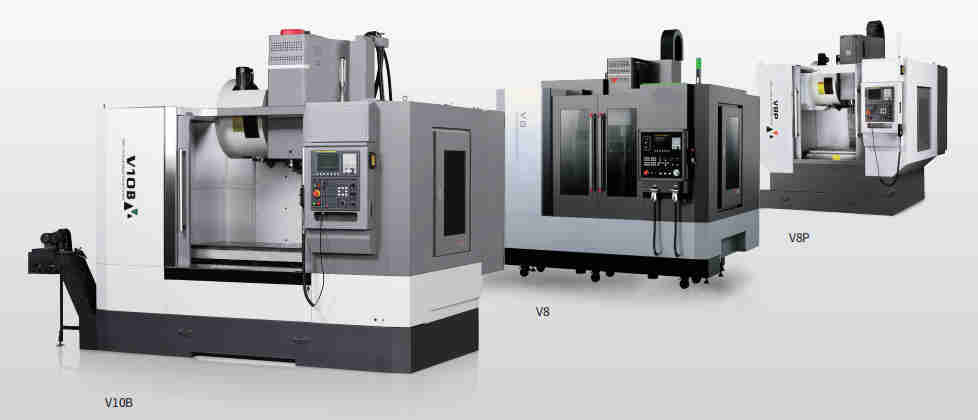

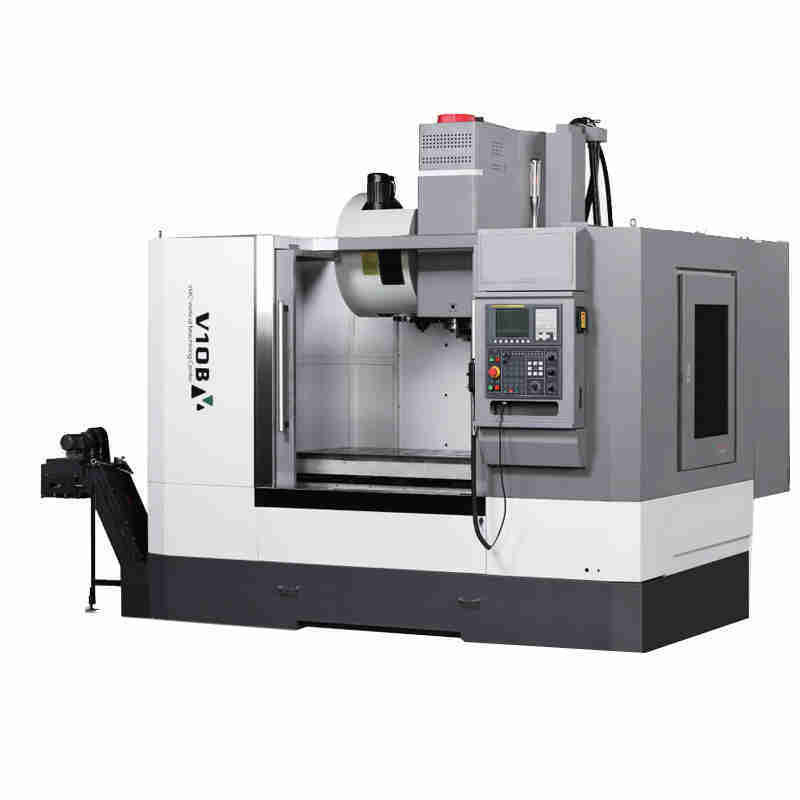

Item	Unit	V8P	V10P	V10B	V11B
Worktable
Worktable size	mm	500x1000	520x1200	610×1200	610×1300
T-slot (N×W×D)	mm	5x18x100	5x18x100	5x18x100	5x18x100
Travel
Axis travel (X/Y/Z)	mm	850/500/550	1000/520/535	1000/620/630	1100/610/630
Machining range
Distance from spindle center to column front	mm	582	582	667	667
Distance from spindle end to work table	mm	100~650	80~615	120~750	110~740
Machine dimension
L×W×H	mm	2460x2355x2860	2600x2355x2860	2850x2500x2820	3000x2500x2750
Machine weight
Max. load bearing of worktable	kg	500	500	800	1000
Machine weight	kg	5500	5800	6800	7000
Spindle
Spindle hole taper		BT40	BT40	BT40	BT40
Spindle power	Kw	7.5/11	7.5/11	11/15	11/15
Max. spindle speed	rpm	12000	12000	10000	10000
Feed
Max. feed speed	mm/min	10000	10000	10000	10000
Rapid feed speed (X/Y/Z)	m/min	48/48/32	48/48/32	36/36/30	36/36/30
Tool Magazine
Tool magazine capacity	T	24	24	24	24
Tool change time(T-T)	s	2.5	2.5	2.5	2.5
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.008	0.008	0.010	0.010
Re-positioning accuracy(X/Y/Z)	mm	0.005	0.005	0.005	0.005

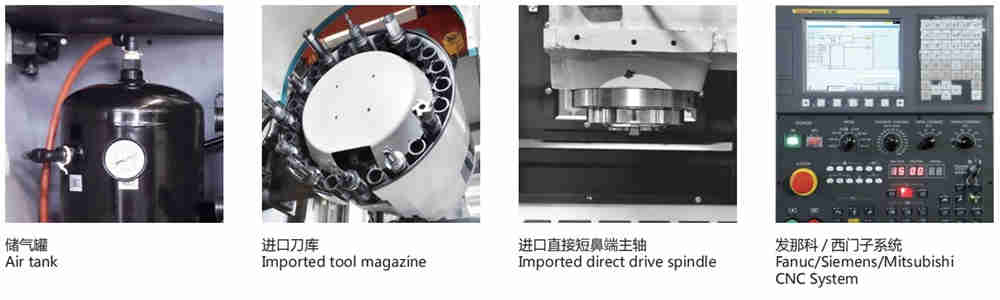

Machine Structure:

--Wide machine body span and optimum supporting design can meet with fast feed of X and Y axis
--Optimum length design of saddle to ensure moving stability of X axis

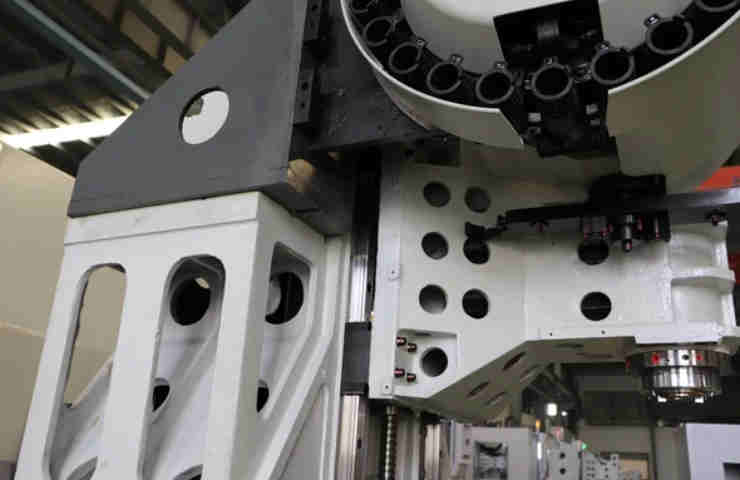

--Big size of "pyramid" column and with closed inner cavity to ensure low center but high rigidity support of Z axis

Spindle :

--Taiwan brand short nose BT40-150mm spindle, standard is belt drive 8000rpm. Optional is 10000rpm. 3 bearings in front end and 2 bearings in rear end
--11/15Kw spindle wide are motor with high torque 105Nm
--Ultralight spindle headstock and Z axis without counter balance block

Tool Magazine :

Shoulder carrying Taiwan brand tool magazine can ensure Z axis geometric accuracy and perfect stability, rigidity and the minimum
shock when column loaded with tool magazine weight

Axes Driving :

--THK, REXROTH, PMI, HIWIN 3 axes roller type linear motion guideway 35/45/45(X/Y/Z)

--By roller linear contacting, the LM guideway can offer a better rigidity which ensure the fast feed rate and reduce cutting time

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments*Production equipment*Gear hob*Insert gear hob*Gear hob*Worm gear hob*Involute spline hob*Triangular spline hob rectangular spline hob*Sprocket roller cutter*Circular arc gear hob*Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

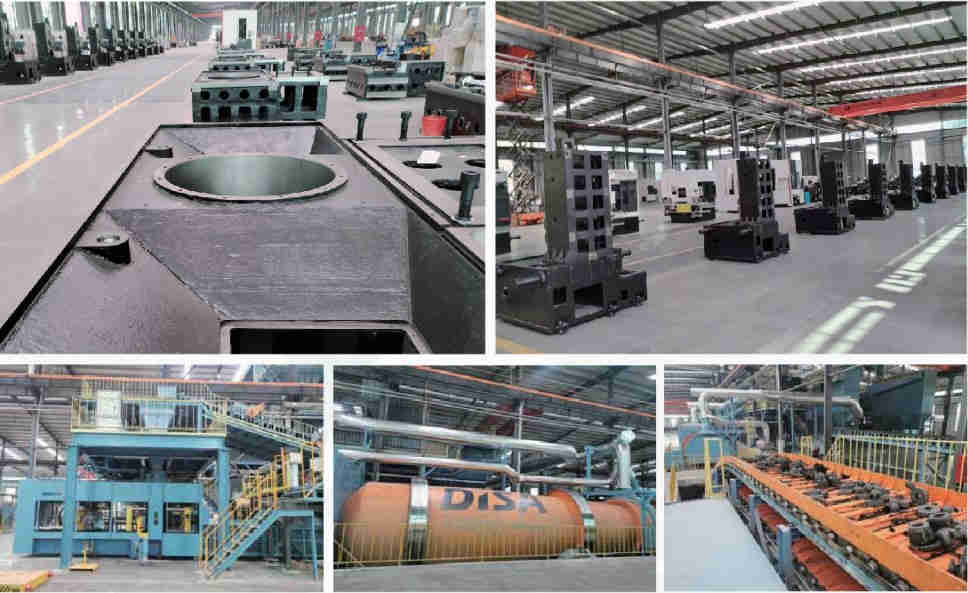

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

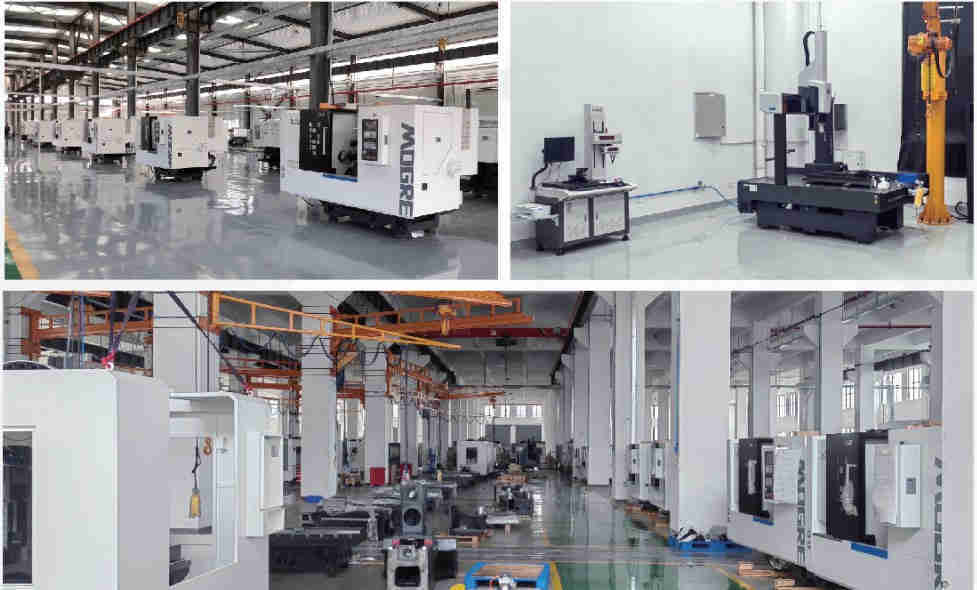

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
