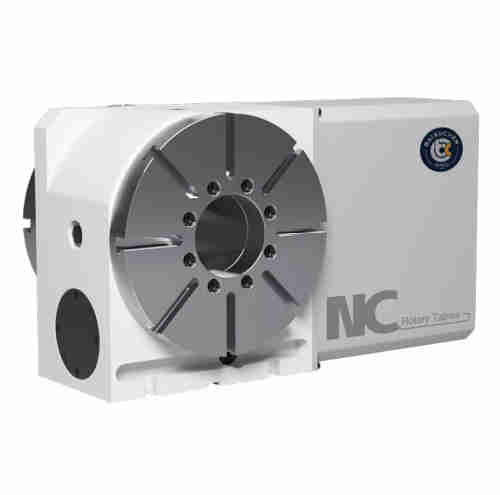

WT-320-2P China Industrial Cnc Vertical Machining Center Cnc Machining Center Accessories

Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-320-2PSegmentation accuracy15 ″Disk DiameterΦ320mmRepeat positioning4 ″Center DiameterΦ110H7mmLocking Mode115kg.mSpindle HoleΦ110mmServo Motorβ22is;HF......

Send Inquiry

Product Description

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

Product Model	WT-320-2P	Segmentation accuracy	15 ″
Disk Diameter	Φ320mm	Repeat positioning	4 ″
Center Diameter	Φ110H7mm	Locking Mode	115kg.m
Spindle Hole	Φ110mm	Servo Motor	β22is;HF-204
Center Height	210mm	Speed Reduction Ratio	1:120
T-Slot Width	14H7mm	Maximun Speed	33.3r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	44.8kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	80Kg.m
Weight(Without Motor)	180Kg	Vertical	150KG
		Tailstock applied	350KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
