MGW-C MGW-H Series Linear Guideway Guide Rail for CNC Machine Tool Lathe

MGW-C/MGW-H Linear GuidewayLinear Guideway is a high-precision linear motion system widely used in various industrial equipment that requires precise linear motion. It achieves low friction and high load-bearing capacity by rolling balls or rollers between the guide rail and slider, ensuring smooth ......

Send Inquiry

Product Description

MGW-C/MGW-H Linear Guideway

Linear Guideway is a high-precision linear motion system widely used in various industrial equipment that requires precise linear motion. It achieves low friction and high load-bearing capacity by rolling balls or rollers between the guide rail and slider, ensuring smooth and accurate linear motion.

Model No.	Dimensions of					Mounting	Basic Dynamic	Basic Static	Weight
		Assombly( mm )					Bolt for Rail	Load Rating	Load Rating	Block	Rail
		H	H1	N	( mm )	C(kN)	CO(kN)	kg	kg/m
MGW 5C	6.5	1.5	3.5	M2.5x7	0.68	1.18	0.016	0.34
MGW 5CL	6.5	1.5	3.5	M2.5x7	0.68	1.18	0.016	0.34
MGW 7C	9	1.9	5.5	M3x6	1.37	2.06	0.02	0.51
MGW 7H	9	1.9	5.5	M3x6				0.51		1.77	3.14	0.029
MGW 9C	12	2.9	6	M3x8	2.75	4.12	0.04	0.91
MGW 9H	12	2.9	6	M3x8				0.91		3.43	5.89	0.057
MGW 12C	14	3.4	8	M4x8	3.92	5.59	0.071	1.49
MGW 12H	14	3.4	8	M4x8				1.49		5.1	8.24	0.103
MGW 15C	16	3.4	9	M4x10	6.77	9.22	0.143	2.86
MGW 15H	16	3.4	9	M4x10				2.86		8.93	13.38	0.215

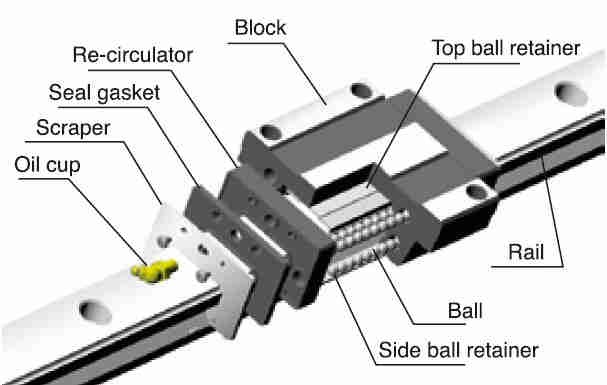

Basic structure of GGB series

Application area

Linear Guideway is widely used in multiple industries, including but not limited to: ---Machine tools: CNC machine tools, machining centers, etc., ensure precise positioning of cutting tools and workpieces. ---Automation equipment: robot arms, conveyor systems, etc., providing stable linear motion. ---Electronic manufacturing industry: semiconductor production equipment, SMT surface mount machines, etc., ensuring high-precision assembly and testing. ---Medical devices: imaging diagnostic equipment, surgical robots, etc., achieve precise movement control. --Packaging machinery: packing machines, palletizing machines, etc., to improve production efficiency and product quality.

Precision linear guideway

GZB series-heavy load Roller caged linear guidewayGZB-AAAAL heavy load roller LMG
GZB-BA/BAL heavy load roller LMG
GGB four direction equal load ball LM guide
GGB-AA/AAL four direction equal load ball LM guide
GGB-AB/ABL four direction equal load ball LM guide
GGB-BABAL four direction equal load ball LM guide
GGC type Miniature linear guideway
GGD heavy load radial linear guideway
GGD-AAAAL heavy load radial guideway
GGD-BA/BAL heavy load radial guideway

Precision linear motion spline series

Precision linear motion spline series

GJZ Convex type

GJZA Convex type

GJF Convex type

GJH Convex type

GJZG Convex type

GJFG Convex type

GJZD Convex type

CNC Precision Worktable

CNC Precision Worktable

DZHQ type

Precision roller guide block GZD roller guide block Precision roller cross guide GZV precision roller cross guide

GGY arc LMG

Precision ball screw assembly JF / JFZD large heavy load ball screw assembly

JF type large heavy load ball screw

JFZD heavy load ball screw

DKF high speed ball screw

DKFZD high speed precision ball screw

Ball screw with FF / FFZ type inner cycle , single nut

FFB type inner cycle , deflected lead preload flange nut

FFZD type inner cycle , combined spacer preload nut

Ball screw with FFZL type inner cycle , thread preload nut

Ball screw with JF mini-type

Ball screw with CMFZD outer cycle , tube enclosed spacer preload nut

Ball screw with CTF outer cycle tube

Ball screw with DGF inner cycle end housing

Ball screw with DGZ inner cycle end housing type

Precision linear motion bushing

Precision linear motion bushing

Dimension series of GTA , GTAT type

Dimension series of GTB , GTB-T , GTBT , GTBT-T type

Dimension series of GTC type bushing

The company adheres to technological innovation, constantly pays attention to, tracks, and masters international advanced technologies. The company has a comprehensive performance testing laboratory for rolling functional components, with a noise level of 70dB when the high-speed ball screw pair runs at 60m/min and 68dB when the high-speed linear rolling guide pair runs at 60m/min. It provides batch matching ball screw pairs and rolling guide pairs for precision horizontal machining centers, achieving a fast movement speed of 48m/min for each axis, positioning accuracy of 0.002mm, and repeated positioning accuracy of 0.001mm. The company has established a complete equipment guarantee system and possesses a batch of internationally advanced and domestically leading excellent equipment. It has built production lines for high-precision ball screw pairs, large-scale ball screw pairs, and precision rolling guide rail pairs. The company's products are widely matched with well-known high-end CNC machine tools both domestically and internationally, promoting the upgrading and replacement of imported domestically produced rolling functional components. In 2021, the company presided over the preparation of 4 national standards and 4 industry standards, and multiple products obtained national patents, China Machinery Industry Science and Technology Awards, and national key new product certificates.
