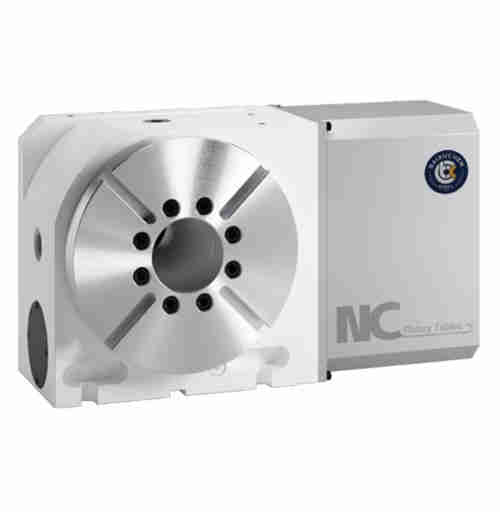

WT-255 Cnc Machining Center Accessories for Numerical Control Machine

Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-255Segmentation accuracy15 ″Disk DiameterΦ255mmRepeat positioning4 ″Center DiameterΦ80H7mmLocking Mode70kg.mSpindle HoleΦ80mmServo Motorβ8is;HF-154Cen......

Send Inquiry

Product Description

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

Product Model	WT-255	Segmentation accuracy	15 ″
Disk Diameter	Φ255mm	Repeat positioning	4 ″
Center Diameter	Φ80H7mm	Locking Mode	70kg.m
Spindle Hole	Φ80mm	Servo Motor	β8is;HF-154
Center Height	160mm	Speed Reduction Ratio	1:120
T-Slot Width	12H7mm	Maximun Speed	33.3r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	20.3kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	55Kg.m
Weight(Without Motor)	105Kg	Vertical	100KG
Horizontal	250KG	Tailstock applied	250KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
