WT-H630 Hot Selling Good Quality 860Kg China Cnc Machining Center Accessories Products

Horizontal tooth table Suitable for horizontal machining and horizontal boring machines hydraulic lock,Heavy-duty cutting non-simultaneous machiningProduct ModelWT-H630Servo motor1FK7083 α22iPanel Size630×630Total Reduction Ratio1:180Disk ApertureΦ55mmMaximum Rotation Speed Of Worktable11r.p.mF......

Send Inquiry

Product Description

Horizontal tooth table Suitable for horizontal machining and horizontal boring machines hydraulic lock,

Heavy-duty cutting non-simultaneous machining

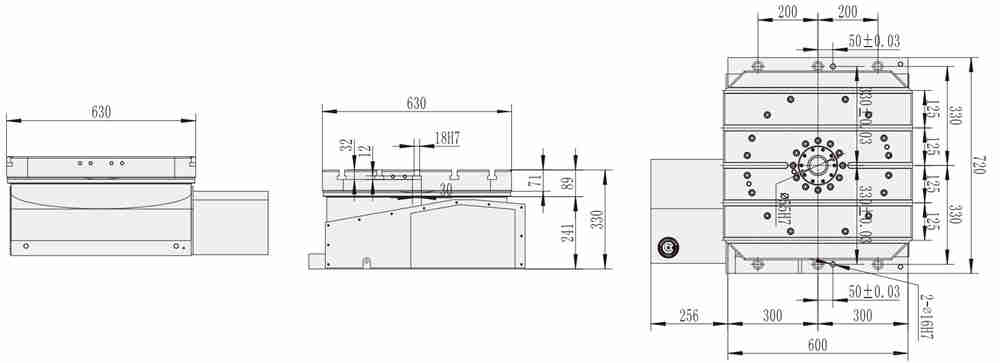

Product Model	WT-H630	Servo motor	1FK7083 α22i
Panel Size	630×630	Total Reduction Ratio	1:180
Disk Aperture	Φ55mm	Maximum Rotation Speed Of Worktable	11r.p.m
Flat Overall Height	330mm	Minimum Setting Angle	1°/5°
Disk T-Slot	18H8mm	Segmentation Accuracy	8″sec
Positioning Button	14H7mm	Repeat Positioning Accuracy	2″sec
Center Height	255mm	Locking Method	35Kg/cm²
Net Weight (about)	860Kg	Locking Force	6000Kg
Max.load Horizontal	1200KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
