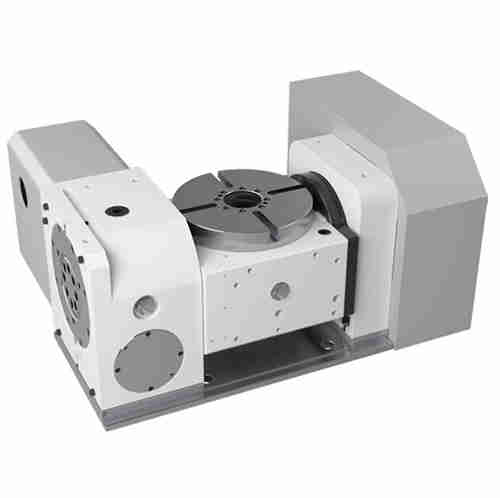

WT-S200 New Arrival Latest Design China Metal Industrial 5 Axis Cnc Machining Center Accessories

High precision, high performance, high efficiency Five axis machining, modular designOptional fixture oil circuit, Optional hydraulic brakeProduct ModelWT-S200Servo motor (optional)β4i HF-54;β8i HF-104Panel SizeΦ200mmReduction Ratio1:90 ;1:90Disk ApertureΦ55mmMaximum Rotation Speed Of Worktable 55.5......

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

Product Model	WT-S200	Servo motor (optional)	β4i HF-54;β8i HF-104
Panel Size	Φ200mm	Reduction Ratio	1:90 ;1:90
Disk Aperture	Φ55mm	Maximum Rotation Speed Of Worktable	55.5r.p.m ; 55.5r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	247.5mm	Segmentation Accuracy	20″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	14H7mm	Locking Method	5Kg/cm²; 5Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	31Kg/m ; 31Kg/m
Net Weight (about)	155Kg	Allowable Cutting Force	18Kg.m ; 18Kg.m
Horizontal placement	80KG	Placement	50KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
