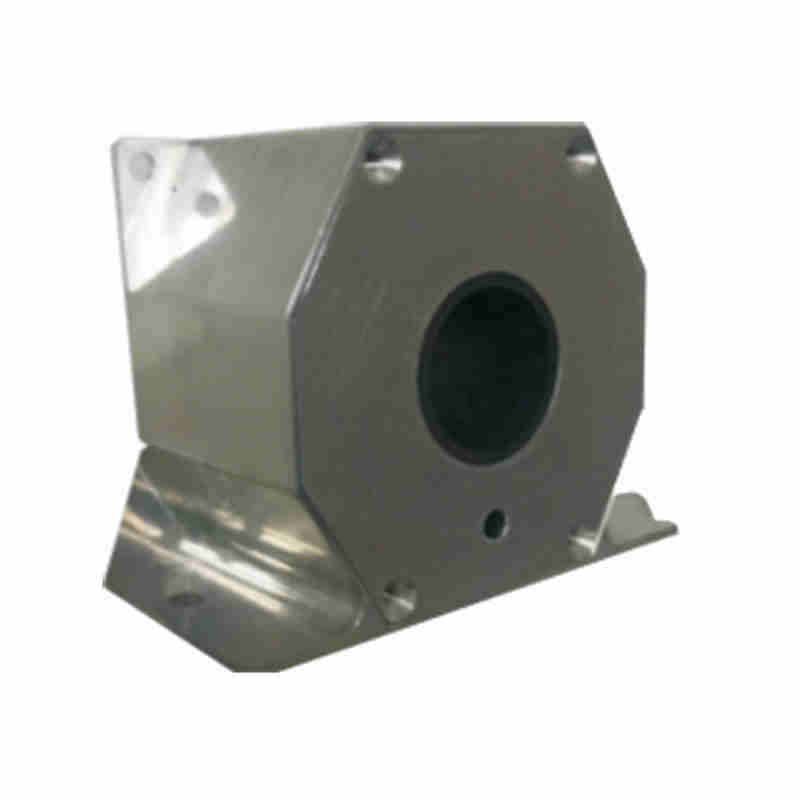

SITDP Series anti-interference high-precision magnetic balance current sensor for chopper, variable frequency speed regulator

Based on the principle of electromagnetic conversion effectHigh-precision, high-reliability output, fast response to various output currents and voltages,Strong resistance to external magnetic field interferenceGood long-term stability, no accumulated errorModelSITD200PSITD300PSITD500PSITD600PPrimar......

Send Inquiry

Product Description

Based on the principle of electromagnetic conversion effect

High-precision, high-reliability output, fast response to various output currents and voltages,

Strong resistance to external magnetic field interference

Good long-term stability, no accumulated error

Model	SITD200P	SITD300P	SITD500P	SITD600P
Primary rated input current	0~±200A	0~±300A	0~±500A	0~±600A
Primary current measurement range	120%
Secondary side rated output current	±100mA	±100mA	±200mA	±200mA
Turns Ratio	1:2000	1:3000	1:2500	1:3000
Secondary rated output	±15V~±24V，24V~±28V
Current consumption	28＋ISmA
Accuracy	≤±0.5%
Linearity	≤±0.02%
Offset voltage	T=25℃，≤±25mV
Temperature drift	≤±0.08%/℃
Response time	≤3μs
Load resistance	≤10Ω
Tracking speed	≥100A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-55°C-85°C
Storage temperature	-55°C-105°C
Isolation withstand voltage	2~6kV/50Hz/1min×1mA
Outlet mode	lead wire

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
