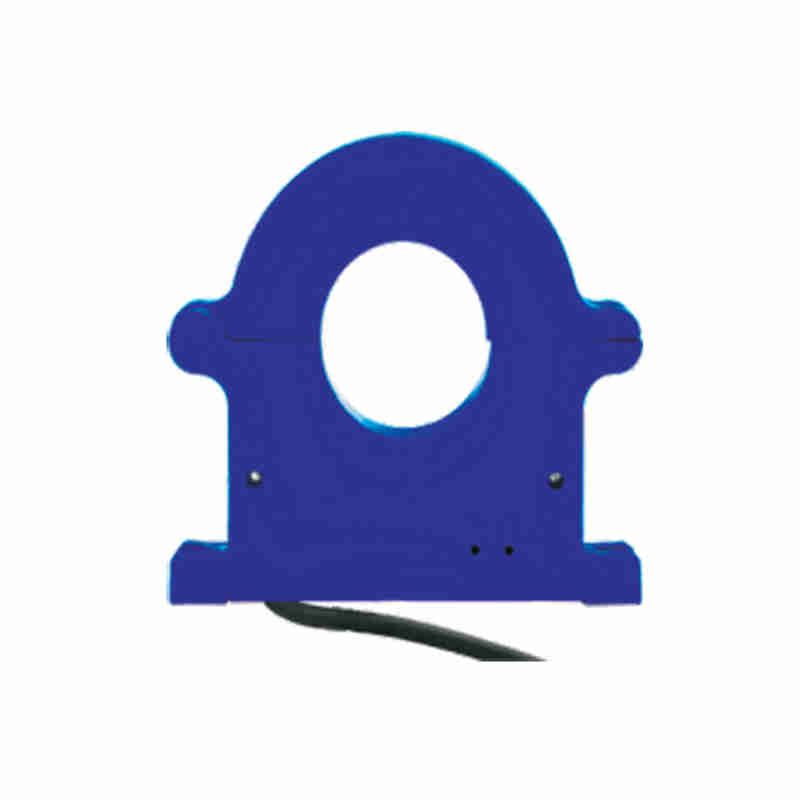

SIHM Series Waterproof Two-wire Current Sensor for Oil Wells

Send Inquiry

Product Description

Isolation conversion: Isolate the measured large current and convert it into a standard DC voltage signal with a linear proportional output to ensure safe and high-precision measurement. Temperature compensation circuit: Built-in temperature compensation circuit effectively controls the impact of temperature changes on measurement results and ensures consistency and stability under various environmental conditions. Low zero drift: Advanced design and manufacturing process are used to achieve extremely small zero drift to ensure measurement accuracy. Perforation input: Supports perforation input mode, easy installation and use, compatible with RVVP signal line, and simplified wiring

Model	SIHM1000KY-2	SIHM1500KY-2	SIHM2000KY-2
Input range	AC/DC0~1000A	AC/DC0~1500A	AC/DC0~2000A
Static power consumption	≤10mA
Output	DC4-20mA
Working power supply	DC24V
Accuracy	≤1%
Linearity	≤0.5%
Response time	≤250ms
Offset voltage	T=25℃，≤±10mV
Temperature characteristics	≤±0.08%/℃
Isolation withstand voltage	2.5kV/50Hz/1min*1mA
Overload capacity	2 times the current continuously, 30 times for 1 second
Flame retardant characteristics	UL94–V0
Working environment temperature	Temperature: -20℃~70℃, humidity: 20%~90% without condensation
Storage environment temperature	Temperature: -40℃~80℃, humidity: 20%~95% without condensation
Sealing, waterproofing	The product adopts fully sealed injection, and the internal PCB board has waterproof effect

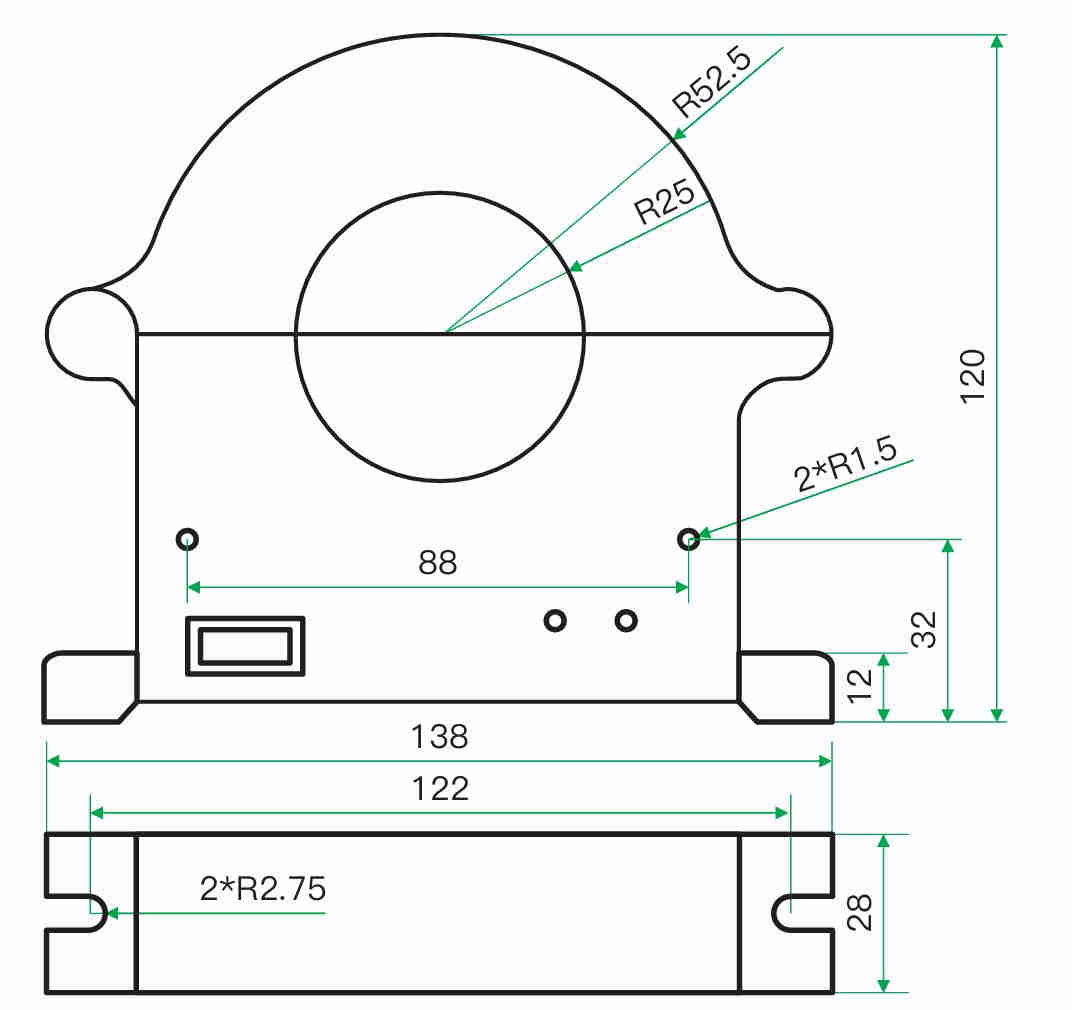

Installation	Screw-fastened flat surface installation
Application areas	Special products for oil logging industry

Model
Electrical Parameters
Measuring range
Range input	0~±600A	0~±800A	0~±1000A
Rated measuring output	± 200mA	±200mA	±200mA
Power supply voltage	±12V~±15V ±18V~±24V
Current consumption	±30mA (@±15V)
Turns ratio	1:3000	1:4000	1:5000
Accurate dynamic performance parameters
Accuracy	≤±0.05%
Linearity	≤±0.01%
Temperature drift	≤±10μA
Response time	≤1μs
Offset current	T=25℃, ≤±5μA
Band width	DC 100kHz
Load resistance	≤25Ω
Isolation withstand voltage	5kV/50Hz/1min×1mA

AC variable frequency speed regulation, servo motor, electrostatic conversion of DC motor traction, battery power supply, UPS uninterruptible power supply SMPS switching power supply, welding machine power supply, electric locomotive, power grid monitoring, electric drive ship, photovoltaic, wind power, Scanner, MRI
