High-precision SP2540 Heavy Cutting Double Column Machining Center CNC Lathe With FANUC/SIEMENS/MITSUBISHI

SP2540 Double Column Machining CenterThis series of column beam fixed double column machining centers adopts the international dynamic stiffness design concept to optimize the design of moving components based on the high stiffness, structural symmetry, and high stability of traditional double colum......

Send Inquiry

Product Description

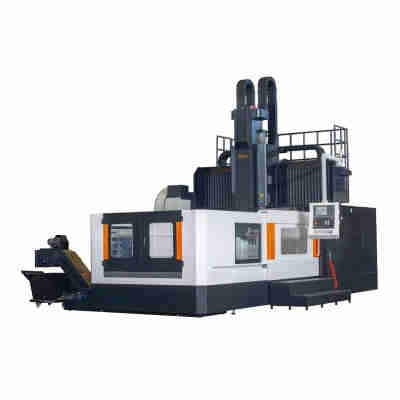

SP2540 Double Column Machining Center

This series of column beam fixed double column machining centers adopts the international dynamic stiffness design concept to optimize the design of moving components based on the high stiffness, structural symmetry, and high stability of traditional double column machining. This series of machine tools has the characteristics of high torque and fast feedback, which can meet the needs of mechanical processing fields such as automobiles, molds, aviation, and industry. This series of machine tools mainly consists of components such as base, workbench, column, crossbeam, saddle, hydraulic system, lubrication system, cooling and filtering system, chip cutting device, CNC system, etc.The SP2540 Double Column Machining Center is a cutting-edge machine tool that offers a wide range of advantages and finds applications in various industries. This machining center is designed to handle large and heavy workpieces with exceptional precision and efficiency. One of the key advantages of the SP2540 Double Column Machining Center is its robust and stable structure. The double column design provides excellent rigidity, minimizing vibrations and ensuring high accuracy during machining operations. This makes it ideal for applications that require precision, such as aerospace, automotive, and mold making industries. The SP2540 also offers a generous working envelope, allowing for the machining of large components. With its spacious worktable and extended X-axis travel, it provides ample space for accommodating oversized workpieces, making it suitable for jobs that involve machining large molds, dies, or structural components. Furthermore, the SP2540 is equipped with advanced CNC controls and a powerful spindle, enabling high-speed machining and multi-axis operations. It supports a wide range of machining processes, including milling, drilling, tapping, and contouring, providing versatility and flexibility in manufacturing complex parts. In addition to its precision and versatility, the SP2540 Double Column Machining Center offers enhanced productivity features. It incorporates automatic tool changers, tool length measurement systems, and chip conveyors, streamlining the machining process and reducing downtime. Overall, the SP2540 Double Column Machining Center combines a robust structure, high precision, a spacious working envelope, advanced capabilities, and improved productivity. These advantages make it an excellent choice for industries that require precise machining of large and heavy workpieces. Its applications span across aerospace, automotive, mold making, and various other sectors where high-precision and efficient machining are crucial.

Model		SP2230	SP2240	SP2260	SP2540	SP2560
Travel and processing range
X-axis travel	mm	3200	4200	6200	4200	6200
Y-axis travel	mm	2250	2250	2250	2900	2900
Z-axis travel	mm	1000	1000	1000	1000	1000
Distance from spindle nose to worktable	mm	250-1250	250-1250	250-1250	250-1250	250-1250
Distance from ground to workbench surface	mm	795	795	795	855	855
Distance between two columns	mm	2400	2400	2400	3000	3000
Staging
Workbench area (X-axis direction)	mm	3000	4000	6000	4000	6000
Workbench area (Y-axis direction)	mm	2000	2000	2000	2500	2500
Maximum load of workbench	kg	10000	12000	14000	16000	20000
Size and number of T-shaped grooves on the surface of the workbench (width * number of slots * spacing)	mm	2211160	2211160	2211160	2811200	2811200
Feed System
Rapid displacement (X-axis)	mm/min	10000	10000	10000	10000	10000
Rapid displacement (Y-axis)	mm/min	10000	10000	10000	10000	10000
Rapid displacement (Z-axis)	mm/min	10000	10000	10000	10000	10000
Main spindle
Main spindle power (continuous/30 minutes)	kw	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5
Maximum speed (vertical shaft)	rpm	6000	6000	6000	6000	6000
Spindle hole thrust	Nm	143	143	143	143	143
Spindle taper hole	#	50	50	50	50	50
Spindle cutting force	kgf	1800±10%	1800±10%	1800±10%	1800±10%	1800±10%
Main spindle bearing size	mm	7018	7018	7018	7018	7018

Fully metal protective cover (include 2pcs screw chip conveyor,1pcs chain type chip conveyor,water tank,pump),24T arm-type tool magazine

Equipped with oil chiller,cycle cooling
source for spindle unit and motor cabinet.

Hydraulic station,power source for balancing cylinder and spindle tool clamping and unclamping.

Lubrication station is controlled by
CNC system which can test and alarm
automatically.

Level test of cool liquid

Tool magazine has adjusting device

Spindle unit(Hydraulic tool clamping and unclamping)

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments*Production equipment*Gear hob*Insert gear hob*Gear hob*Worm gear hob*Involute spline hob*Triangular spline hob rectangular spline hob*Sprocket roller cutter*Circular arc gear hob*Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
