Product Description

Quick and easy installation

High precision, high reliability

Linear output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Good stability, no accumulated error

Model	-SIHD500KF3	SIHD1000KF3	SIHD1500KF3
Primary rated input current	DC500A	DC1000A	DC1500A
Primary current measurement range	120%
Secondary side rated output	DC0-5V，DC0-10V，4-20mA
Working power supply	±15V~±24V
Current consumption	28＋ISmA
Accuracy	≤1%
Linearity	≤0.5%
Offset voltage	T=25℃，≤±25mV
Temperature drift	≤±0.08%/℃
Response time	Transmission output ≤150ms, tracking output ≤10μs
Load resistance	Voltage output ≥ 2kΩ, current output ≤ 250Ω
Tracking speed	≥50A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	2~6kV/50Hz/1min×1mA

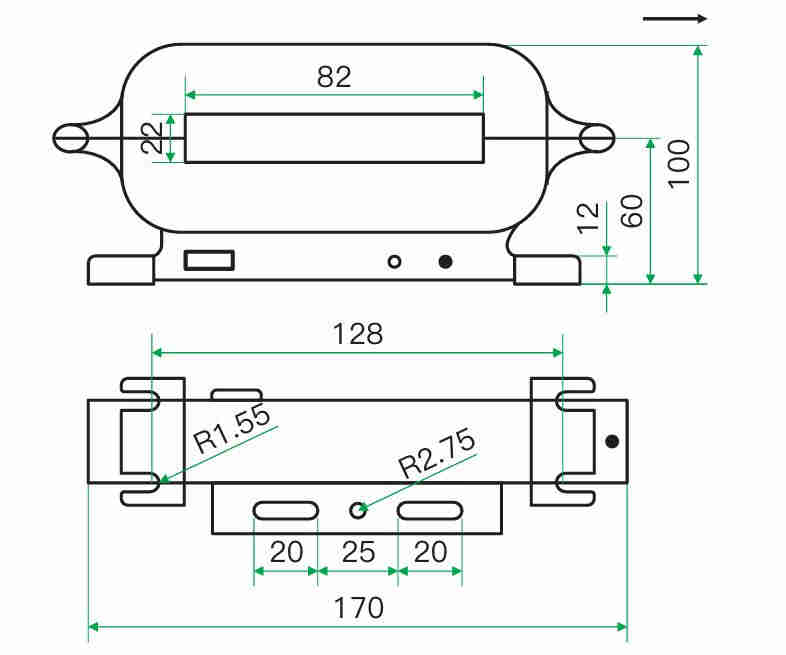

Install	Screw fixing Terminal wiring

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
