Corrosion Resistant SSRV090 Stainless Steel Worm Gearbox Customizable ODM Motor Drive Speed Reducer with Gear Wheel Reduction

Send Inquiry

Product Description

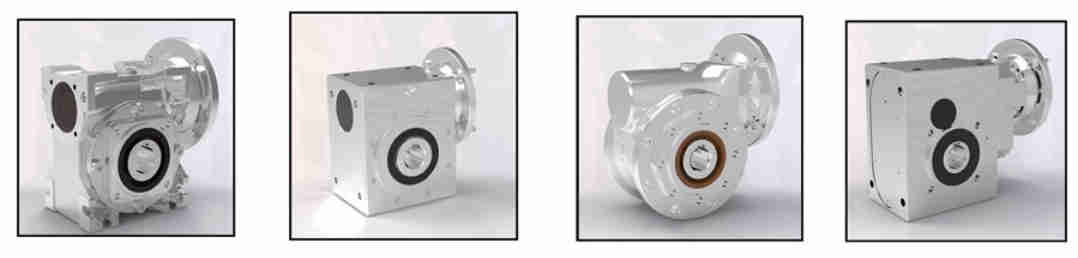

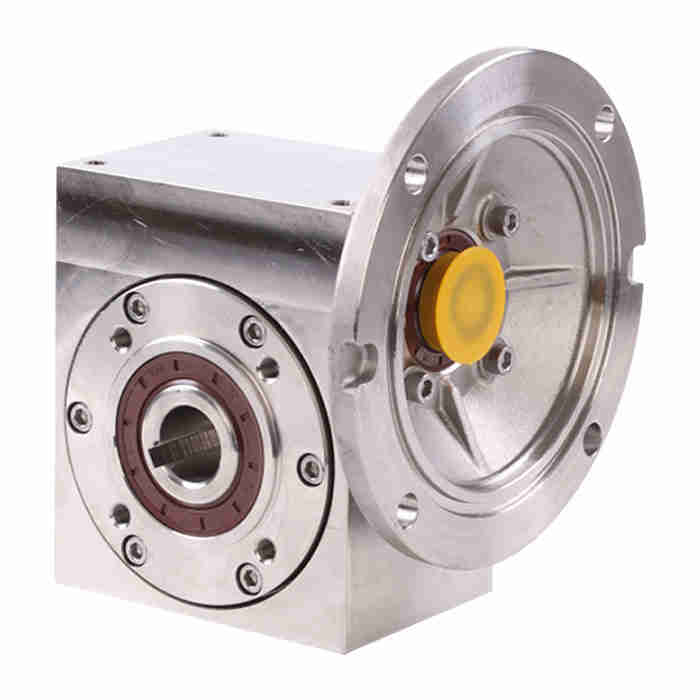

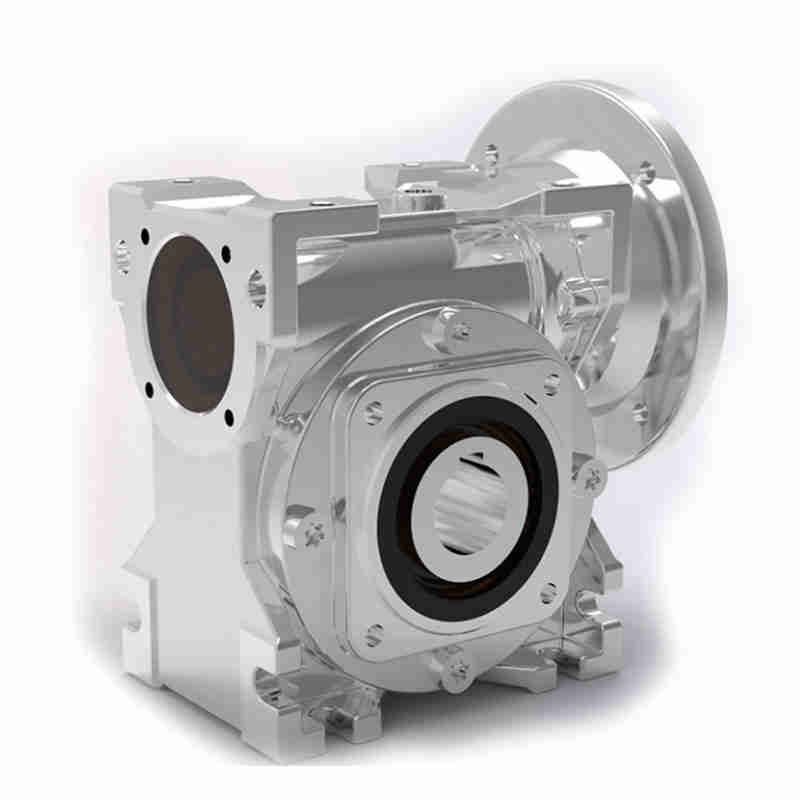

The EP-SSRV090 Stainless Steel Worm Gearbox is a series of gearboxes that share the same installation dimensions and selection as the NMRV gearbox. The only difference is that the EP-SSRV090 gearbox features a 304 precision cast flange housing and a 304 wheel core. The worm material is made of 12-2 tin bronze, and it uses fully synthetic worm gear oil. The surface of the gearbox is electrolytically polished, making it resistant to corrosion and easy to clean. With a wide range of speed ratios and high torque, this gearbox is suitable for multi-directional installation.

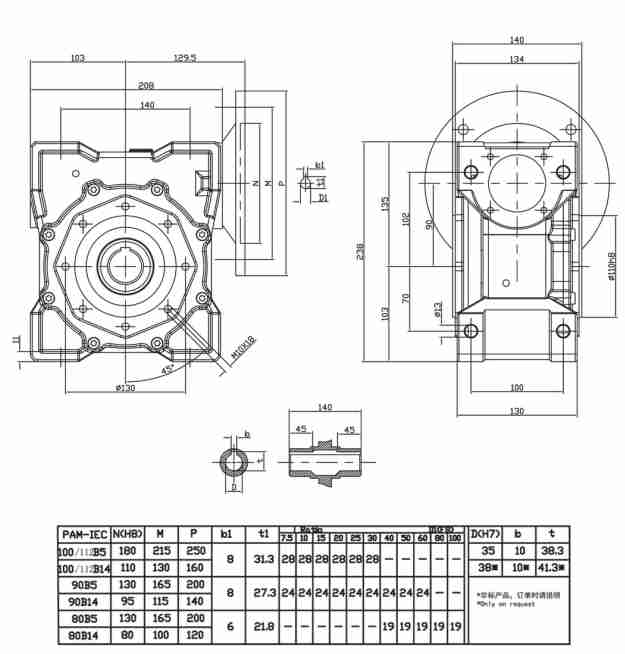

Installation Dimensions

Click here to contact us for more discounts!

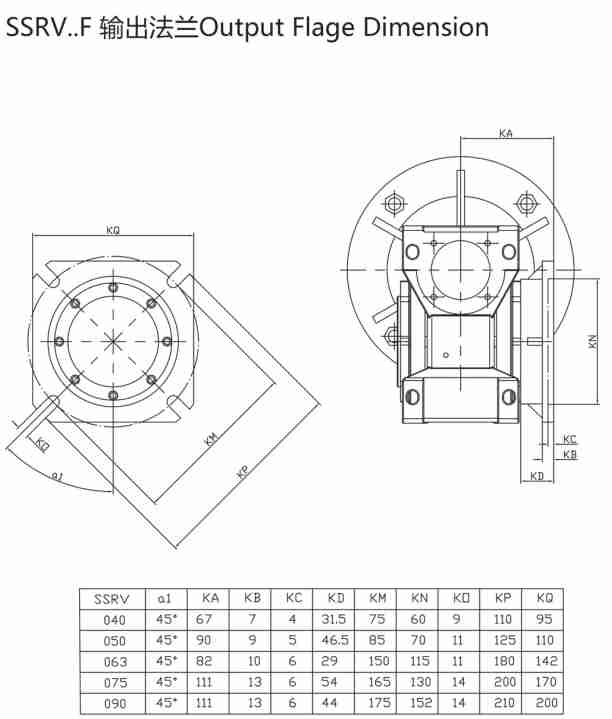

Ouput Flange Dimensions

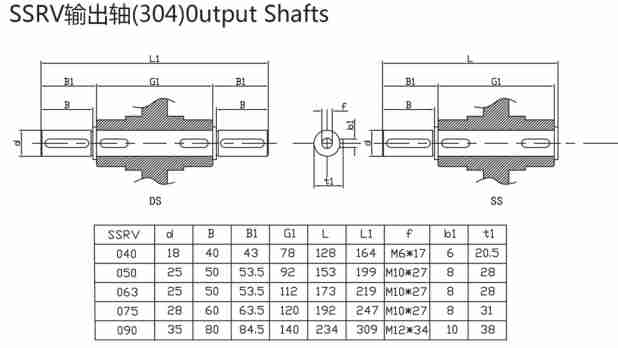

0utput Shafts

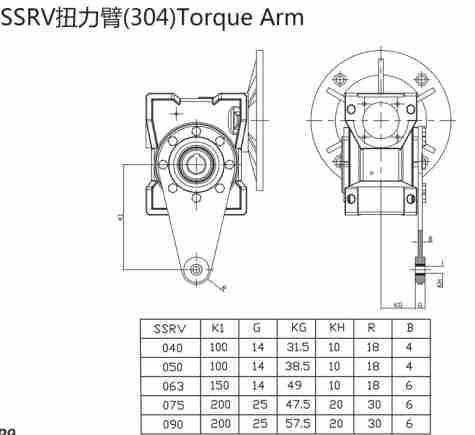

Torque Arm
