Product Description

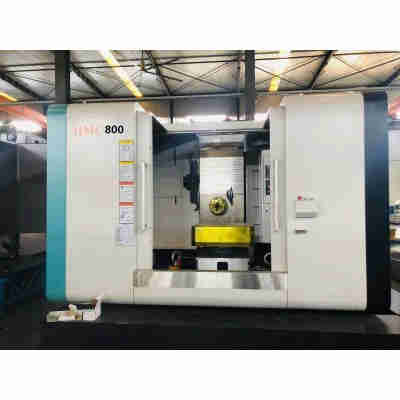

HMC800 horizontal machining center

The HMC800 Horizontal Milling Machine is a powerful and versatile machine tool designed for efficient and precise milling operations across various industries. Advantages: 1. High Precision: The HMC800 offers exceptional precision and accuracy, ensuring tight tolerances and superior surface finishes for the machined parts. 2. Rigidity and Stability: With its robust construction and rigid bed, the HMC800 provides excellent stability during heavy-duty cutting operations, minimizing vibrations and ensuring consistent results. 3. Versatility: This milling machine features multi-axis capabilities, allowing for complex machining tasks and accommodating a wide range of workpiece sizes and geometries. 4. High Productivity: Equipped with a high-speed spindle and an efficient tool change system, the HMC800 enables fast and efficient production, reducing cycle times and maximizing productivity. 5. Advanced Control System: The machine incorporates a user-friendly control interface, facilitating easy programming, operation, and monitoring of milling processes. Applications: The HMC800 Horizontal Milling Machine finds applications in various industries, including: 1. Automotive: It is used for milling engine blocks, transmission components, chassis parts, and other automotive components. 2. Aerospace: The HMC800 is employed to machine complex aerospace parts, such as aircraft structural components, landing gear parts, and turbine components. 3. Mold and Die Making: It is widely utilized for milling molds and dies used in plastic injection molding, die casting, and other molding processes. 4. General Machining: The HMC800 caters to a wide range of general milling applications, including milling, drilling, tapping, and contouring operations on various materials. In summary, the HMC800 Horizontal Milling Machine offers high precision, versatility, and productivity, making it a valuable asset in industries requiring complex and precise milling operations. Its applications span across automotive, aerospace, mold and die making, and general machining, providing reliable and efficient solutions for diverse manufacturing needs.

	HMC800	HMC800P	HMC1000	HMC1000P

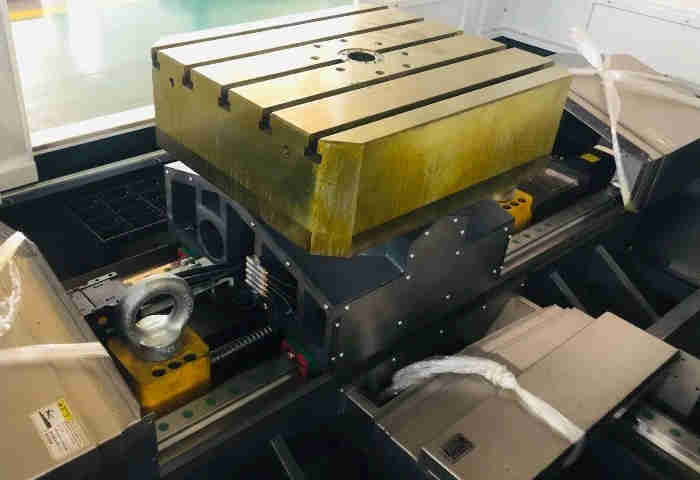

Workbench		Single pallet	Single pallet	Dounle pallets
Workbench size	mm	800x800	800x800	1000x1000
The maximum load-bearing capacity of the workbench	kg	1200	1200	1500
Number of workbenches		1	2	1
Table form	mm	24xM16 threaded hole	24xM16 threaded hole	24xM16 threaded hole
Distance from the centerline of the spindle to the workbench	mm	120 ~ 1120	0 ~ 1000	120 ~ 1120
Distance from workbench center to spindle end face	mm	200 ~ 1200	200 ~ 1200	200 ~ 1200
Workpiece rotation diameter	mm	Φ1750	Φ1200	Φ1750
Workbench indexing		1° x360 / 0.001°	1° x360 / 0.001°	1° x360 / 0.001°
Type of platform replacement structure		/	turn type	/
Workbench exchange time	s	/	58	/
3-Axis
stroke	mm	1600/1000/1000	1600/1000/1000	1600/1000/1000
Fast Moving Distance (XNY2)	m/min	24/24/24	24/24/24	24/24/24
B-axis fast movement speed	m/min	10	10	10
Main spindle
Main spindle power (basic configuration)	kw	18.5/22	18.5/22	18.5/22
Maximum speed (basic configuration)	rpm	6000	6000	6000
Spindle hole thrust		BT50	BT50	BT50
Main spindle inner diameter	mm	100	100	100
Positioning accuracy (national standard
positioning accuracy	mm	0.012(entire process)	0.012 (entire process)	0.012 (entire process)
Repetitive positioning accuracy	mm	0.008	0.008	0.008
B-axis indexing accuracy		12″	12″	12″
B-axis repeated indexing accuracy		6″	6″	6″
Tool magazine
Tool magazine capacity	T	24	24	24
Tool selection method		Two-way arbitrary
Tool change time	s	4.5	4.5	4.5
External dimensions
Length * width * height	mm	5500x4800x3250	7400x4800x3250	5550x4800x3250
Machine weight	kg	17000	21000	18000

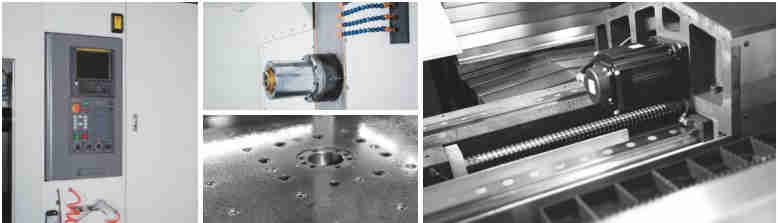

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy
