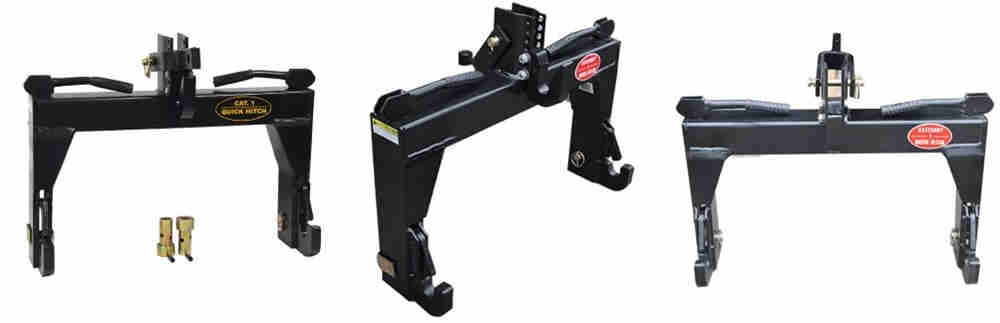

Low Price Guaranteed Quality 3 Point Quick Hitch for CAT 1 Tractors

Quick Hitch OverviewThis tractor hitch allows you to quickly and easily connect and release the three-point tool without leaving the tractor seat. This trailer hitch is designed for tractors up to 45 HP and has a four-position traction pin adjustment function. With antirust powder coating, this kind......

Send Inquiry

Product Description

Quick Hitch Overview This tractor hitch allows you to quickly and easily connect and release the three-point tool without leaving the tractor seat. This trailer hitch is designed for tractors up to 45 HP and has a four-position traction pin adjustment function. With antirust powder coating, this kind of knot can withstand harsh working conditions and almost any weather.

Designed for tractors under 45 hp Suitable for most tractors of categories 1, 2 and 3 Four-position pull pin adjustment Powder coated antirust paint ISO compliance

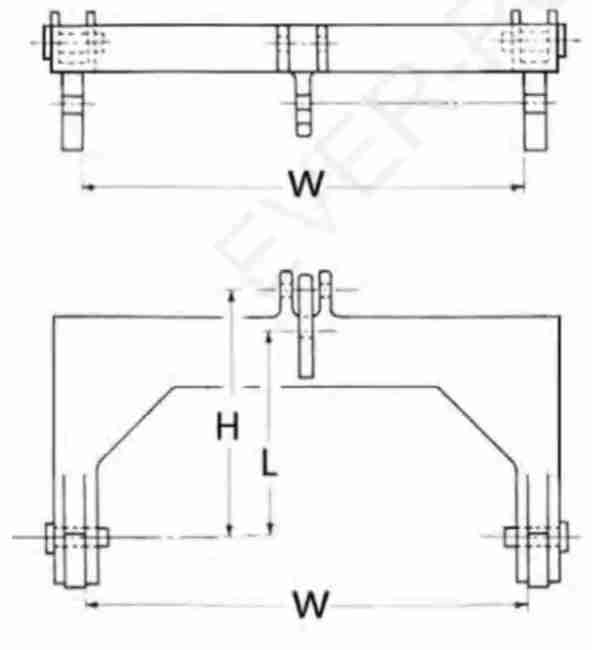

Category	Max HP	Width (W)	Lower Hook to Top Link (H)	Lower to Up-per Hook(L)	Weight(lbs)	SKU
Ⅰ	50	37.25	18.5	15-18.5	80	QHT001
Ⅱ	100	32.75	21.5	15	139	QHT002
Ⅱ HD	150	32.5	21.5	15	165	QHT002HD
Ⅲ	225	38.25	24.5	19	182	QHT003
Ⅲ Narrow	225	32.5	24.5	19	176	QHT003N
Ⅱ/Ⅲ	225	38.25	24.5	19	185	QHT023

What is a 3-point quick hook

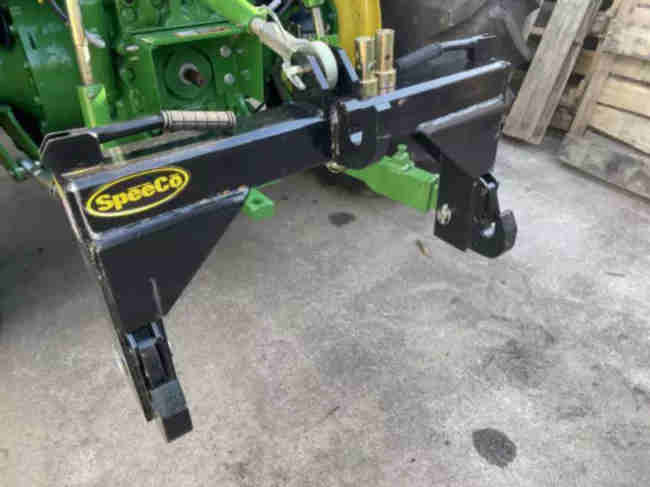

3-point quick hitch for Cat 1 tractors The tractor quick hitch is a necessary tool for any farmer or landowner who regularly operates the tractor. The quick hitch allows quick connection and removal of various implements that are normally towed or towed behind the tractor. A typical quick hitch consists of a front mounting bracket and a rear mounting linkage system that engages with a standard pin attached to the implement. The quick hitch is used to quickly connect and disassemble a series of common equipment, such as plough, cultivator, disc, spray and mower, each of which has its own pin connection. The equipment accelerates the connection and disassembly process, reduces downtime and improves productivity. The use of quick hitching tools can also help eliminate the need for workers to manually arrange and connect implements, which is not only time-consuming, but also potentially dangerous.

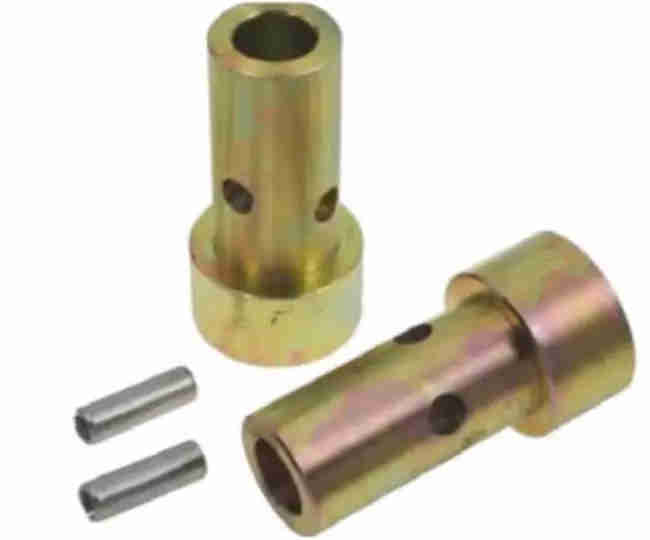

Lift arm bushing: the stage I and II sleeves are equipped with a set of lift arm bushings, which are installed on the tool and in the lower hook of the quick sleeve. The bushing kit is supplied separately from the sleeve.

Category	Inner diameter	SKU
Ⅰ	7/8”	QHT101
Ⅱ	1-1/8”	QHT102

About the 3-point quick hitch

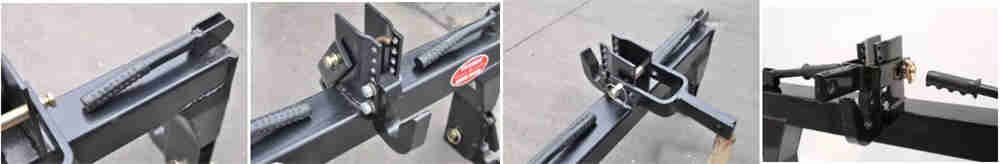

3-point quick hitch for Cat 1 tractors High compatibility: The quick tractor hitch has high adaptability with the loader, and is mainly applicable to Class 1 and Class 2 tractors. The three-point quick hitch allows you to easily connect the tractor to the loader in a few minutes, thus saving time and manpower. No drilling is required: the top hook of the quick hitch has a 5-level adjustable position, which can install most accessories. Therefore, welding is not necessary and the tractor will not be damaged. Instead, move your tractor back to the back of the adapter, hook the top link and connect the lower lift pin. Rigid alloy steel: The tractor's quick coupling device is made of alloy steel. Due to alloying elements, its strength is 25% - 50% higher than that of ordinary carbon steel. It has higher corrosion resistance than carbon steel under various atmospheric conditions. Reinforced structure: the heavy-duty reinforced three-point quick coupling device has stable structure and lifting capacity of 3080 pounds. The steel plates on both sides of the top hook are reinforced to a thickness of 0.16 ". In addition, triangular steel plates are welded on both sides to increase stability. Easy operation: the lower link above the quick coupling device, hydraulic and lever principle, saves manpower. Spring loaded lever for locking the lift. Both sides of the pin hook with limit function strengthen stability and improve safety.

How to install the three-point quick hitch for Cat 1 tractors

Installing the quick hitch usually involves the following steps: Positioning the machine: Move the machine to a flat and horizontal surface and position it to face the attachment. Adjust the quick hitch: Adjust the quick hitch according to the manufacturer's instructions to ensure that it matches the size and shape of the accessory you plan to use. Align the attachment: Carefully align the attachment with the quick hitch while maintaining a safe distance and securing it. Connect the quick hitch: After the quick hitch is aligned with the accessory, use the hydraulic system of the equipment to engage the locking mechanism and connect the quick hitch to the accessory. Test connection: Before starting to use the machine, thoroughly check the connection to ensure that the accessories are correctly fixed on the quick hitch and correctly assembled. Always follow the manufacturer's instructions carefully when installing the quick hitch. Before starting, please make sure that you are familiar with the working principle of the device and comfortable to use.
