Low Backlash Right Angle Servo Worm Reducer

Product DescriptionLow backlash Features :1,Worm gear gyration backlash can be adjusted to less than 1 arc.2,Reducer can be re-adjusted the gap after using.3,Input with coupling : reliable without backlash.4,Output using conical clamping ring couplings : reliable without backlash.5,Torque up to 7300......

Send Inquiry

Product Description

Low backlash Features :

1,Worm gear gyration backlash can be adjusted to less than 1 arc.

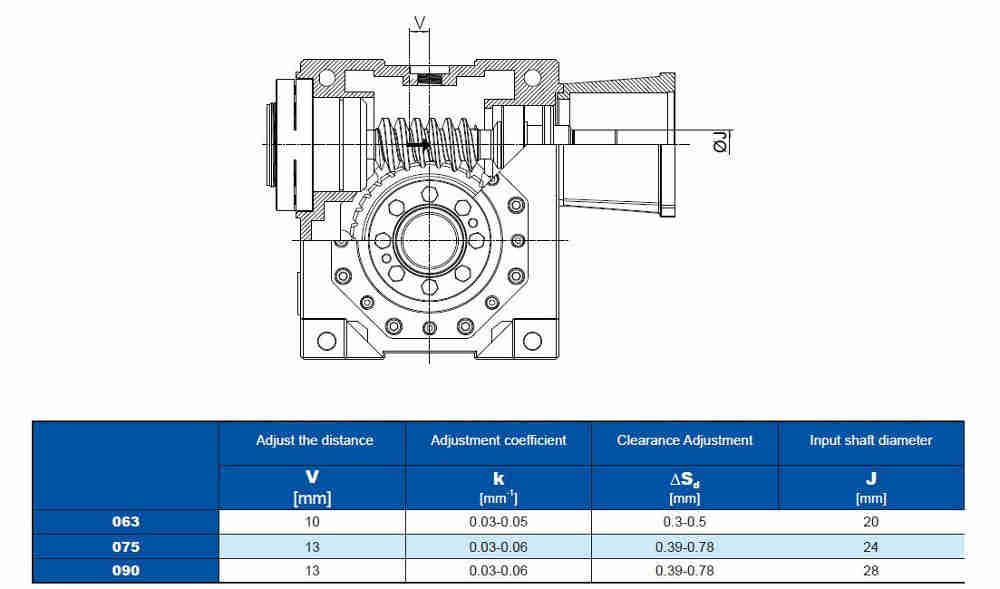

2,Reducer can be re-adjusted the gap after using.
3,Input with coupling : reliable without backlash.
4,Output using conical clamping ring couplings : reliable without backlash.

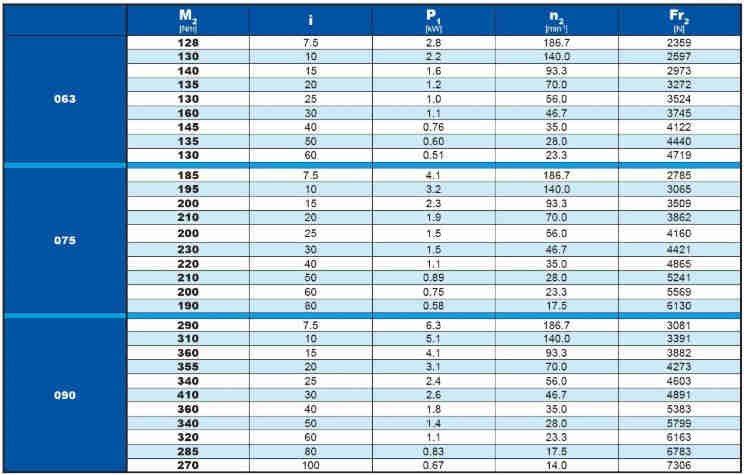

5,Torque up to 7300Nm.
6,With servo coupling input.
7,Shrink disc(optional) for easy intergration.
8,Dual lead worm drive.
9,The ideal solution to reduce costs in servomotor application instead of bevel planetary gearheads.

Available in 3 ranges of accuracy :

EXPERT : 1 arc minute of backlash
MEDIUM : 5 arc minutes of backlash
BASIC : 10 arc minutes of backlash

Precision rotary motion
1,Reducing the noise and vibration that is caused by the load change and the change of cutting force.
2,Reducing the noise and impact that is caused by the corotation and reverse.
3,By reducing worm abrasion.
4,Increasing worm output response speed.

Precision Indexing device
1,CNC machine, assembly line, cutting machine, transmission lines, etc.
2,Indexing device, accurate reading mechanism require accurate movement occasions.

Speed changing situations
1,Reducing the noise and the impact that is caused by speed change.
2,Reducing the worm abrasion that is caused by speed changes.

Compact Size and Light Weight
Application of modular system and scientific calculation minimizes the external size and weight of the main structure and standardized components are used for assembly. In particular, the upper and lower footrests are separated from the case so that they can be used only when necessary.

Convenient Mounting
Since the motor, reducer and driven machine are integrated in the hollow shaft type, gear coupling is not necessary for the input shaft or output shaft coupling. Worm speed reducer in hollow shaft can guarantee easy installation and related machine life through good alignment. The reorganized design enables universal installation. Flange, footrest for installation, torque arm, power lock, etc. can be installed in various ways.

High Efficiency and Precision
With over 30 years of accumulated technical theory and production experience, we are making precision gear reducer with pre-programmed maintenance for the latest equipments, comprehensive management for workers and thorough inspection of materials.

Low backlash worm reducer and zero backlash servo gearbox
