GIHR..DO Series Pneumatic and Hydraulic Systems Joint Rod End with Female Thread Locking Nuts

GIHR..DO Rod End BearingMaintenance required,with female thread and locking nuts--Rod body with left or right-hand female thread--It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing--With locking slot and nut--Rod end housing with a lubricating hole or grease ......

Send Inquiry

Product Description

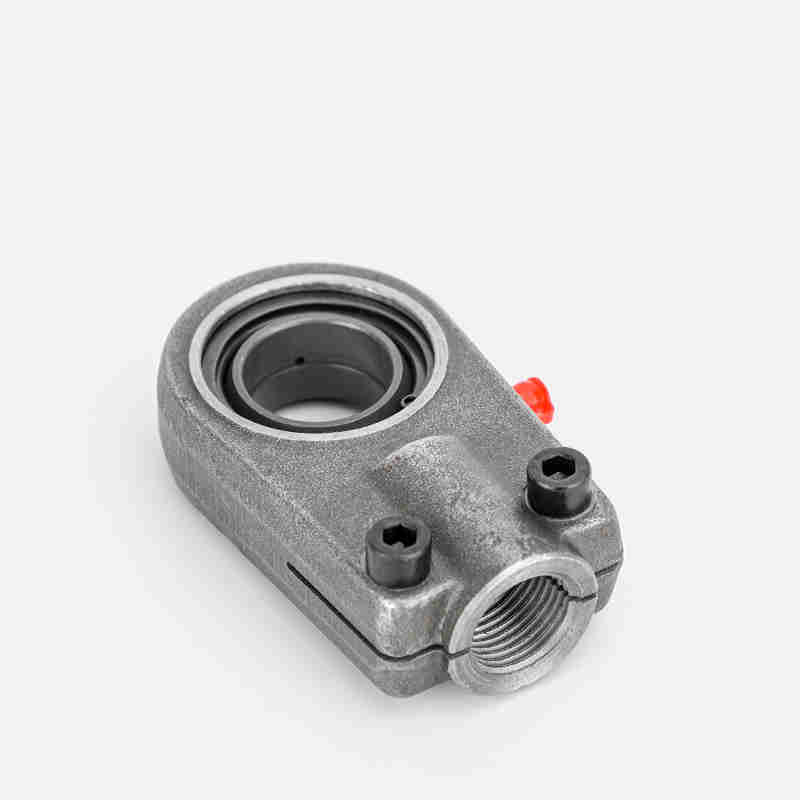

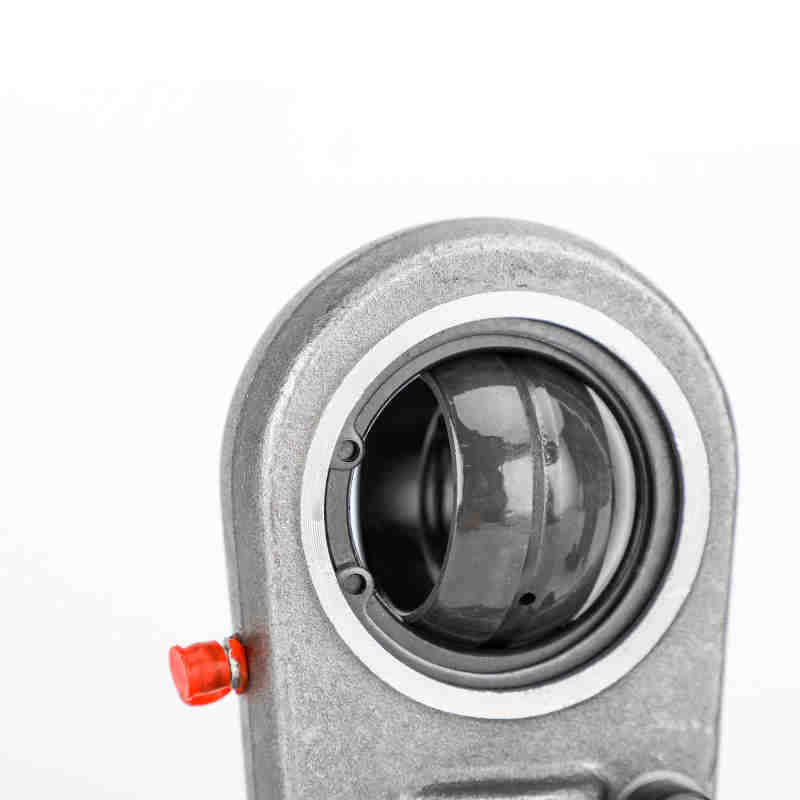

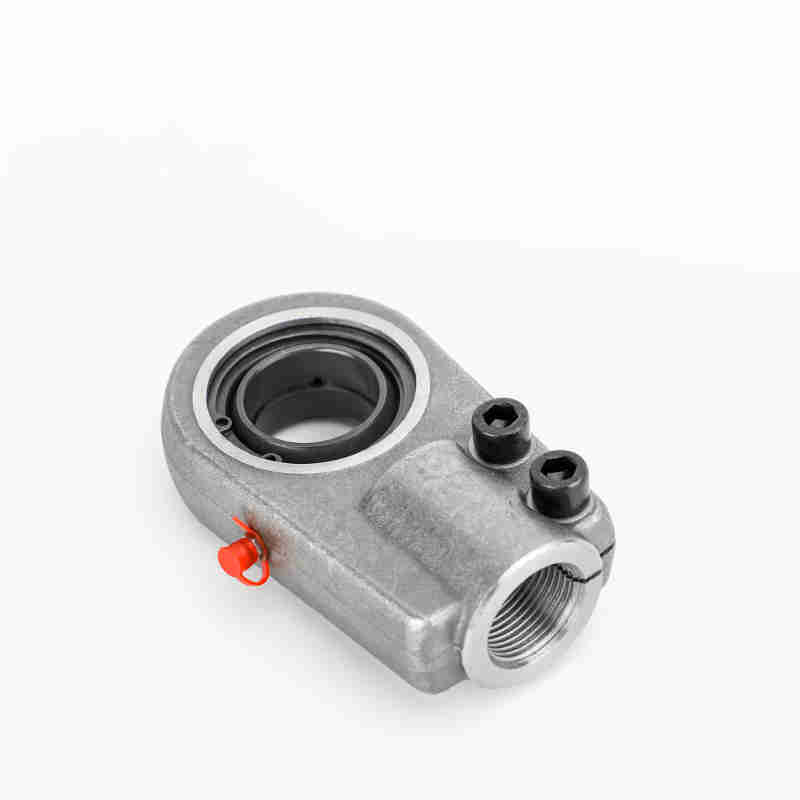

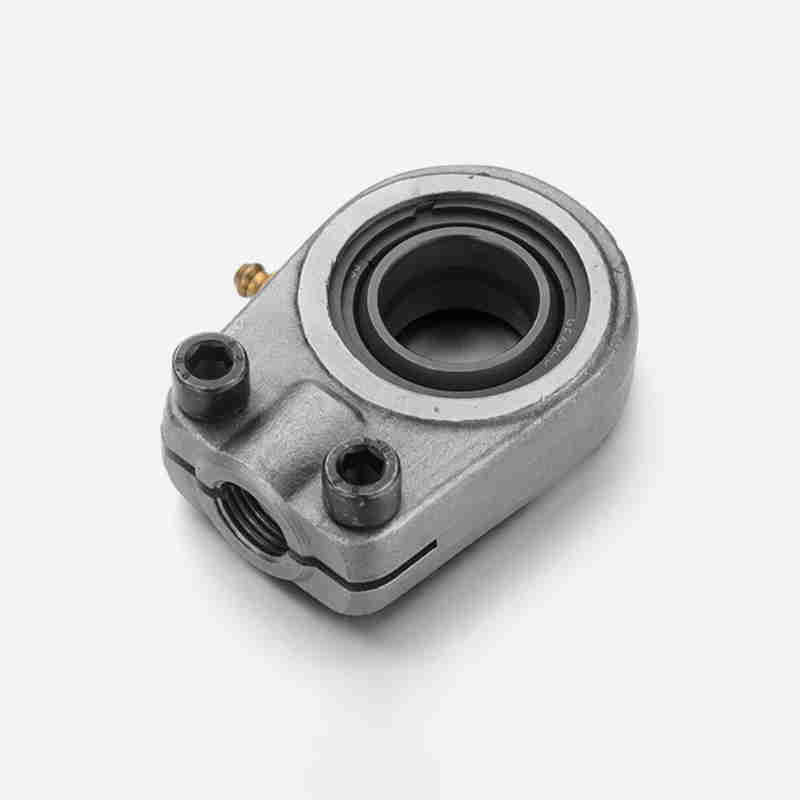

GIHR..DO Rod End Bearing

Maintenance required,with female thread and locking nuts

--Rod body with left or right-hand female thread

--It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing

--With locking slot and nut

--Rod end housing with a lubricating hole or grease nipple

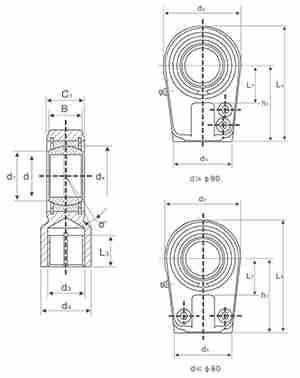

Part Number	Dimensions(mm)					Load ratings(KN)	Weight(g)
	d	d3	B	dyn.c	stat.c0
GIHR-K 20 DO	20	M16 × 1.5	19	30	72	430
GIHR-K 25 DO	25	M16 × 1.5	23	48	72	480
GIHE-K 30 DO	30	M22 × 1.5	28	62	106	740
GIHR-K 35 DO	35	M28 × 1.5	30	80	153	1200
GIHR-K 40 DO	40	M35 × 1.5	35	100	250	2000
GIHR-K 50 DO	50	M45 × 1.5	40	156	365	3800
GIHR-K 60 DO	60	M58 × 1.5	50	245	400	5400
GIHR-K 70 DO	70	M65 × 1.5	55	315	540	8500
GIHR-K 80 DO	80	M80 × 2.0	60	400	670	12000
GIHR-K 90 DO	90	M100 × 1.5	65	490	980	21500
GIHR-K 100 DO	100	M110 × 1.5	70	610	1120	27500
GIHR-K 110 DO	110	M120 × 1.5	80	655	1700	40500
GIHR-K 120 DO	120	M130 × 1.5	90	950	2900	76000

-GIHL -K 30 DO
-For left-hand thread ,please add surffix "L" ,e.g.GIHL -K 30 DO.
