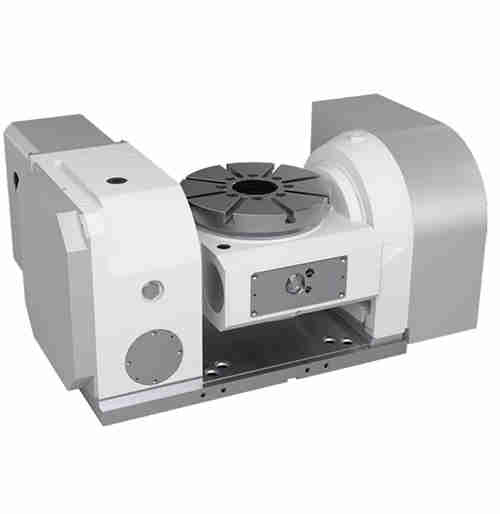

WT-S250 Hot Selling Cheap Custom 5 Axis Industrial Cnc Machining Center Accessories

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulicbrake mechanismProduct ModelWT-S250Servo motor (optional)β8i HF-104;β12i HF-154Panel SizeΦ250mmReduction Ratio1:120 ;1:120Disk ApertureΦ80mmMaximum Rotation Speed Of Worktable 33.3r.p.m ; 33.3r.p.mCenter Trou......

Send Inquiry

Product Description

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulicbrake mechanism

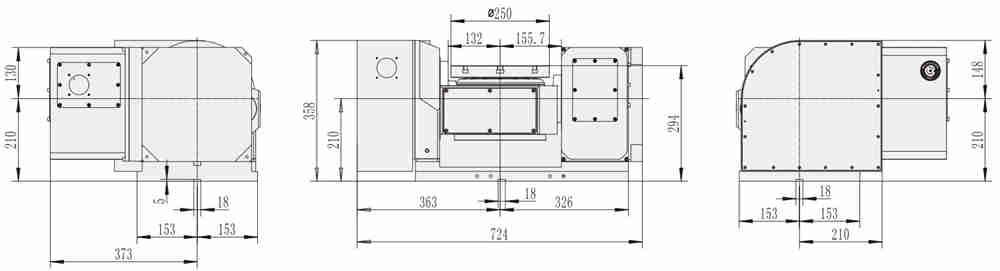

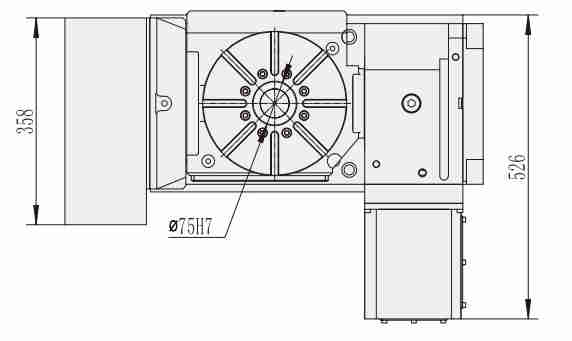

Product Model	WT-S250	Servo motor (optional)	β8i HF-104;β12i HF-154
Panel Size	Φ250mm	Reduction Ratio	1:120 ;1:120
Disk Aperture	Φ80mm	Maximum Rotation Speed Of Worktable	33.3r.p.m ; 33.3r.p.m
Center Trough Hole	Φ50mm	Minimum Setting Angle	0.001°deg
Disk Height	294mm	Segmentation Accuracy	15″sec;50″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;8''sec
Positioning Button	18H7mm	Locking Method	35Kg/cm²; 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	70Kg/m ; 140Kg/m
Net Weight (about)	290Kg	Allowable Cutting Force	55Kg.m ; 55Kg.m
Horizontal placement	100Kg	Placement	75KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
