Right Angle Worm Gear Reducer NMRV 063

Mounting DimensionThe products are widely applied in the producing equipments of all kinds of industries inside and outside China. They are the best choices for nowadays modern facilities of mechanical reducing drive control to realize large twisting distance, large gear ratio, little noise, high ef......

Send Inquiry

Product Description

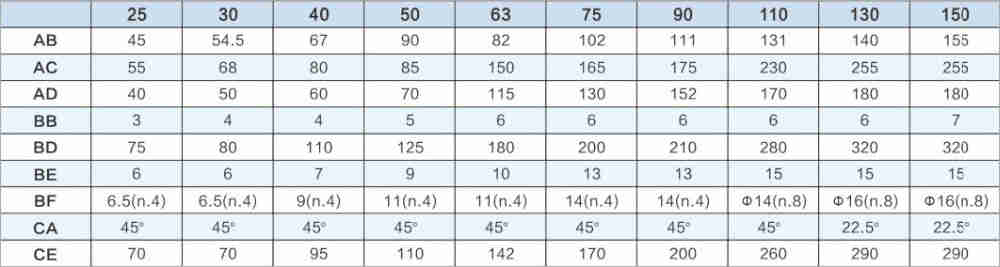

Mounting Dimension

The products are widely applied in the producing equipments of all kinds of industries inside and outside China. They are the best choices for nowadays modern facilities of mechanical reducing drive control to realize large twisting distance, large gear ratio, little noise, high efficiency and stability.

Model:	NMRV025, 030, 040, 050, 063, 075, 090, 110, 130, 150
Ratio:	1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue, Silver Or On Customer Request
Noise:	low noise (<50DB)
Advantage:	Efficient and safe operating
Material:	Housing: Die-Cast Aluminum Alloy
		Worm Gear-Bronze 9-4#
		Worm-20CrMnTi with carburizing and quenching, surface harness is 56-62HRC
		Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Bearing:	C&U Bearing
Seal:	NAK SKF
Certificate:	ISO9001,CE,3C,OEM
Warranty:	12 months
Input Power:	0.06kw, 0.09kw, 0.12kw, 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw
Usages:	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.
IEC Flange:	56B5, 56B14, 63B5, 63B14, 71B5, 71B14, 80B5, 80B14, 90B5, 90B14, 100B5, 100B14, 112B5, 112B14, 132B5, 160B5
Lubricant:	Synthetic & Mineral

Product Deseription

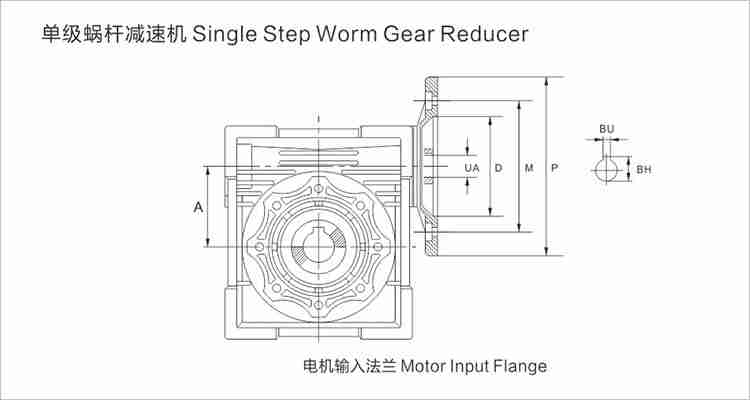

Single Step Worm Gear Reducer.

The reducer which model is 25~90 made of Aluminum alloy die-casting box,good looking in appearance,compact in structure,rust proofing on surface and small volume to save mounting space.
The reducer model of 110~150 is made of cast iron which casted with Aluminum mould.It`s good looking and solid, and can be used through the setting of multi-azimuth.
Good radiating characterstic leads safe and reliability,and high efficiency for using.
The strong capacity of loading ensure stable transmission,make less vibration and noise.
Varies of connecting structure for power input and torque output meet different require-merits;the design of box outline and the set of foot hole with good versality is apt to many kinds of mounting.

worm drive gearbox, worm gear box, worm reduction gearbox, worm gear motor, Aluminium Worm Gear reducer, light weight gearbox, NMRV speed reducerNMRV Worm Gear Reducers is a aluminum casing gearbox with self-locking and anti-back function, which widely used as transmission units in many light industrial field such like food machinery, chemicals machinery, packing, etc. The gearbox could be couple with AC electric motors as well as servo motors, and two worm gearboxes can be combined to get high ratio and low speed:-Flexible mounting positions capability;-NEMA and IEC motors input adapter flange;-Automated manufacturing process assures reliable quality;-Low temperature rise and noise because of good heat dissipation.-High efficiency up to 65% per stage, low temperature and work quietly;-High quality bearings, O-rings and Double-lip oil seals prevent leaking;-Standard hollow output bore and optional plug-in shafts provide greater flexibility;-Gearbox housings are made of aluminum alloy. beautiful appearance, light weight, non-rust forever;

The NMRV worm gearbox is new generation of products by our factory on the basis of perfecting WJ series products with compromise of advanced technology both at home and abroad.It's apprearance adopts advanced square box structure.It's outer body is made of high quality aluminium alloy die casting into forming.It's small in volume,light weight,high in radiating efficiency,large in output torque,smooth in running and low noise.It's suitbale for all positions.

Method for model chosen

Please understand the following at first in order to delect the model of RV speed reducer properly.

- Loading condition
- Speed scope or ratio in application
- Working condition and environment
- Installation space
