NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material

NHS Rod End Bearing--Rod body with left or right-hand female thread --Rod body pressed around inner ring --Outer race lined with PTFE composite material--Surface of rod body zinc plated * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenan......
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material

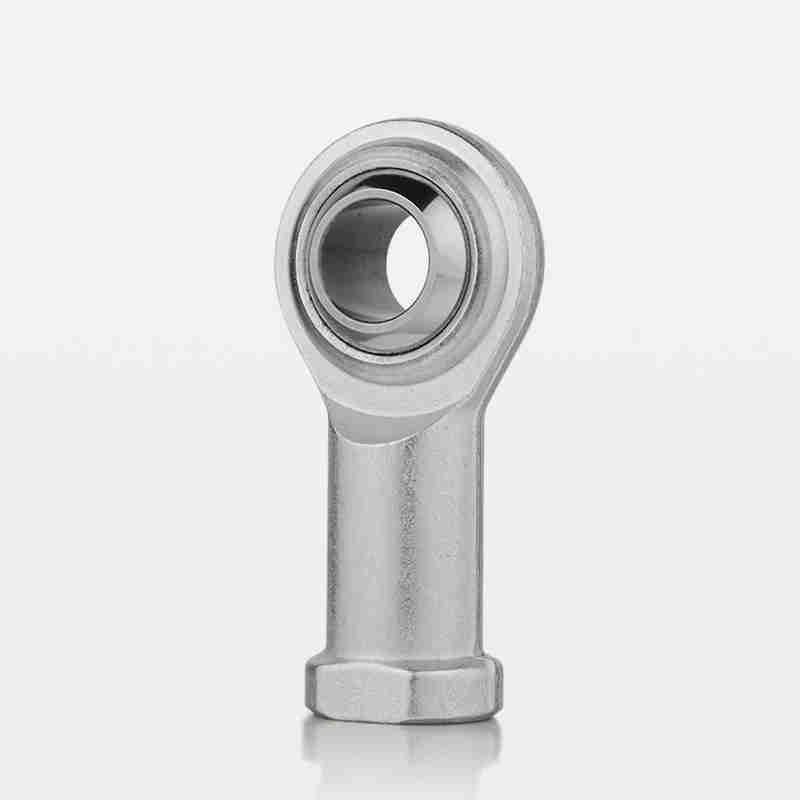

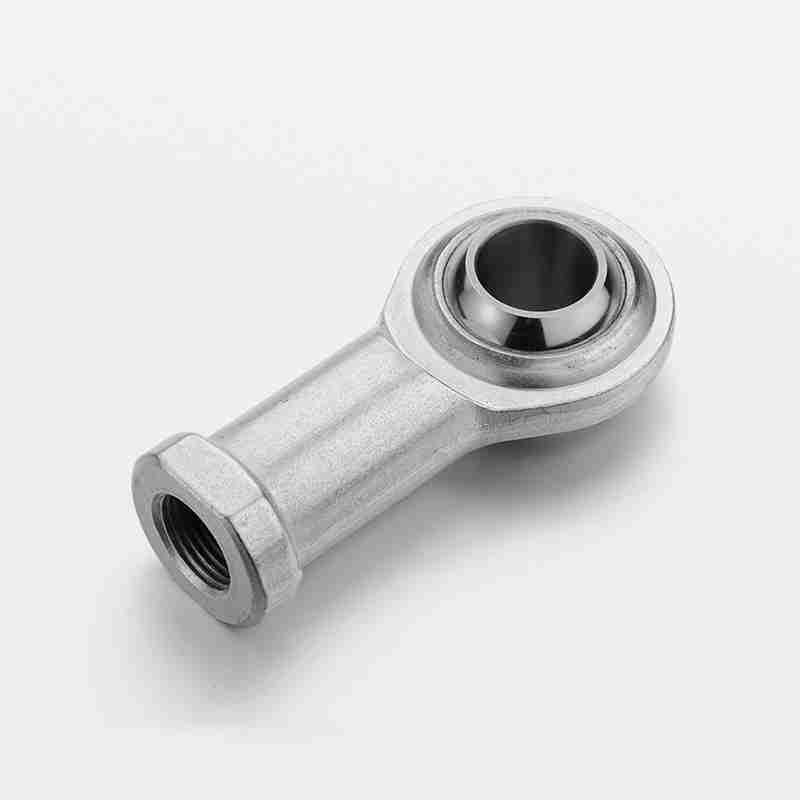

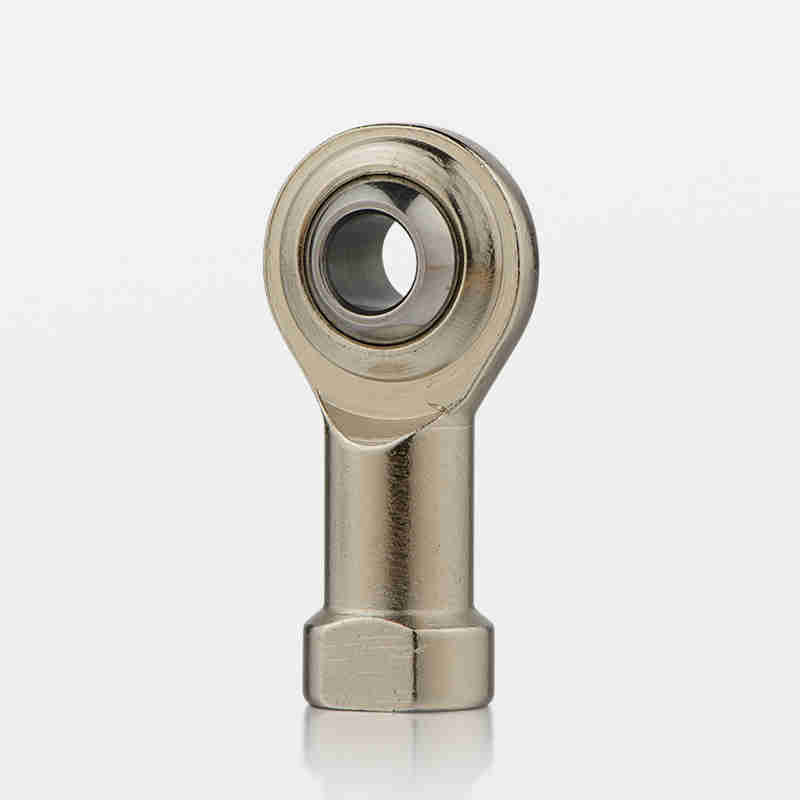

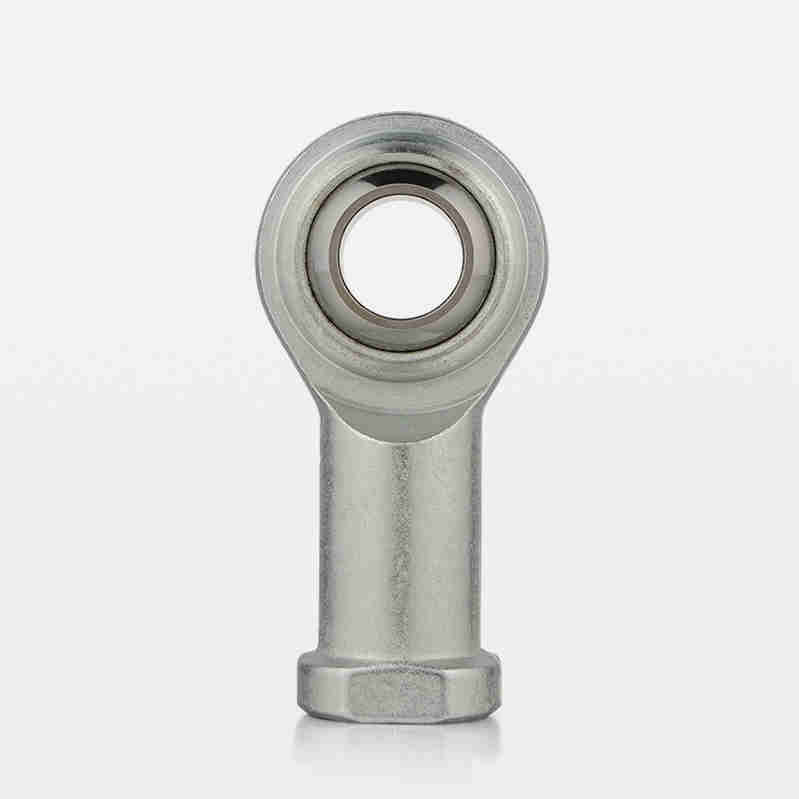

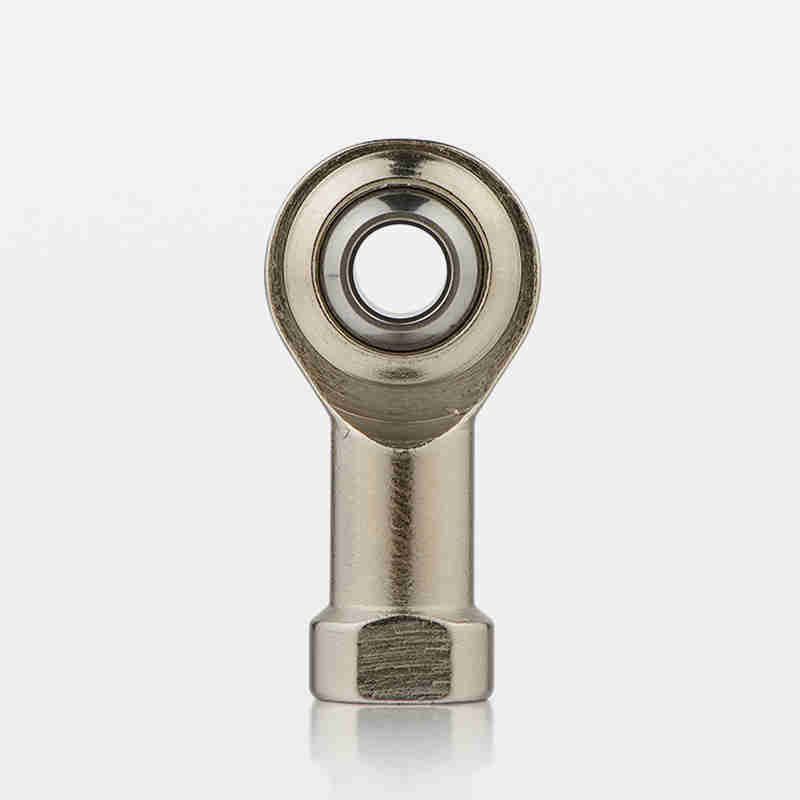

NHS Rod End Bearing
--Rod body with left or right-hand female thread
--Rod body pressed around inner ring
--Outer race lined with PTFE composite material
--Surface of rod body zinc plated

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material

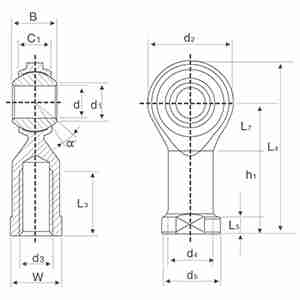

Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
d3
B
dyn.c
stat.c0
NHS 3
3
M3x0.5
6
1.7
2
10
NHS 4
4
M4x0.7
7
2.5
2.9
12
NHS 5
5
M5x0.8
8
5.7
6
16
NHS 6
6
M6x1.0
9
7.2
7.65
22
NHS 8
8
M8x1.25
12
11.6
12.9
47
NHS 10
10
M10x1.5
14
14.5
18
77
NHS 10-1
10
M10x1.25
14
14.5
18
77
NHS 12
12
M12x1.75
16
17
24
100
NHS 12-1
12
M12x1.25
16
17
24
100
NHS 14
14
M14x2.0
19
24
31
160
NHS 14-1
14
M14x1.5
19
24
31
160
NHS 16
16
M16x2.0
21
28.5
39
220
NHS 16-1
16
M16x1.5
21
28.5
39
220
NHS 18
18
M18x1.5
23
42.5
47.5
320
NHS 20
20
M20x1.5
25
42.5
57
420
NHS 22
22
M22x1.5
28
57
68
540
NHS 25
25
M24x2.0
31
68
85
720
For left-hand thread,please and surffix“L”,e.g. PHSL 8
If need the stainless steel material please to add “S”in front of the model for example:SPHS 8
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material
NHS Series Joint Rod End with Left or Right Hand Female Thread With PTFE Composite Material
Ever-power Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
