Motor Slide Rails

Raydafon Group's Motor Slide Rails offer seamless linear motion solutions with durable steel construction and precision engineering. Ideal for industrial automation and DIY projects, they enhance efficiency and reliability, delivering smooth operation and long-lasting performance. Upgrade your setup with our innovative rails today.

Send Inquiry

Product Description

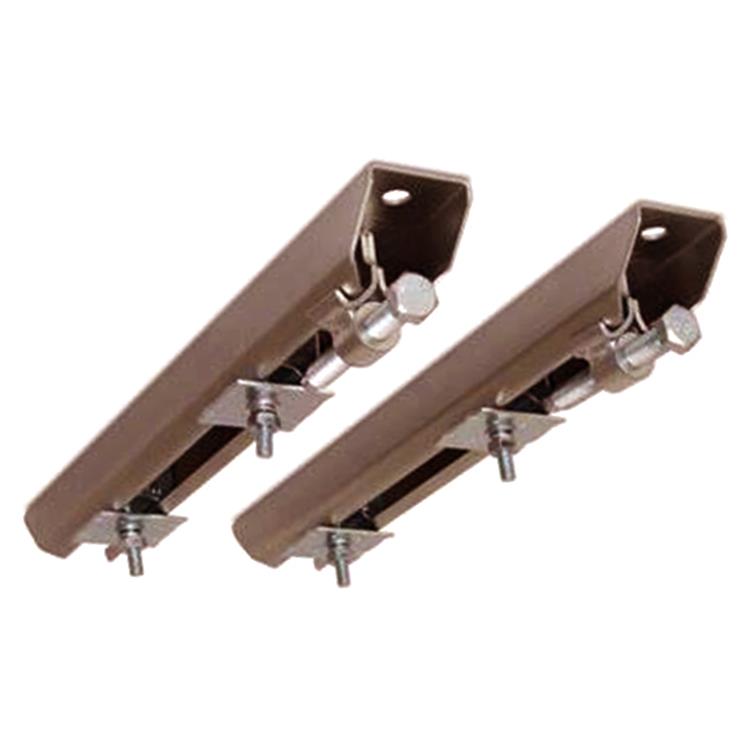

motor slide rails

Motor Slide Rails

Features:
(1) Suits for different types of motors
(2) Easy set up, unloading and usage
(3)Data could be supplied on request
(4)Several kinds of surface treatment obtainable: galvanized, color zinc, spray coated
(5) Special types could be produced according to drawings

Description:
Motor Base, MP Electric motor Base, China Motor Base
1Great quality with competitive prices.
2Prompt delivery
3International Approvals
4Characteristics: galvanization end, with monoplateslidng, bending and pressing.
China Motor base producer & exporter, we specialize in: Adjustable Motor Bases & Engine Mounts, Sliding electric motor bases, Motor Rails.

Applications:
Motor Base, MP Electric motor Base, China Motor Foundation is fixing and adjustment of large power motors.

Specification:
Motor Base,Engine Slide Base,Adjustable Engine Base,metal Motor Foundation,Metal Mount,Engine Slide,motor base plate,Sliding Motor Base,Motor Rail Track Series Electric motor bases,bases motor mounting motor slide,zinc plated,stainless steel motor slide base,electric motor base,Adjustable Engine Slide Base,Custom Made STAINLESS Flexible motor base,cnc machining motor base

Our OEM/ODM firm provides you what best fits your needs

Packaging Details
10 feet or 3.05 meters each strand, packed in plywooden case or pallet，We can also pack the chain according to request.
Delivery Time：45 times after received payment
Port:Shanghai/Ningbo port
Lead Time :45 days after received payment

Our service
We Can Provide You:
◆ On-period Delivery of a wide selection of products
◆ Exceptional item solutions and service
◆ Quality guarantee
◆ Local technical support
◆ Fast response to clients: Feedbacks in 24 hours
“Quality can be priority” Raydafon people generally attach great importance to quality controlling from the beginning to the finish. Our factory has gained CE, VB, SGS & ISO certificates.
Raydafon Transmission Group is an organization corporation manufacturering all sorts of transmission components. We have 3 factories and 2 abroad sales corporations.

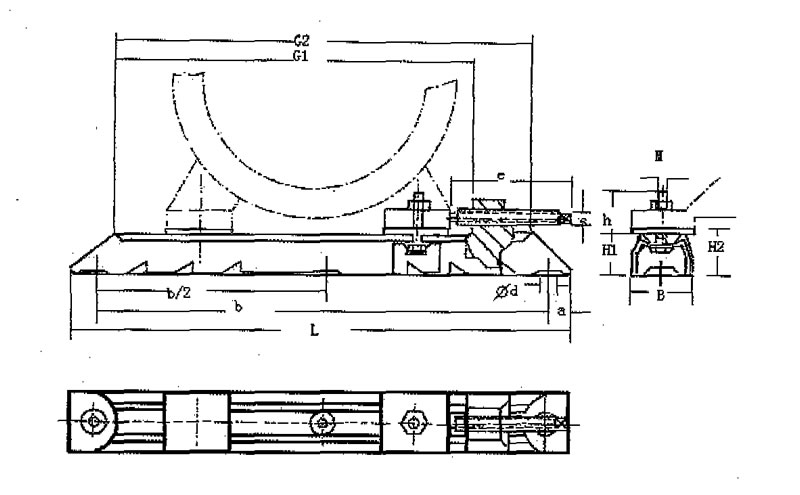

Type	Total length L	Stide Length G	Motor-type	Mxh	Exs	G2	a	b	b/2	D	B	H	H2	GW(kg)
312/6	312	240	63/71	M6*19	75*6	262	16	280	-	12	40	28	30	1.4
312/8	312	240	80/90	M8*27	75*6	262	16	280	-	12	40	28	30	1.5
375/6	375	305	63/71	M6*19	75*6	325	16	343	-	12	40	28	30	1.5
375/8	375	305	80/90	M8*27	75*6	325	16	343	-	12	40	28	30	1.6
375/10	375	305	100/112	M10*32	75*6	325	16	343	-	12	40	28	30	1.6
395/8	395	302	80/90	M16*28	97*8	325	20	355	-	12	50	40	43	3.4
395/10	395	302	100/112	M10*35	97*8	425	20	355	-	12	50	40	43	3.4
495/8	495	405	80/90	M8*29	97*8	425	20	456	-	12	50	40	43	4
495/10	495	405	100/112/132	M10*35	97*8	425	20	455	-	12	50	40	43	4
495/12	495	405	160	M12*49	97*8	425	20	455	-	12	50	40	43	4
530/10	530	413	132	M10*37	119*9	442	25	480	-	14	60	50	54	6.4
530/12	530	413	160	M12*49	119*9	442	25	480	-	14	60	50	54	6.4
630/10	630	515	132	M10*37	119*9	52	25	580		14	60	50	54	8.2
630/12	630	515	160/180	M12*45	119*9	542	25	580	-	14	60	50	54	8.2
686/12	686	538	160/180	M12*43	154*12	575	28	630	315	18	75	60	64	12.8
686/16	686	538	200/225	M16*62	154*12	575	28	630	315	18	75	60	64	12.8
864/16	864	700	200/225	M16*60	300*16	810	32	800	400	24	90	75	-	16.6
864/20	864	700	250/280	M20*68	300*16	810	32	800	400	24	90	75	-	16.6
1072/20	1072	865	250/280	M20*77	360*19	995	36	1000	500	30	112	100	-	33.4
1072/24	1072	865	315	M24*28	360*19	995	36	1000	500	30	112	100	-	33.5
1330/24	1330	1065	315/355	M24*95	430*21	1215	40	1250	625	30	130	125	-	56.6
