Low Price XK6132 Vertical Metal Working Cnc Knee-Type Milling Machine with Box Guideway

XK6132 Vertical metal working Cnc Knee-Type Milling MachineThe XK6132 CNC vertical knee joint milling machine is a mechanical equipment controlled by a CNC system with three axes, and the main spindle maintains high stiffness through gear transmission. This machine tool is equipped with face milling......

Send Inquiry

Product Description

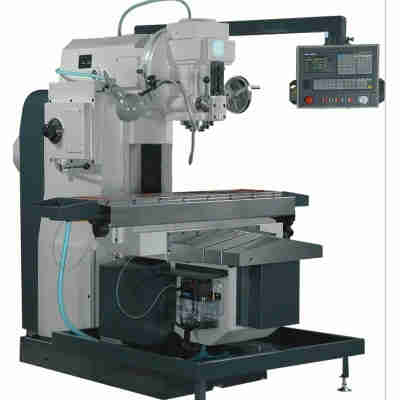

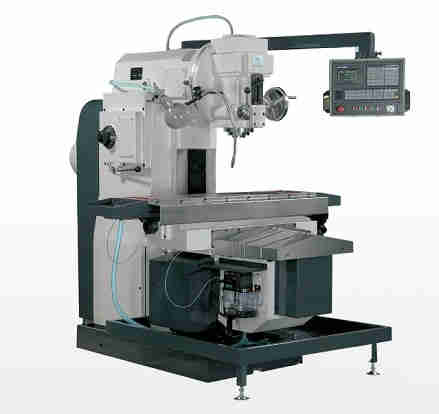

XK6132 Vertical metal working Cnc Knee-Type Milling Machine

The XK6132 CNC vertical knee joint milling machine is a mechanical equipment controlled by a CNC system with three axes, and the main spindle maintains high stiffness through gear transmission. This machine tool is equipped with face milling cutters, cylindrical milling cutters, side milling cutters, bevel milling cutters, and forming milling cutters, suitable for processing flat milling cutters, bevel milling cutters, slot milling cutters, and gear milling cutters on various workpieces. An operator can operate three machines simultaneously. Optional accessories such as turntable and indexing head are suitable for various processing. It is an ideal machine tool for processing technology, maintenance, instrumentation, and molds.

Item	Unit	XK6132	XK5025B	XK5030B	XK5328B
Worktable size	mm	320×1320	250×1100	300×1100	280×1270
T slot (N×W×D)	mm	3×18×80	3×14×63	3×14×63	3×16×63
Max. load bearing of worktable	kg	500	280	280	250
Travel of worktable (X/Y/Z)	mm	700/300/280	500/260/90	580/260/90	720/360/110
Spindle hole taper	mm	7:24 No.50	7:24 No.40	7:24 No.40	R8
Arbor diameter	mm	Φ22 Φ27 Φ32	/	/	/
Max. spindle quill travel	mm	\	90	90	100
Distance from spindle end to worktable surface	mm	110 ~ 390(spindle center)	70 ~ 430	70 ~ 430	40 ~ 480
Distance from vertical guideway to spindle center	mm	/	290	290	130 ~ 630
Distance from vertical guideway to worktalbe center	mm	285 ~ 585	160 ~ 420	160 ~ 420	220 ~ 580
Distance from spindle center to arm	mm	155	/	/	/
Spindle speed steps	strps	18	inverter	inverter	16
Spindle speed range	r/min	30 ~ 1500	200 ~ 2500	200 ~ 2500	80 ~ 5440
Main motor power	kw	7.5	4	4	2.2
Main motor rotating speed	r/min	960	5000	5000	1720
Feed speed range: Longitudinal X/Y/Z	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 1000
	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 1000
	mm/min	5 ~ 1000	5 ~ 800	5 ~ 800	5 ~ 400
Rapid feed speed range:Longitudinal X	mm/min	4000/3000/2000	3000/3000/1500	3000/3000/1500	3000/3000/1500
Positioning accuracy	mm/min	0.025/300	0.025/300	0.025/300	0.025/300
Re-positioning accuracy	mm	0.015	0.015	0.015	0.015
Machine dimension	mm	2245×1780×1920	1500×1470×1800	1500×1470×1800	1610×1600×2200
Machine weight	kg	3100	1800	1800	1500

The XK6132 Vertical Knee-Type Milling Machine is a versatile machine tool that is commonly used for precision milling operations on various workpieces. It finds applications in several industries that require accurate and efficient metal machining. Here are some typical applications of the XK6132 milling machine: 1. General Metal Machining: The XK6132 is well-suited for general metal machining tasks. It can mill flat surfaces, drill holes, create slots, and machine various metal components with precision and repeatability. It is widely used in workshops and manufacturing facilities for everyday metalworking operations. 2. Tool and Die Production: The XK6132 milling machine is commonly used for tool and die production. It can machine tooling, dies, and molds used in metalworking processes. With its stability and accuracy, it enables precise machining of intricate features and tight tolerances required in the production of tooling and dies. 3. Automotive Industry: In the automotive sector, the XK6132 is often employed for manufacturing metal components such as engine blocks, cylinder heads, transmission parts, and chassis components. Its versatility, accuracy, and robust construction allow for efficient and precise machining of automotive parts. 4. Aerospace Industry: The XK6132 milling machine finds applications in the aerospace industry for machining various components, including engine parts, structural elements, and aircraft parts. Its high precision, stability, and ability to handle heavy-duty cutting make it suitable for machining critical aerospace components. 5. Job Shops: The XK6132 milling machine is commonly found in job shops that handle diverse metal machining tasks. It can accommodate a wide range of projects and meet different customer requirements, making it a reliable and flexible machine for job shop environments. 6. Education and Training: The XK6132 is also used in educational institutions and training centers for teaching and learning purposes. It allows students and trainees to practice and develop their milling skills while familiarizing themselves with the operation and control of a knee-type milling machine. It's important to note that the specific applications of the XK6132 Vertical Knee-Type Milling Machine may vary depending on the industry, customer needs, and the availability of additional tooling and accessories.

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.

Optional accessories at extra cost(For conventional machines)

System and tool magazine

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
