LM500/BP850 Metal Cutter CNC Vertical Universal Grinding Lathe Machining Center Machine Tool

LM500/BP850 CNC Vertical Universal Grinding MachineLM500 / 850 high precision vertical complex grinders are perfect for the IDOD , faces and counter faces . Thanks to double station design , the waiting timeis largely shortened . The grinding process is no longer depended onoperators skills to reali......

Send Inquiry

Product Description

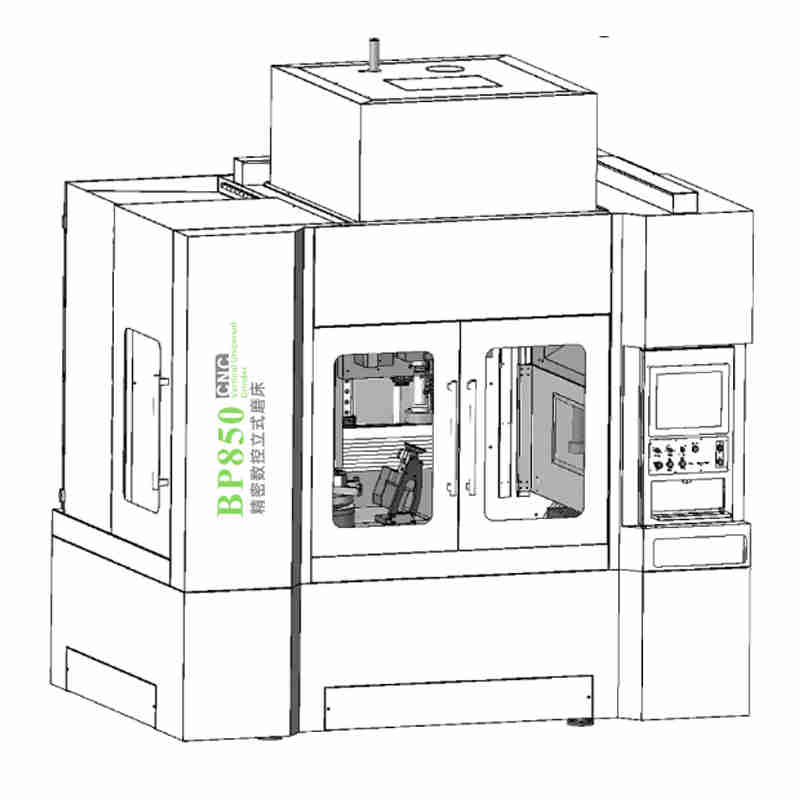

LM500/BP850 CNC Vertical Universal Grinding Machine

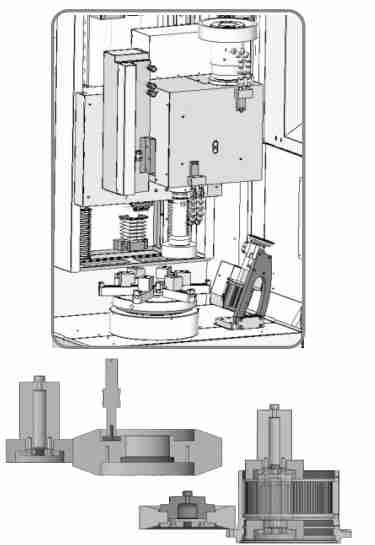

LM500 / 850 high precision vertical complex grinders are perfect for the IDOD , faces and counter faces . Thanks to double station design , the waiting timeis largely shortened . The grinding process is no longer depended onoperators skills to realize perfect perpendicularity and concentricity

1.high rigidity OD grinding spindle guarantee stable grinding performance ;

2.+ 30 . ID grinding spindle and 45 OD grinding spindle with any angle positioning function optional for high efficiency and high precision grinding

3.OD grinding spindle accessible for straight wheel and inclined wheel forworkpiece with various profile and diameters and higher efficiency for facgrinding than cup wheels .

4.Optional natural granite provides excellent vibration absorptionerformance and temperature stability .

5.high precision positioning realized by rotating encoder and servo motor , forstraight face and inclined faces grinding without changing wheels

Grinding capacity			Grinding capacity
workpiece internal hole grinding rage	40-300/600mm	Roundness	0.002mm
workpiece internal hole grinding length	220/350mm	Coaxiality	0.003mm
workpiece grinding max hole diameter	350/850mm	Cylindricity	0.003mm
max workpiece grinding length	250/500mm	Perpendicularity	0.003mm
Travel			Rouahness	Ra0.4um
X Axis	320/850mm	Positioning accuracy	0.0035mm
Y Axis	360/750mm	Re-positioning accuracy	0.0025mm
Rotary axis(C axis)			Connected Loading
max speed	300rpm	380V / 50HZ	40kw
Measurement system	renishaw/XF	Size
Controller	BP/SYNTEC	LengthWidthHeight	200018002000mm
		Weight	7500kg

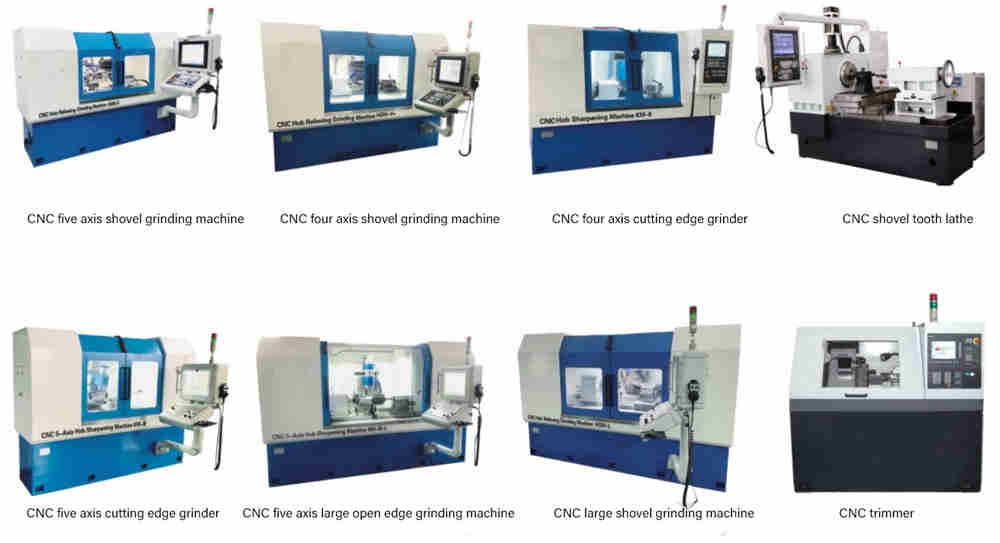

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

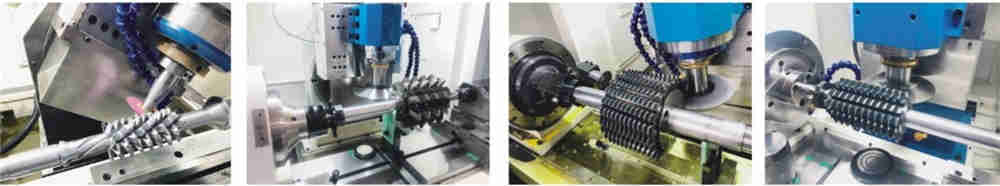

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

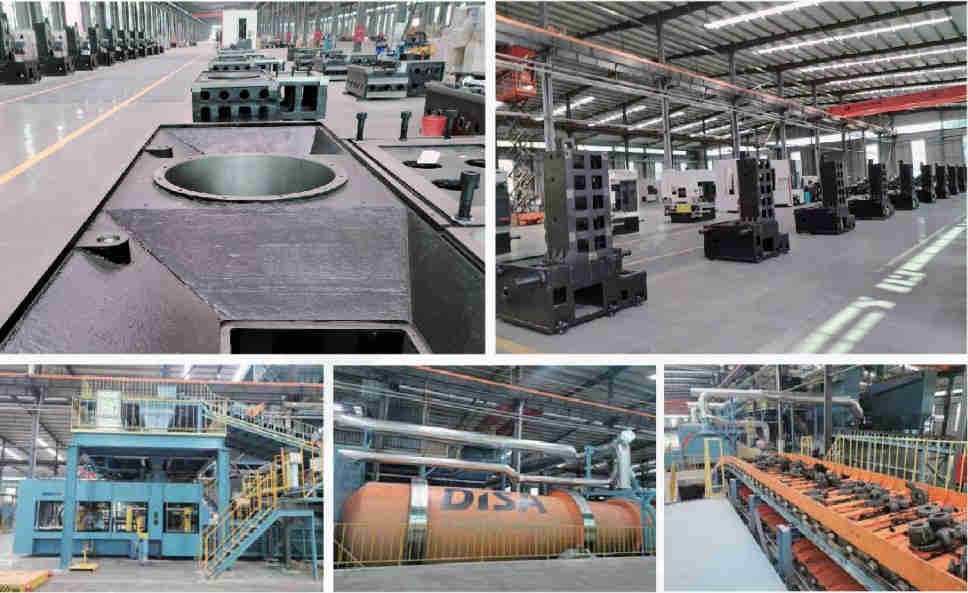

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

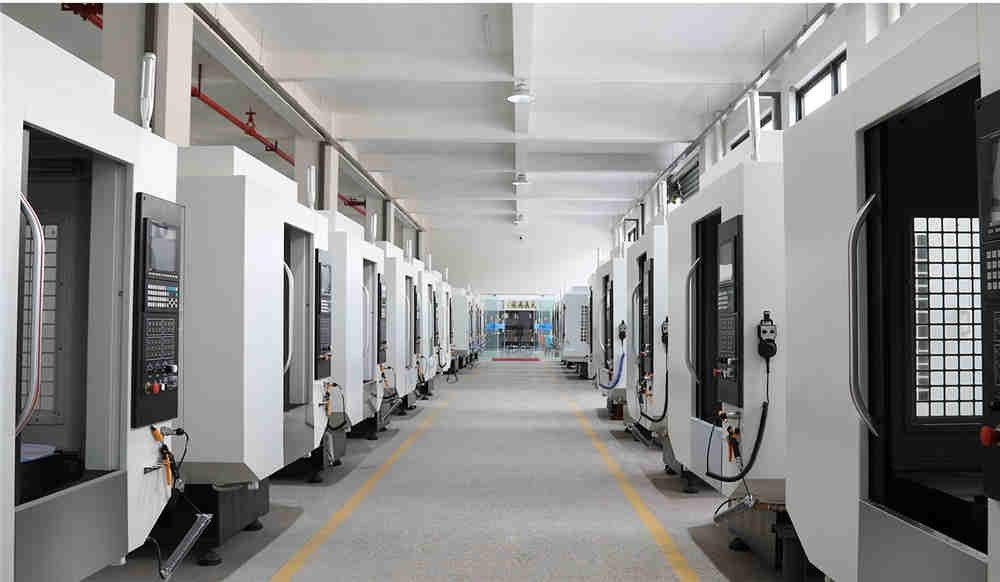

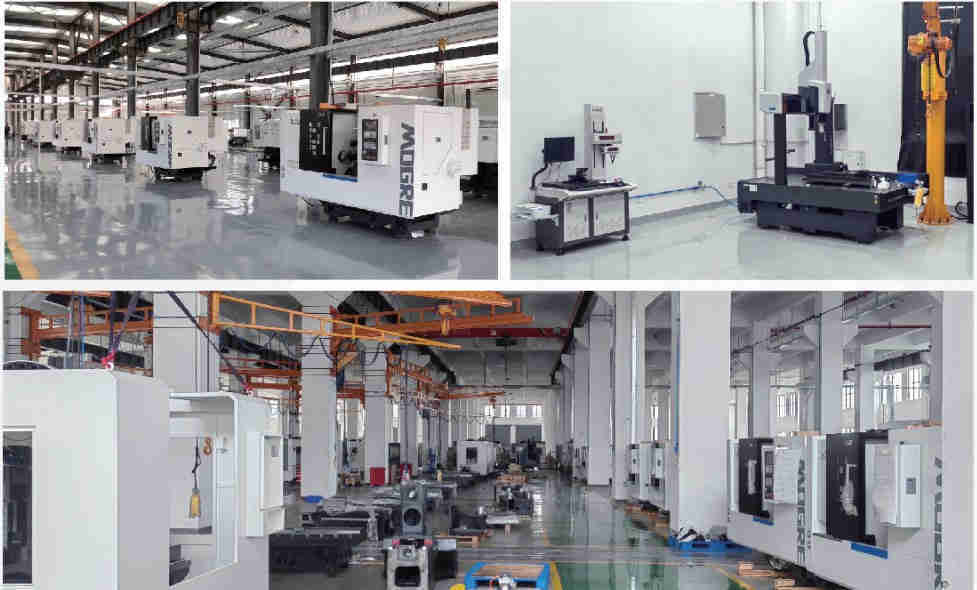

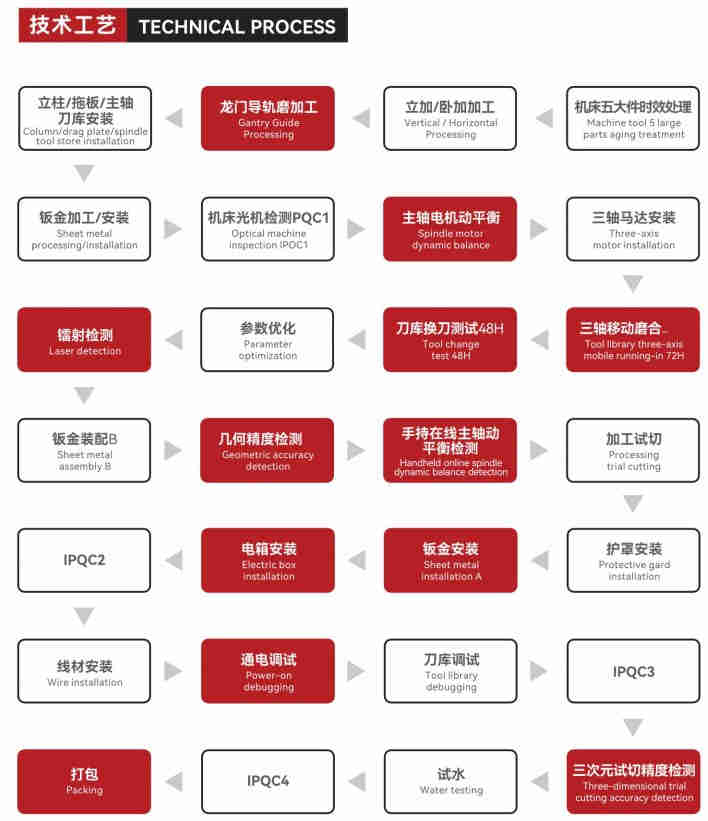

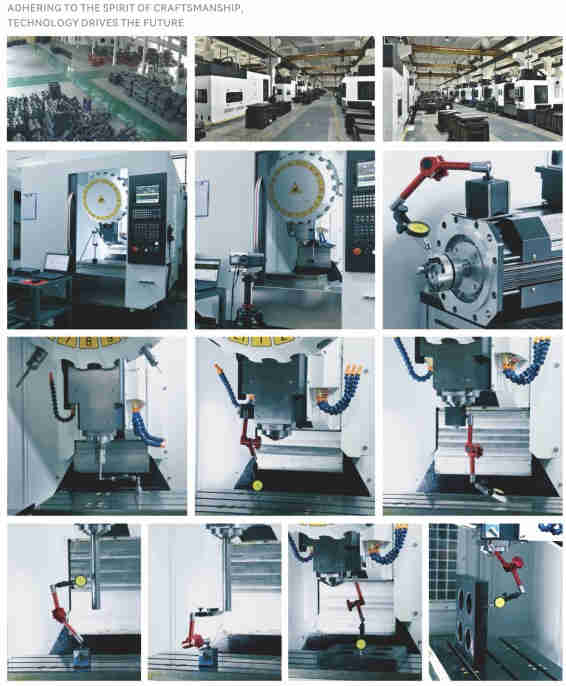

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
