IE2 Series Three Phase Electric Motor with Housing

OPERATING CONDITIONS:

1. Altitude: Alttude should be lower than 1000 meters above sea level.
2. Rated Voltage: 220V/380V 230V/440V 380V/660V 400V/690V
3. Frenquency: 50Hz 60Hz
4. Connection: Star-connection for 3KW of less whereas
Delta-connection for 4KW or more.
5. Duty/Rating: Continuous(S1)
6. Insulation class: F, the temperature rise of the stator winding is examined at 80K(by reistance method).
7. Protection Class: The main body of the motor is IP54, IP55, but the terminal boxeaches IP55.
8. Cooling method: IC 411

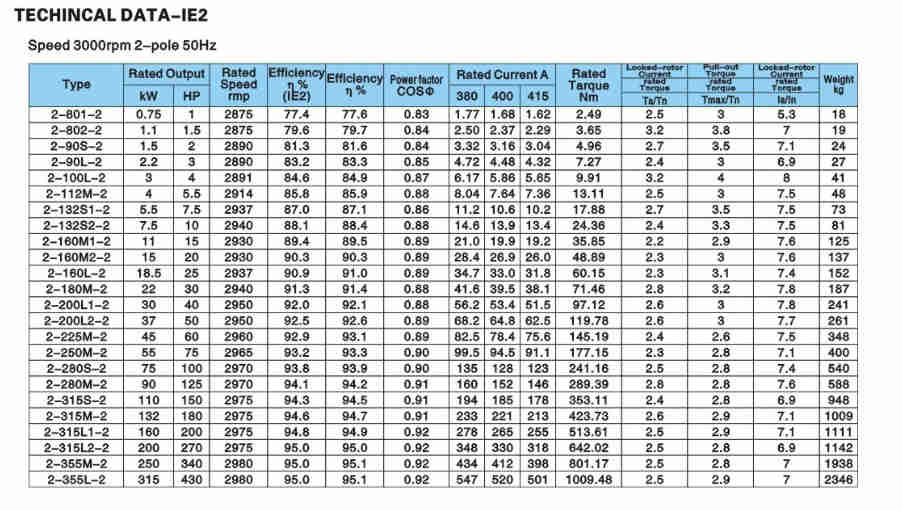

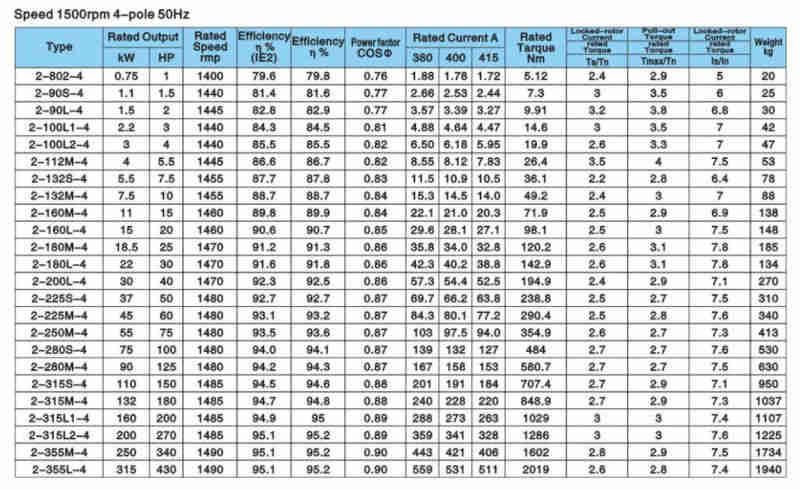

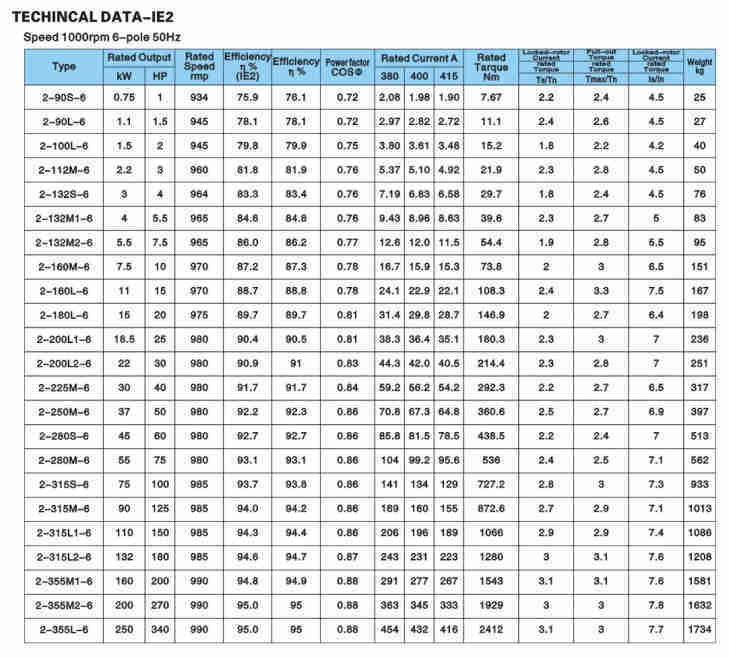

INTRODUCE AND DATA:

Appearance:

 PICTURES OF REFERANCE:
