harrow disc suppliers in philippines
Hangzhou Ever-power Machinery Co.,Ltd.is a professional manufacturer of disc blade .There is an existing advanced production line of forging,casting ,machining ,heat treatment in the company.
Our company has been a reliable and excellent manufacturer of disc blades, plough discs , disc harrow , small tractor plough and disc ridger .We can supply all various discs blades according to customers' drawing and samples .
Disc blade information :
Raw Materials:High quality steel raw materials, suitable hardness, not easy to break and deform.
Automatic cutting:Pressing production line have 25T to 1200T pressing equipment, meeting all kinds of cutting needs.
Thermo-forming:Precision tooling, quick shaping
Tempering:High strength assured by a proprietary heat treatment process designed and developed by Yuancheng.
Painting:Brand energy saving water-based paint adopted, and drying process is added to improve the quality of the paint adhesion to blade surface.

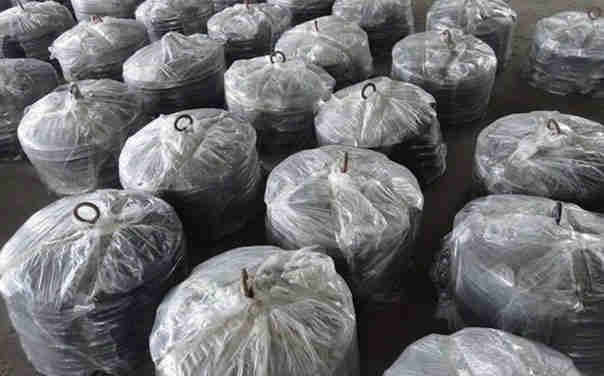

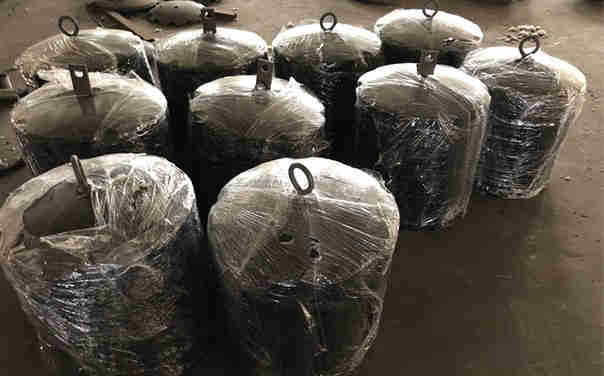

Packing:All product are well tested and packed before delivery.
24'' harrow disc blades for sale specification :
| Disc Diameter | 24'' (610mm) |
| Disc thickness | 5mm |
| No. of notch | round |
| Center hole type & size | produce according to your demand |
| Small hole size | produce according to your demand |
| Weright | 11.5kg |
| Material | Boron steel or 65Mn Spring steel |
| Hardness | 50-55HRC or 38-46HRC |
Our factory is a professional manufacture , we also can produce many different size disc blade , also can custom-made your disc blade , so you can send me your disc blade drawings or size . And please look at following our factory normal disc blade specification:
Disc Blade Specifications | |||
Diameter | Height of bow | Thickness | |
MM | INCH | MM | MM |
255 | 10 | 12 | 3 |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3;4 |
460 | 18 | 38~60 | 3;4 |
480 | 19 | 57 | 3;4 |
510 | 20 | 44~63 | 3;4;5 |
535 | 21 | 63 | 3;4;5 |
560 | 22 | 60~85 | 4;5;6 |
585 | 23 | 75~90 | 4;5;6 |
610 | 24 | 75~95 | 4;5;6 |
660 | 26 | 86~115 | 5;6;7;8 |
710 | 28 | 100~130 | 5;6;7;8 |
760 | 30 | 100~135 | 6;7;8;10;12 |
810 | 32 | 100~140 | 7;8;10;12 |
910 | 36 | 120~200 | 8;10;12 |
960 | 38 | 120~200 | 8;10;12 |

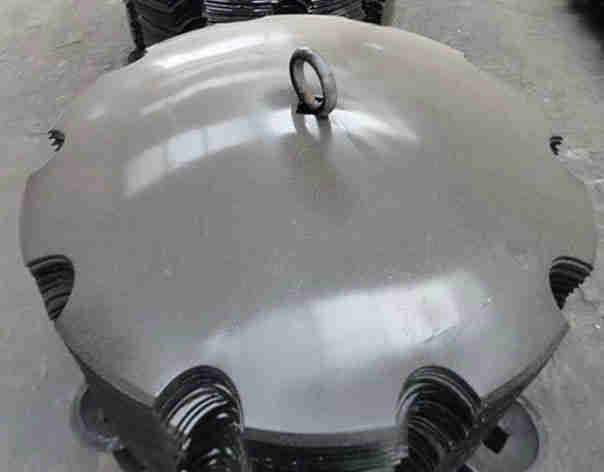

24'' x5mm plough disc blade picture :

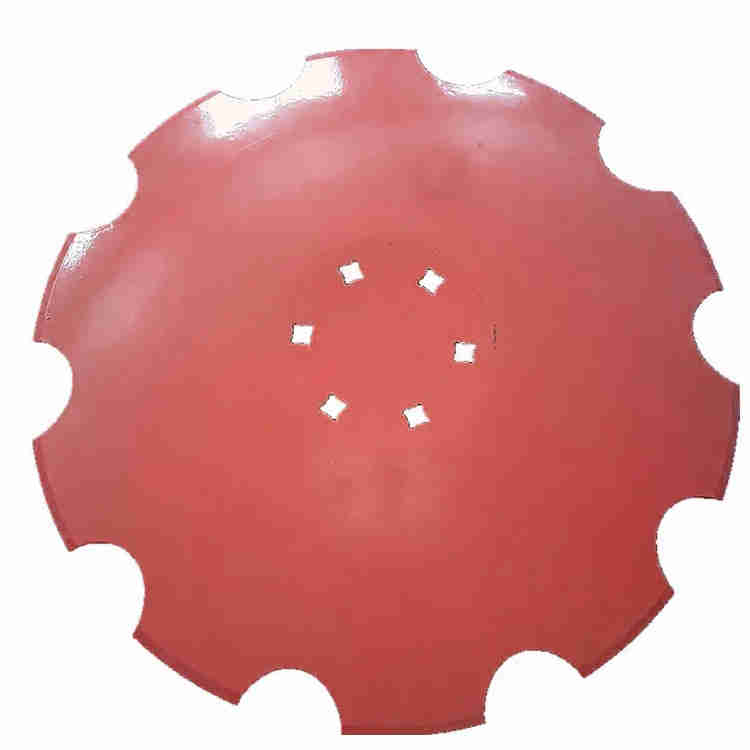

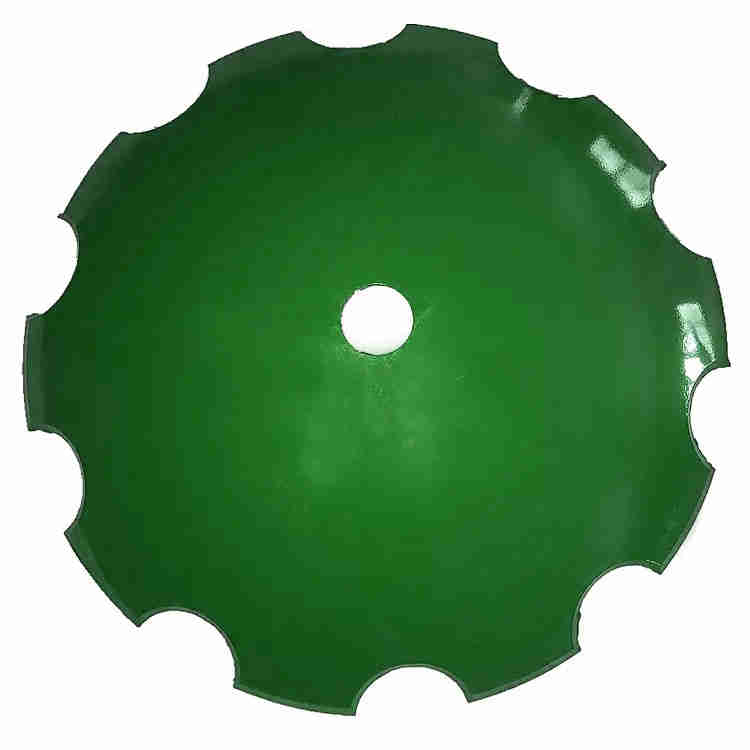

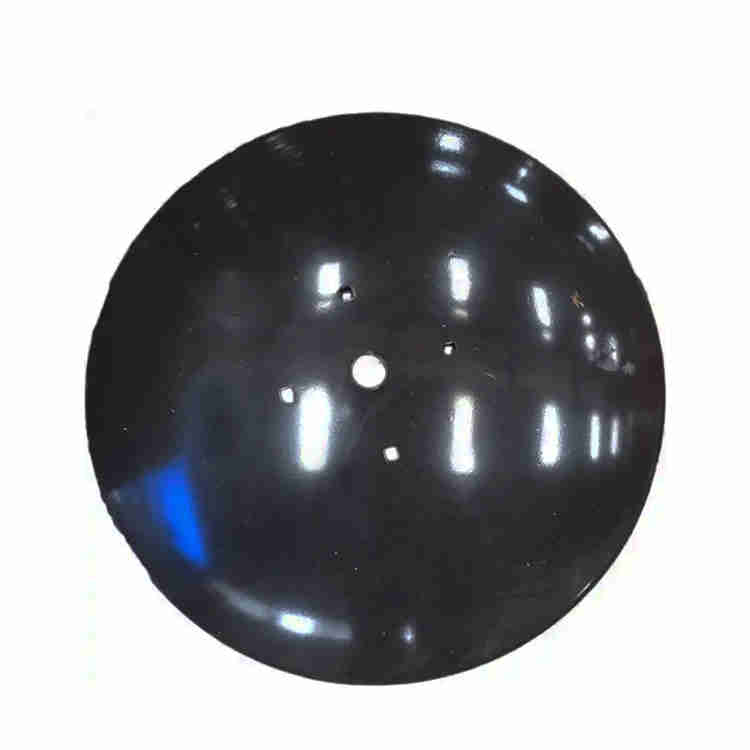

Hangzhou Ever-power Many different type disc blade :
-Delivery time: after confirm order,within 30days. if your order Qty. more than 3000pcs, delivery time need to disc cuss. but not more than 60days.
-Payments items: As usual, it is30% depositafter confirm order andbalance 70%after shipment.
-Disc blade material: Boron steeland65Mn steel.
- We are able to following yourdrawingorsampleto machining.
