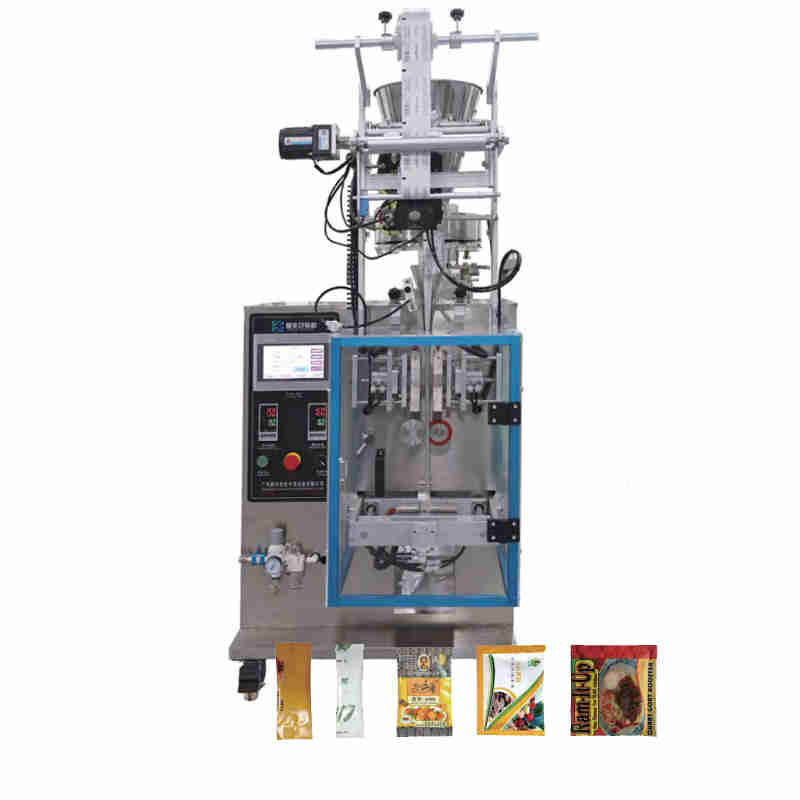

Granule / Powder / Liquid Packing Machine for Bag Center Seal Side Seal

Granule Packing MachineThis machine is suitable for products in medicine.food.health care and special industnes, such as food additives.desiccants.whitesugar.instant coffee,traditional Chinese medicine granules and various granules.Powder Packing MachineThis machine is suitable for oowder oroducts w......

Send Inquiry

Product Description

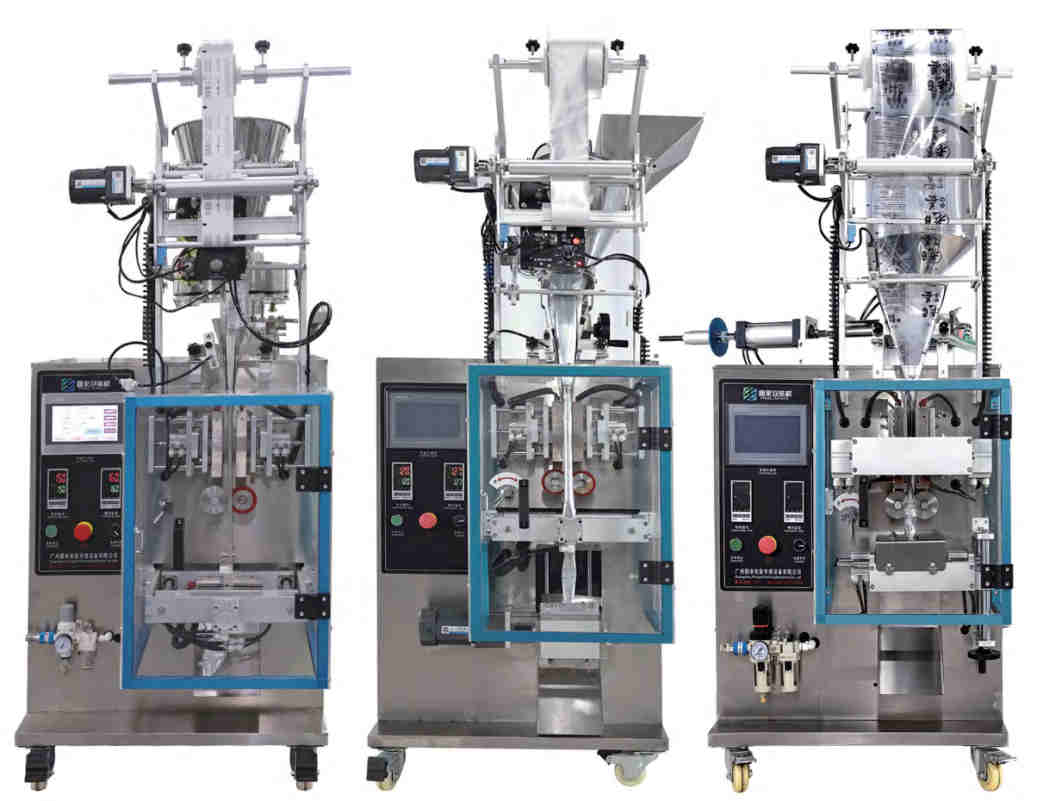

Granule Packing Machine

This machine is suitable for products in medicine.food.health care and special industnes, such as food additives.desiccants.whitesugar.instant coffee,traditional Chinese medicine granules and various granules.

Powder Packing Machine

This machine is suitable for oowder oroducts with ooor luidity in the food, daly chemicalpesticide and oharmaceuticaindustiessuch as: freeze-dried powder,protein powder,gastrodia elata powder,kudzu root powder.dendrobiumpo wder.panax notoginsengpowder.whole grains powder sulbstitute Meal powder.milk shake powder.Ganodermalucidum powder.bear bile powder.milkpowder.coffee powder.rnice powder,sovbean milk.,powder food additives solidbeverage powder and other powders.

Liquid back seal packing machine

This machine is suitable for liquid, paste and paste materials in medicine, food and daily chemical industries, Such asshampoo shower gel.face cream.fruit juice. jam.seasoning sauce.enzyme drink enzyme jely.loquat extractwhole grain health creamand varous liquids.

Equipment performance

1.t can automaticaly complete allthe work of fing.measuring,.bag making,seaing,cuting.hot pressing,batch number etc. duning thepackaging process,and the positioning of the photoelectic tracking mark does not need to be adilusted inteligent control system,Chinese and Enalish LED display, Only needto set the parameters to precisely control the operation of the system

2.The heat sealer controls the uniform heating of the bag side, and the upper and lower sides can be adjusted separately

3.Replacing the cutting tool can realize one-ine, pattern-shaped cuting, one-line joint cuting, bag cutingis stable and reliablewithout bag jamming, easy to operate, and can be equipped with a wheel type coding machineto arrange batch numbers, shelilife, etc

Features

1.The machine pneumatically pushes the seal, each function can be controlled independently

2.Quiet, high precision, easy to clean

3.The chassis is customized with 304 stainless steel, non-outsourcing stainless steel plate

4 The eauipment is highly compatible, and different specifications can be realized by changing the mold

Model	240KB	240ZDBF	240YB
Measuring range	1-100g	1-100g	1-100ml
Bag size	back center seal :L20-160mm;:W20-100mm side seal:L20-160mm;:W30-100mm
Dose range	rotary measuring cups	screw feeder	pump/rotor pump/piston pump
Voltage	220V50-60HZ/2KW	220V50-60HZ/2KW	220V50-60HZ/2KW
Controlsystem	PLC controlling system
Speed	30-50bag/min
Bagtype	Bag center seal/ side seal
Dimension	L700W600H1600 mm	L600W720H1590 mm	L700W600H1720 mm
Weigh	220KG	260KG	200KG
Material	BOPP/PE/PET any heat sealing laminated film

Production Line	Multi-Lanes Granule Paking Machine	Small Packing Series	High Speed Powder Parking Machine
			Multi-Lanes Powder Paking Machine		High Speed Liquid Packing Machine
			Multi-Lanes Liquid Paking Machine		High Speed Granule Packing Machine
			Full Automatic Inner and Outer Bag Production Line		Granule/Powder/Liquid Packing Machine
			Full Automatic Multi-row Bagging Carton Parking And Carton Wrapping Film Machine		Full Auto Ulitrasonic Sealing&Packing Machine
		Full Automatic Granule/Powder/Liquid Two-In-One Cartoning Production Line	Give The Bag Series	8 Station Vacuum Premade Bags Weighing And Packing Machine
		Full Automatic Multi Column Bag Parking Orderly Soring,Boxing And Carton Parking Production Line	Give The Bag Series		Horizontal Premade Bag Powder Packing Machine
Shaped Series	lrregular Sachet Back Seal Packing Machine	Pillow Series	Horizontal Packing Machine(Upper/Down Film)
		lrregular Sachet Back-Side Sealing Machine	Tea Bag Serise	Filter Paper Tea Bag Packing Machine
		Full Punch Irregular Bag Granule/Powder /Liquid Seal Packing Machine			Triangular Mag With Inner And Outer Bag PackingMachine
Big Pillow Packing Series	Vacuum Bag Liquid Packing Machine			Drip Coffee Packing Machine
		Vacuum Bag Granule Packing Machine	Point Series	Point Packing Machine
		Big Model Powder Packing Machine	Canned Labeling Series	Automatic Cups Filling Sealing Machine
		Big Volume Bag Liquid Packing Machine	Give The Bag Series	8 Heads Filler Servo Control Filling Machine
		Combination weigher packing machine			Round Bottle Labeling Machine
Coupling Bag Series	Double Lane(Side by Side)Of Granule/Liquid Packing Machine			Multi-Head Following Capping Machine Vibrating Disc Capping Machine
Coupling Bag Series		Three Line bags Of Liquid Machines

Ever power Packaging Equipment Co., Ltd. is a company that integrates research and development An enterprise that integrates manufacturing and sales. The company is located in Panyu, Guangzhou Building B35, Huachuang Industrial Park, Shiji Town, District. Covering an area of approximately 6000 square meters, deep With over 20 years of experience in the packaging equipment industry, we can directly design according to customer needs a modern enterprise specializing in the design and manufacturing of professional packaging equipment.

The company's independently developed multi column liquid, particle, and powder packaging machine. liquid Body and particle vacuum packaging machine, ultra high speed packaging machine, ultrasonic non-woven Packaging equipment such as cloth packaging machines are in a leading position.

Our company's packaging equipment is widely used in chemical, daily chemical, food, and medical industries Industries such as pharmaceuticals and health products. Currently, CE certification and TUV certification have been obtained SGS certification and over 20 national patents.

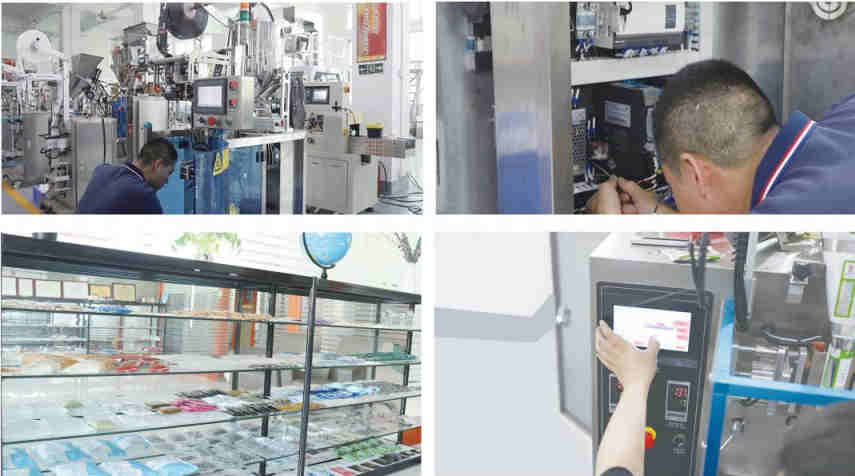

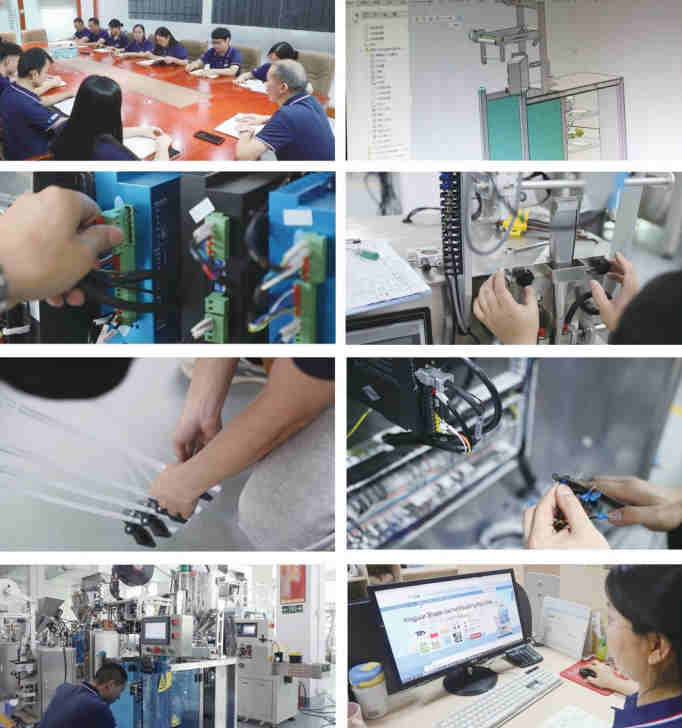

The company has multiple high-end CNC machines, which are regularly organized based on structural principles and equipment Training on planning schemes, market feedback, etc., to enhance the comprehensive skills of production technicians Strength enables each technician to accurately familiarize themselves with the machining process of each component The requirement for processing quality has led all employees to respect production and quality Respect the good situation of the product and comprehensively improve the comprehensive efficiency of production.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
