CNC Indexable Inserts Periphery Grinding Machine Insert Grinder

2MK7130ACNC periphery grinding machine for indexable inserts ismainly used to grind indexable inserts with cemented carbide, ceramia and CBN material .* Equipped with FAGOR 8070 CNC system;*It is suitable for grinding the typical peripheral contour, chamfering, filleting,single-sided or double - sid......

Send Inquiry

Product Description

2MK7130ACNC periphery grinding machine for indexable inserts ismainly used to grind indexable inserts with cemented carbide, ceramia and CBN material .

* Equipped with FAGOR 8070 CNC system;

*It is suitable for grinding the typical peripheral contour, chamfering, filleting,single-sided or double - sided chamfering at one set up.

*It can also grind the peripheries of inserts not- specified in standards concerned in the batch processing.

*The shape of indexable inserts are triangle, square, rhombold, polygon and circle etc.

model	2MK7130A
NC system	FAGOR(Spain) 8070
NC axes	5 NC axes, 3 of which in: Axis X: Cross-feed of wheel head (With grating scale) (Full-close looped) Axis B: Rotation of work spindle (With angular encoder) (Full-close looped) Axis C: Rotation of table (With angular encoder) (Full-close looped) Axis Y: Longitudinal traverse of whelhead Axis W: Feeding movement of wheel auto-cleaning ( The axes x,B, and C are three synchronous programmed axes,and Axis W is optional. )
NC axes

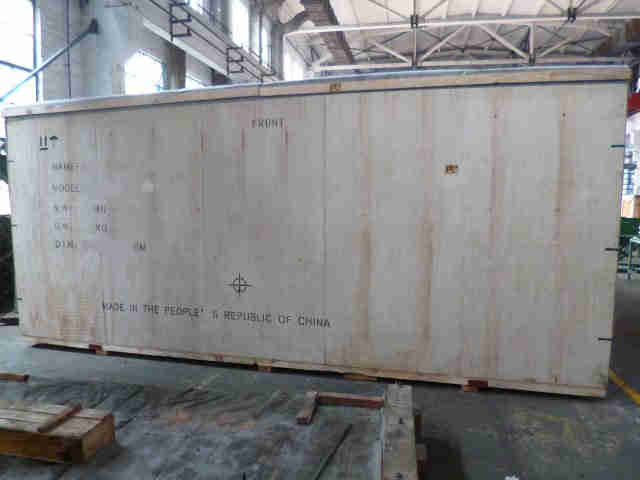

The main machine and all the accessories packed in the fumigated strong wooden cases for long distance sea-land chain transportation.

Delivery from plant to dispatching seaport carried out by the professional team.

Our Services & Strength

Raydafon was established in the year of 1960. From the year on, we have been devoted our best efforts on developing various of thread grinding machines for customer worldwide. After several decades, we now owing:

1.wide range of various of grinding machine tools, including: CNC / manual wormshaft grinding machines; CNC /manual thread gauges(ring gauges or plug gauges)grinding machines; CNC machine for grinding periphery indexable inserts;

2. complete production line for ballscrews, including:lead screw milling machines, leadscrew grinding machines(up to diameter=500 mm, length=10000 mm(10 meters), dynamic leadscrew measuring machine, etc.

3. universal thread grinding machine
