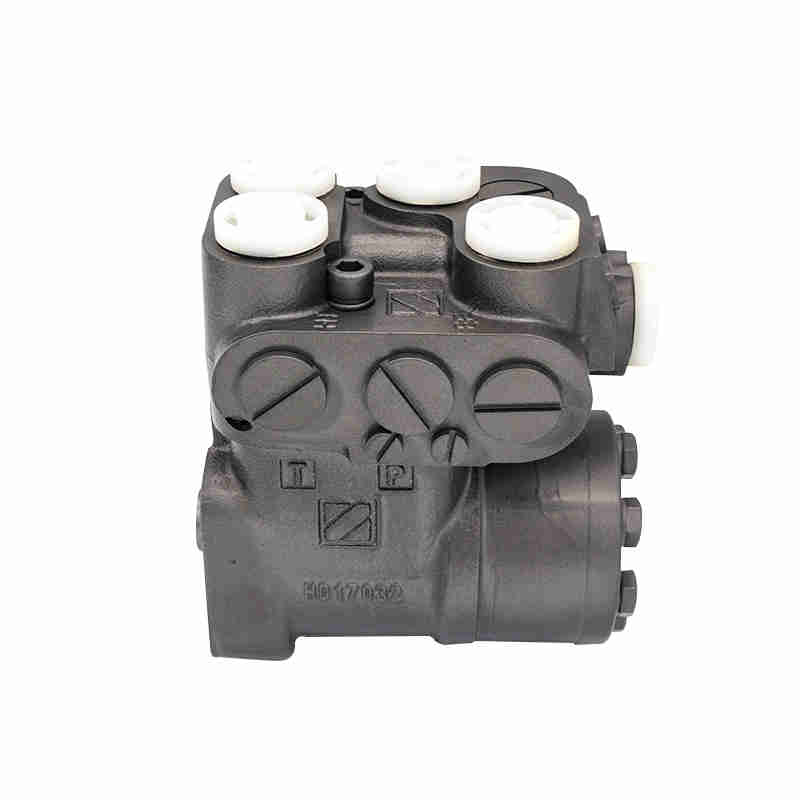

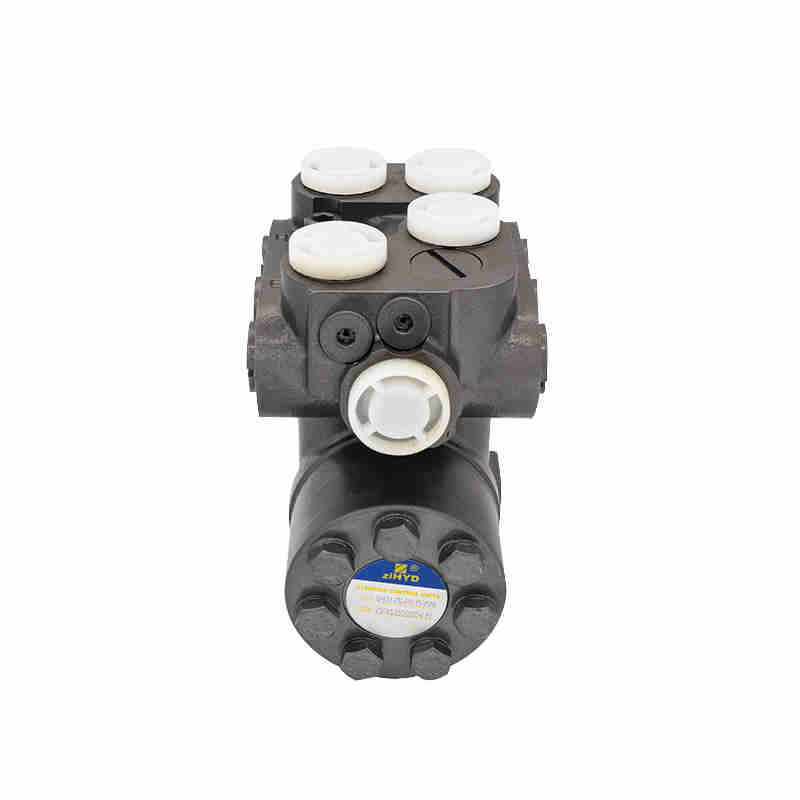

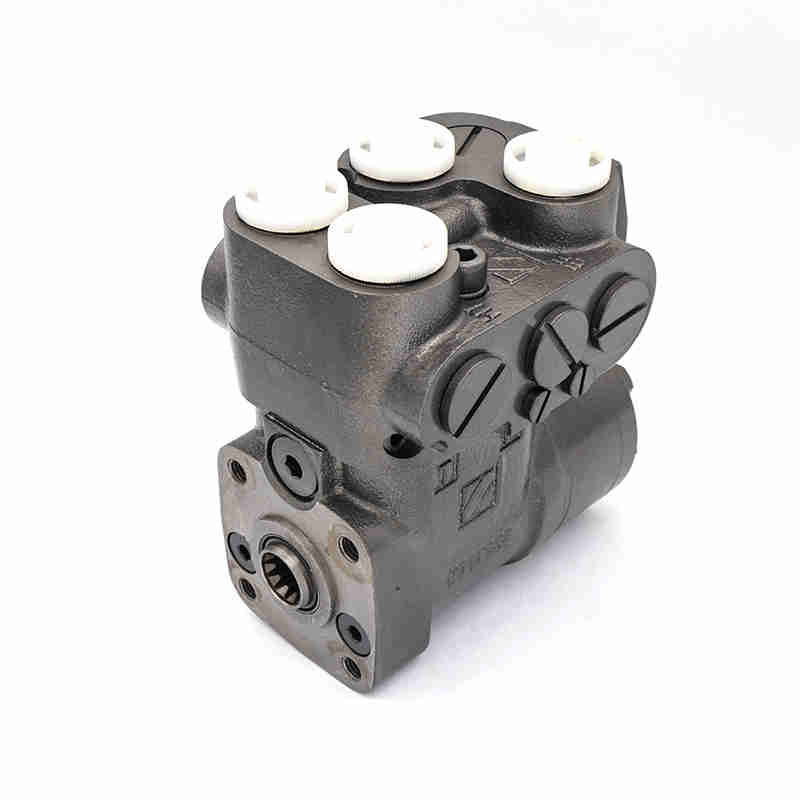

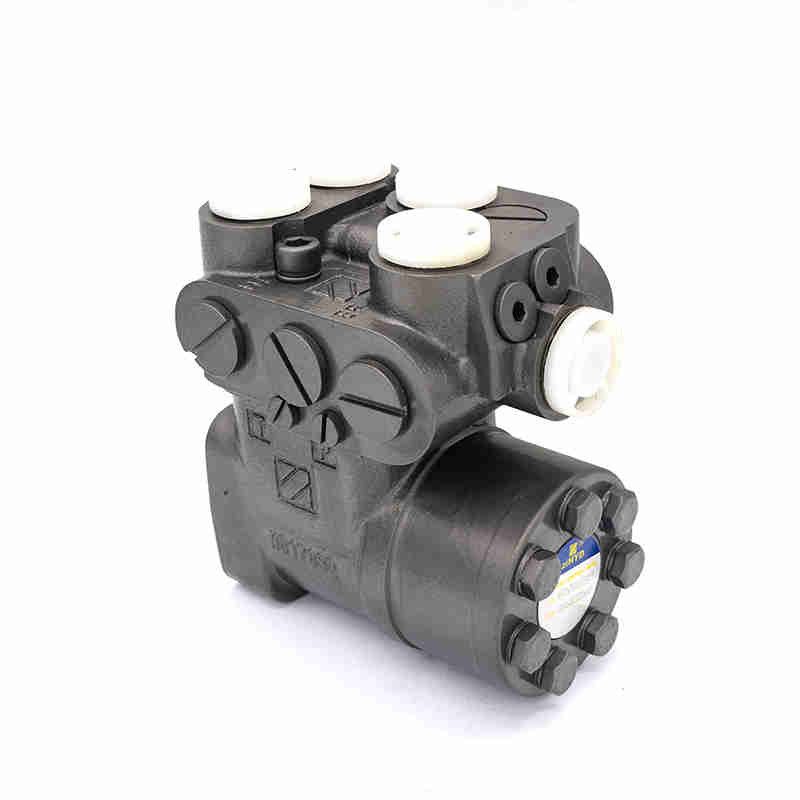

China Supplier Factory Exporter Steering Unit B125 Cn 150-0129

ParametersTypeBPBS5,BPBS5E,BPBS5L,BPBS5T,BPBS5TEBPBS5T,BPBS5TEDisplacementmL/r506380100125160200250280315400Rated Flow L/min5681012.51620252831.540Max. Input Pressurebar175Max.Cont.Pressure in Line Tbar25Relief Valve Pressure Settingbar6, 8, 10, 12, 14, 16, 17.5Shock Valves Pressure Settingbar12, 14......

Send Inquiry

Product Description

Parameters		Type
Parameters		BPBS5,BPBS5E,BPBS5L,BPBS5T,BPBS5TE							BPBS5T,BPBS5TE
Displacement	mL/r	50	63	80	100	125	160	200	250	280	315	400
Rated Flow	L/min	5	6	8	10	12.5	16	20	25	28	31.5	40
Max. Input Pressure	bar	175
Max.Cont.Pressure in Line T	bar	25
Relief Valve Pressure Setting	bar	6, 8, 10, 12, 14, 16, 17.5
Shock Valves Pressure Setting	bar	12, 14, 16, 18, 20, 22, 23.5
Power Steering Torque	N.m	1.6~2.4
Max.Manual Steering Torque	N.m	130
Dimension L	mm	130	132	133	136	139	144	149	155	160	165	175
Weight	kg	5.8	5.9	6	6.1	6.2	6.4	6.5	6.7	7	7.2	7.4
