Box Guideway VMC1265 Cutting Metal Working Machine CNC Lathe Vertical Machining Center

VMC1265 metal cutting machining center for sale/ Box GuidewayThe MC1265 vertical machining center adopts a vertical frame layout, with columns fixed on the bed. The spindle box moves up and down along the columns (Z direction), the slide seat moves longitudinally along the bed (Y direction), and the......

Send Inquiry

Product Description

VMC1265 metal cutting machining center for sale/ Box Guideway

The MC1265 vertical machining center adopts a vertical frame layout, with columns fixed on the bed. The spindle box moves up and down along the columns (Z direction), the slide seat moves longitudinally along the bed (Y direction), and the workbench moves laterally along the slide seat (X direction). All three axes are equipped with ultra wide rectangular guide rails, which have a large contact area and the joint surfaces are manually scraped by professional personnel. The most prominent feature is their excellent rigidity and vibration absorption, making them suitable for cutting heavy machine tools. This guide rail adopts a wedge-shaped inlay structure, with good accuracy and repairability. It can achieve processes such as milling, drilling, expanding, boring, reaming, tapping, etc. It is mainly used in mechanical processing industries such as , mining, automotive, molds, instruments, etc. It can be used to process various high-precision, multi process, and complex shaped parts. Suitable for small and medium-sized batch, multi variety production, and can also enter automatic assembly line production.

Item	Unit	VMC855	VMC1000	VMC1165	VMC1265
Worktable
Worktable size	mm	550×1000	550×1200	650×1300	650×1400
T-slot (N×W×D)	mm	5×18×100	5×18×100	5×18×125	5×18×125
Travel
Axis travel (X/Y/Z)	mm	850/550/650	1000/570/650	1100/650/665	1200/670/665
Machining range
Distance from spindle center to column front	mm	610	610	700	700
Distance from spindle end to work table	mm	125-775	100-750	150-815	115-780
Machine dimension
L×W×H	mm	2700×2510×3000	2700×2510×3000	4800x2700x3200	4800x2700x3200
Machine weight
Max. load bearing of worktable	kg	700	800	1000	1200
Machine weight	kg	6700	7000	8500	9000
Spindle
Spindle hole taper		BT40	BT40	BT40	BT50
Spindle power	Kw	7.5/11	11/15	11/15	11/15
Max. spindle speed	rpm	8000	8000	8000	6000
Feed(direct drive)
Max. feed speed	mm/min	10000	10000	10000	8000
Rapid feed speed (X/Y/Z)	m/min	18/18/15	18/18/15	15/15/12	15/15/12
Tool Magazine
Tool magazine capacity	T	24	24	24	24
Tool change time(T-T)	s	2.5	2.5	2.5	3
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.010	0.010	0.010	0.010
Re-positioning accuracy(X/Y/Z)	mm	0.006	0.006	0.006	0.006

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments*Production equipment*Gear hob*Insert gear hob*Gear hob*Worm gear hob*Involute spline hob*Triangular spline hob rectangular spline hob*Sprocket roller cutter*Circular arc gear hob*Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

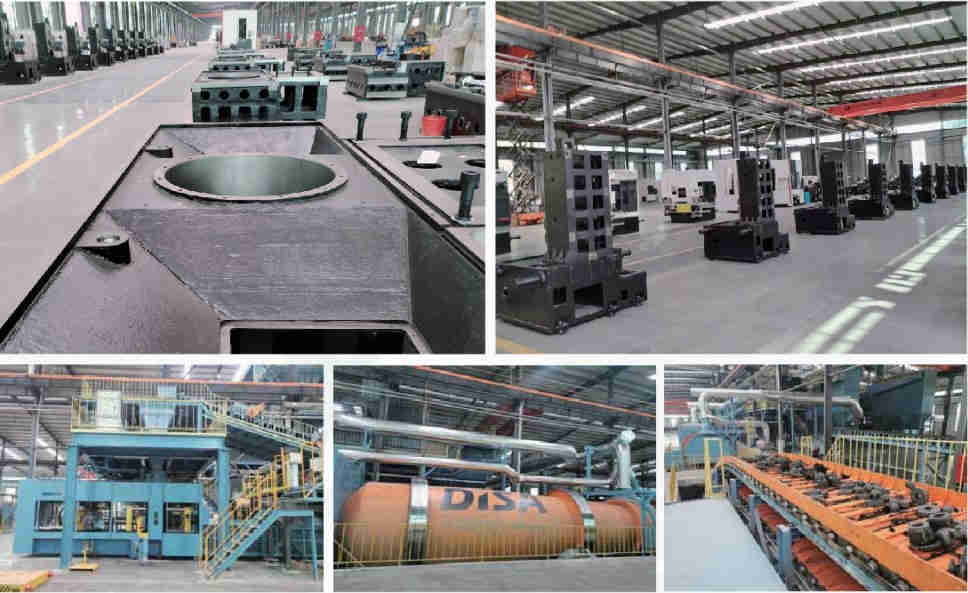

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

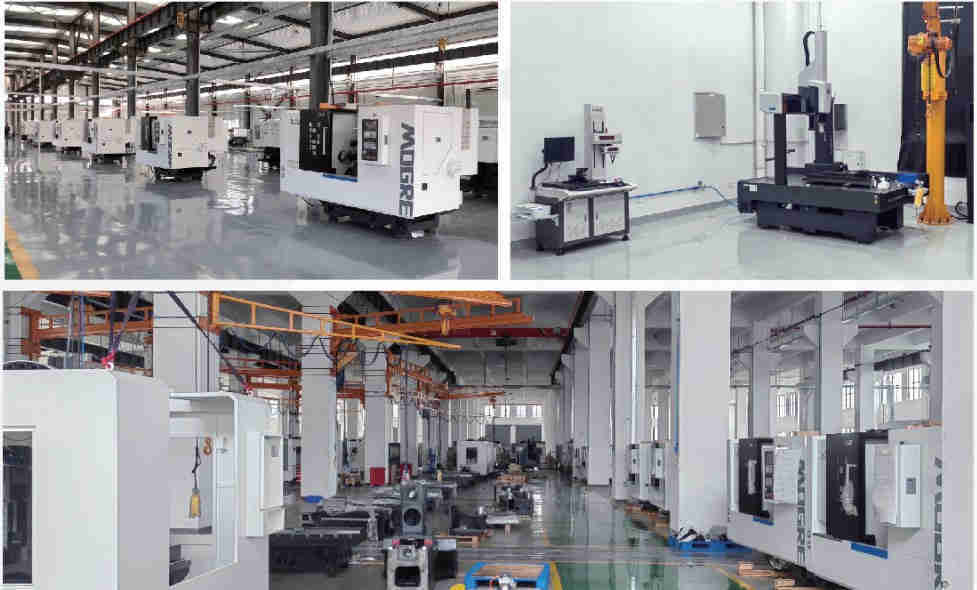

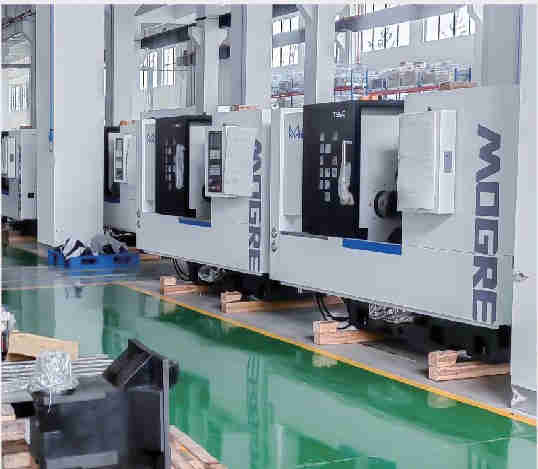

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
