BMV Series Cycloidal Orbit Orbital Hydraulic Motor

Send Inquiry

Product Description

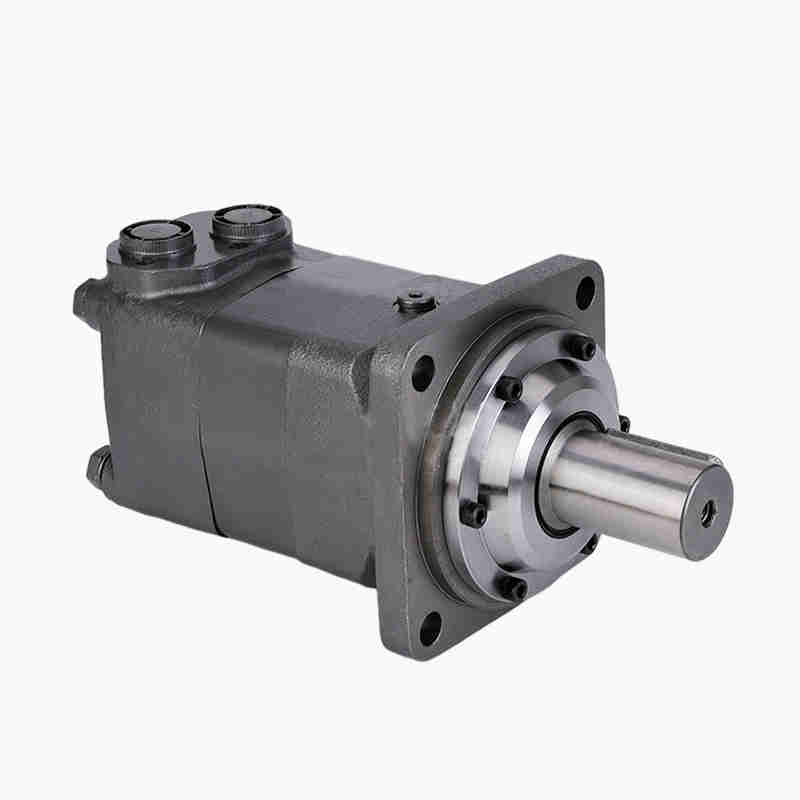

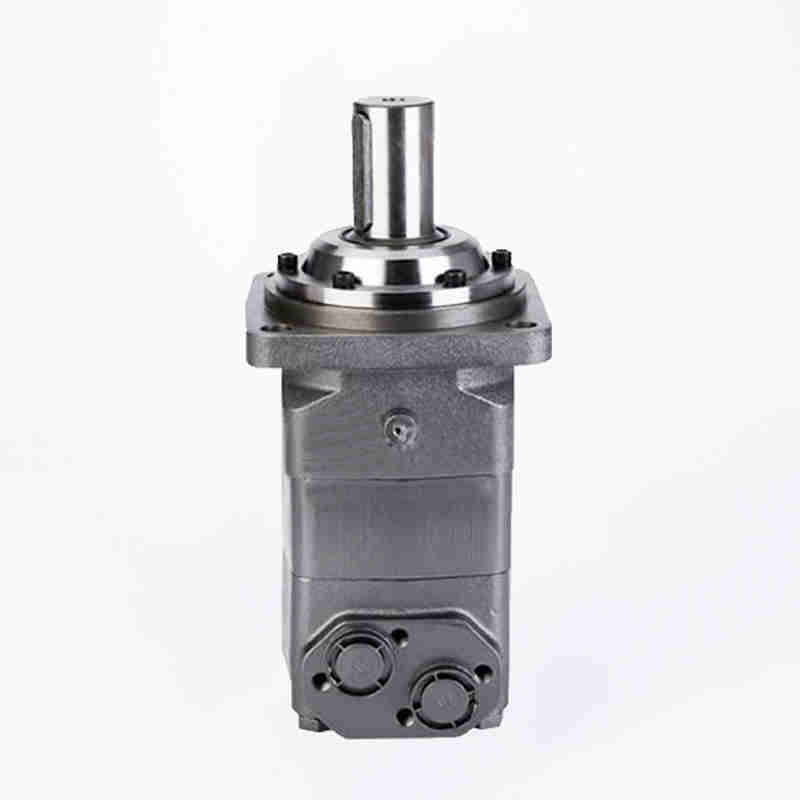

BMV series orbital hydraulic motor is an advanced hydraulic motor with end-face flow distribution structure. This series of motors use a column-mounted rotating stator pair, which has the characteristics of high working pressure, high working efficiency, good efficiency retention of the whole machine and long working life. On the basis of standard structure, multi-functional variant design can be carried out according to user requirements. Its characteristics:

• The use of advanced stator parameter design, low starting pressure, high efficiency and good retention.
• High working pressure and large output torque. Tapered roller bearing structure, bearing shaft, radial load capacity is strong, so that the motor can directly drive the working mechanism, the scope of use is expanded.
• Advanced end face flow distribution structure, so that the motor with high precision, wear after the automatic compensation function is strong, to ensure high volumetric efficiency, motor long life, to ensure that the motor speed is stable, smooth load speed characteristics.

The highest type			BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Actual displacement (cm³/rev.)			337	426.7	535.8	672.1	853.1	1012.3
Maximum speed (Rpm)	Rated	315	250	200	163	125	105
		Continuous	465	460	365	290	230	193
		Intermittent	585	560	443	353	278	235
Maximum torque (N.M)	Rated	735	980	1220	1450	1680	2050
		Continuous	930	1200	1500	1680	2000	2050
		Intermittent	1110	1430	1800	1950	2235	2320
		Peak	1300	1650	2120	2220	2600	2450
Maximum output power (KW)	Continuous	38	47	47	40	33	28.6
Maximum output power (KW)		Intermittent	46	56	56	56	44	40
Maximum operating pressure difference (MPa)	Rated	16	16	16	16	14	14
		Continuous	20	20	20	18	16	14
		Intermittent	24	24	24	21	18	16
		Peak	28	28	28	24	21	18
Maximum flow (L/min)	Rated	110	110	110	110	110	110
		Continuous	160	200	200	200	200	200
		Intermittent	200	240	240	240	240	240
Maximum allowable oil inlet pressure (MPa)	Rated	21	21	21	21	21	21
		Continuous	21	21	21	21	21	21
		Intermittent	25	25	25	25	25	25
		Peak	30	30	30	30	30	30

*Rated speed and torque refer to the output value under rated flow and pressure. *Continuous value refers to the maximum value at which the displacement motor can operate continuously. *Intermittent value refers to the maximum value at which the displacement motor operates for 6 seconds within 1 minute. *The peak value refers to the maximum value at which the displacement motor operates for 0.6 seconds within 1 minute.

1	Structure Code	BMV
2	*Displacement*	315 400 500 630 800 1000
3	*Flange, stop*	4: 4-φ18 square flange, φ200, stop φ160X11 W: 4-φ18 square flange, φ224, stop φ180X10 W9: 4-φ16 square flange, φ224, stop φ180X10
4	*Shaft extension*	A: Straight shaft φ50, length 82, flat key 14X9X70, shaft head thread M12 BD: Straight shaft φ53.975, length 82, spline 16-DP8/16, shaft head thread M12 B: Straight shaft φ53.975, length 82, spline 16-DP8/16, shaft head thread 3/8-16UNC C: Straight shaft φ57.15, length 82, flat key 12.7X12.7X57.15, shaft head thread 3/8-16UNC T: Cone axis φ60, taper 1:10, cone length 70, flat key 16X10X32,M42X3 T1: Cone axis φ57.2, taper 1:8, cone length 73, flat key 14.3X14.3X50,1-1/2-18UNEF T2: Cone axis φ60, taper 1:10, cone length 41, flat key 16X10X32,M42X3 Q: Straight shaft φ45, length 62, spline 17ZX2.5 mX30PX5e, shaft head thread M12 M: Straight shaft φ40, length 79, flat key 12X8X70, shaft head thread M12 Y: Straight shaft φ40, length 56, flat key 12X8X70, shaft head thread M12
5	*Oil outlet and outlet*	D: G3/4,G1/4, plate type 4-M10 M: M27X2,M14X1.5, PLATE 4-M10 S: 1-1/16-12UN 'O'-ring,9/16-18UNF 'O'-ring S1: 1-1/16-12UN 'O'-ring,7/16-20UNF 'O'-ring G: G3/4,G1/4 M: 3M27X2,M14X1.5 D1: G3/4,G1/4, plate type 4-M12
6	*Rotating condition*	None: Standard R: Reverse
7	Paint Options	00: No paint None: Blue paint B: Black paint S: Silver gray paint
8	Special Function	None General

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
