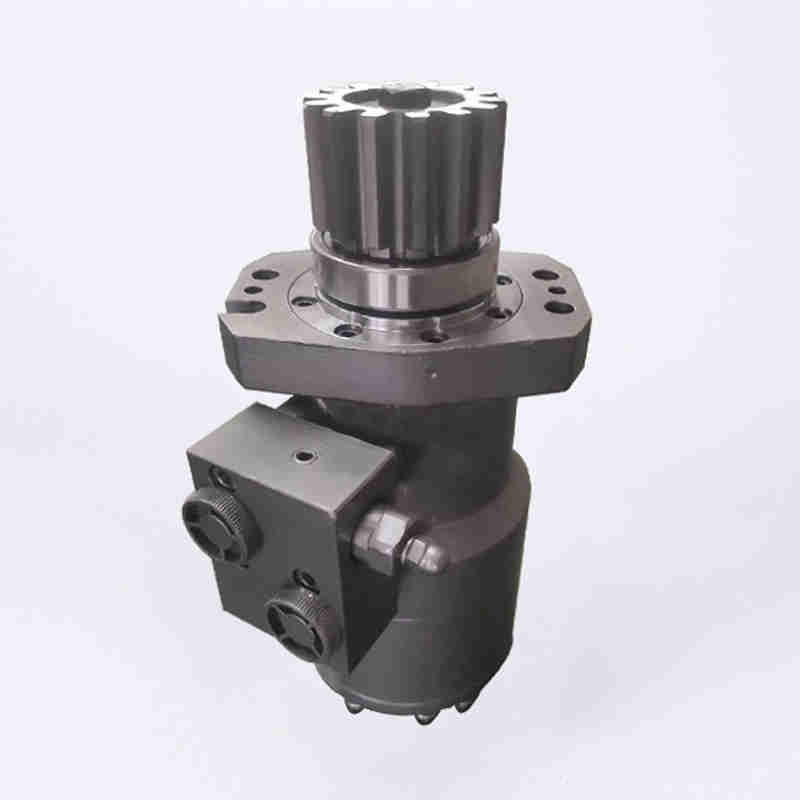

BMHD Series Cycloidal Hydraulic Motor

Send Inquiry

Product Description

The BMHD series cycloidal hydraulic motor is a reinforced shaft flow hydraulic motor with radial bearing support, which has the following characteristics: --The flow distribution mechanism and shaft extension are integrated, with high flow distribution accuracy and high mechanical efficiency of the motor. --Adopting a bearing support structure design, the motor has greater radial load-bearing capacity. --The embedded column type stator pair design has high mechanical efficiency and good efficiency retention. --Reliable rotating shaft sealing design, strong resistance to high back pressure, and can be used in series or parallel. --Advanced structural design, high power density, strong pressure resistance, and outstanding impact resistance.

1	BMHD	BMHD
2	Emissions	630
3	Flange and stop:	A: 4- ^ 12.5&2- ^ 8 Diagonal diamond flange with a stop diameter of ^ 80 B: 4- diameter 12.5&2- diameter 8 rhombic flange with a stop diameter of 80 C: 8- rectangular flange with a diameter of 13 and a stop diameter of 80
4	Axial extension
5	Oil port and external leakage port	D2: G1/2, Plate type 4-M8, M14X1.5
6	Rotating working condition	standard / reverse
7	Paint options	00: No paint No: Blue paint B: Black paint S: Silver gray paint
8	Special requirement functions

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
