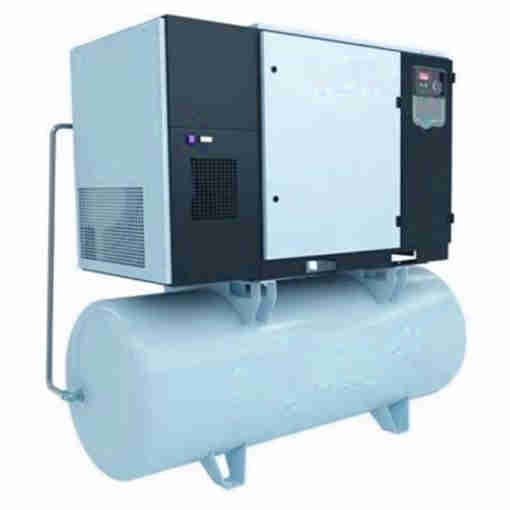

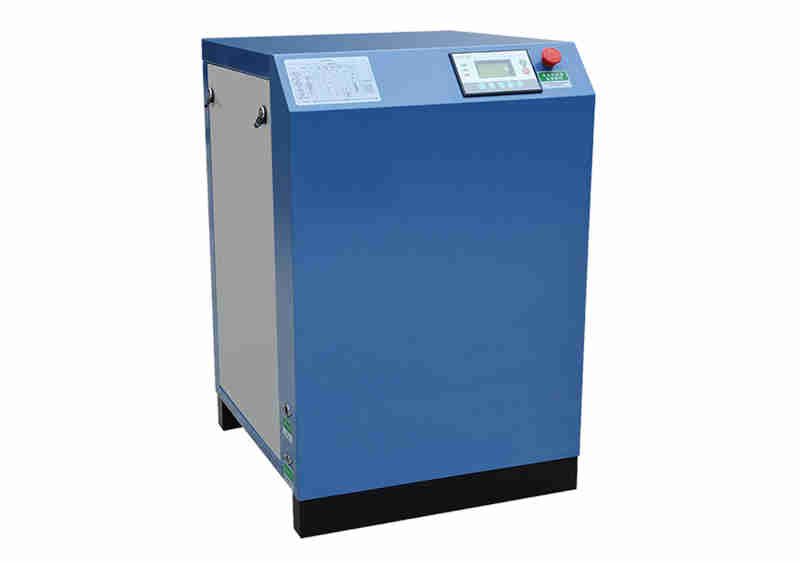

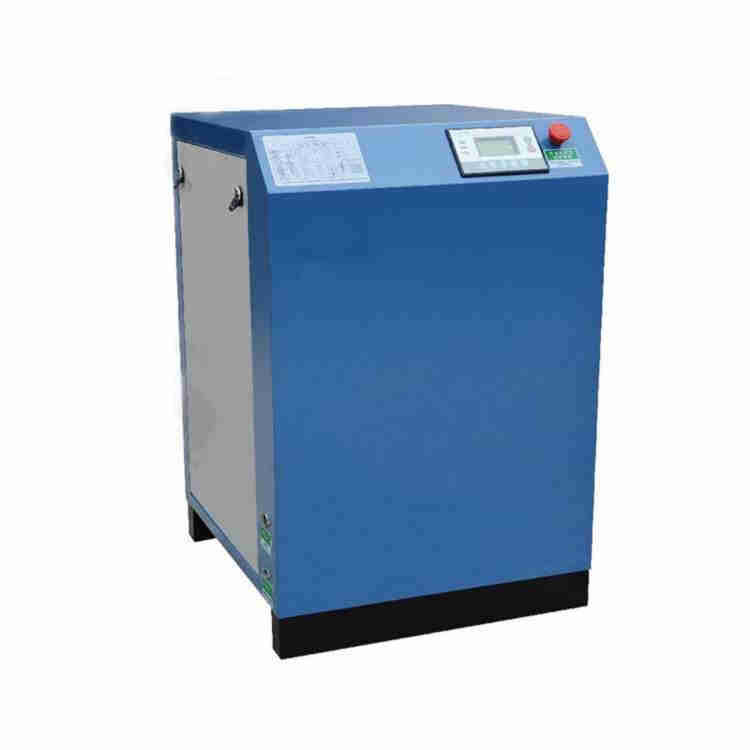

2.2 kW 3.7 kW 4.5 kW PM VSD Oil Free Scroll Type Air Compressor for Electric Bus or Gas Generator

Product ApplicationElectric bus, High-speed train, Precision machine tool, Precision spray production line, Medical apparatus, Dental chairs, Laboratory and so on.Product FeaturesPrecision air end(2 years warranty)High precision, stiffness and durable square air-end ensure pressure can reach 12bar.I......

Send Inquiry

Product Description

Product Application

Electric bus, High-speed train, Precision machine tool, Precision spray production line, Medical apparatus, Dental chairs, Laboratory and so on.

Product Features

Precision air end(2 years warranty) High precision, stiffness and durable square air-end ensure pressure can reach 12bar. IP65 protection level, F insulation level, Efficiency is improved 10% PM motor & Variable frequency inverter VSD soft no current impact. Inverter adjusts motor speed automatically, save energy and long service life. Direct drive Motor is connected with air-end directly, without belt, coupling, no need adjustment, super low noise Individual cooling fan: Low discharge compressed air temperature after cooled by individual fan to ensure the low pressure dew point. Purity stainless steel air tank Stainless Steel pipe and connection Super quiet: Smart structure and advanced soundproof casing to reduce the noise to 49dB(A) Intelligent PLC controller. Display operation situation of air-end Remind maintenance timely

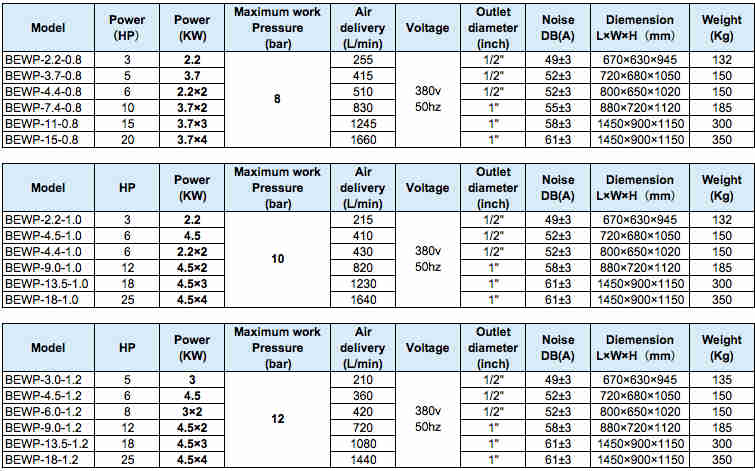

Technical Specifications.

Direct drive oil free scroll air compressor with pm inverter

Capacity FAD m3/min	0.21m3/min ~ 1.64m3/min
Working Pressure	8bar ~ 12bar
Motor Power	2.2kw ~18kw

Scroll Air end

Air end.

1) Oil free: no need any lubrication oil

2) Stable and reliable: oil grease is added one time per year

3) Low consumable: only air filter and sealing element

4) Super quiet design

5) World first innovating of high stiffness air end, air pressure can reach 12 bar

6) individual air end set can be match with any devices which need compressed air, simple and convenient

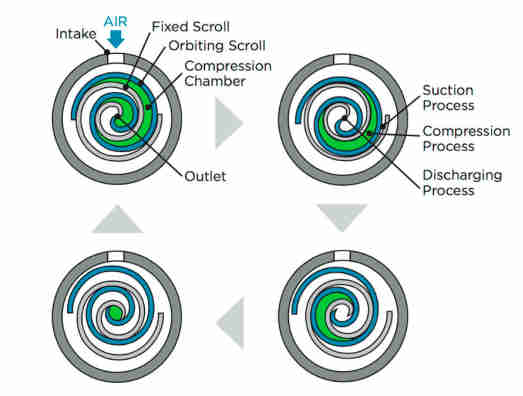

Working Principle

Principle

---The orbiting scroll and fixed scroll housing are mated to create the compression chambers. --- The continual movement of the orbiting scroll moves atmospheric air from the intake toward to the center, compressing the air into progressively smaller areas. --- The compressed air is discharged from the exhaust port at the center of the fixed scroll plant.

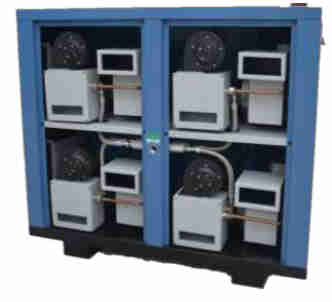

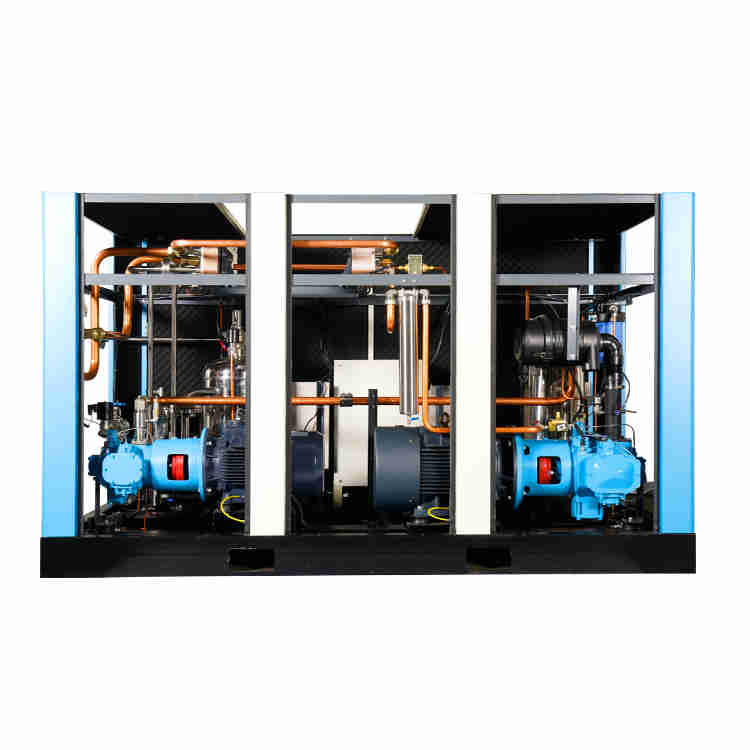

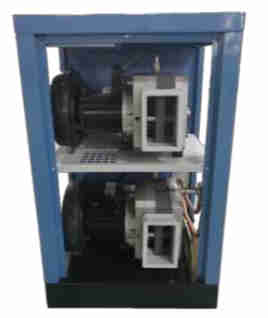

Multi air-ends.

2-4 sets of scroll air-ends built in one.

To save energy, we consider many kinds of using situation and set main air end and slave air end start, stop and self-rotation automatically are according with the air demand.

Maximum prolong the compressor service time and save the energy cost.

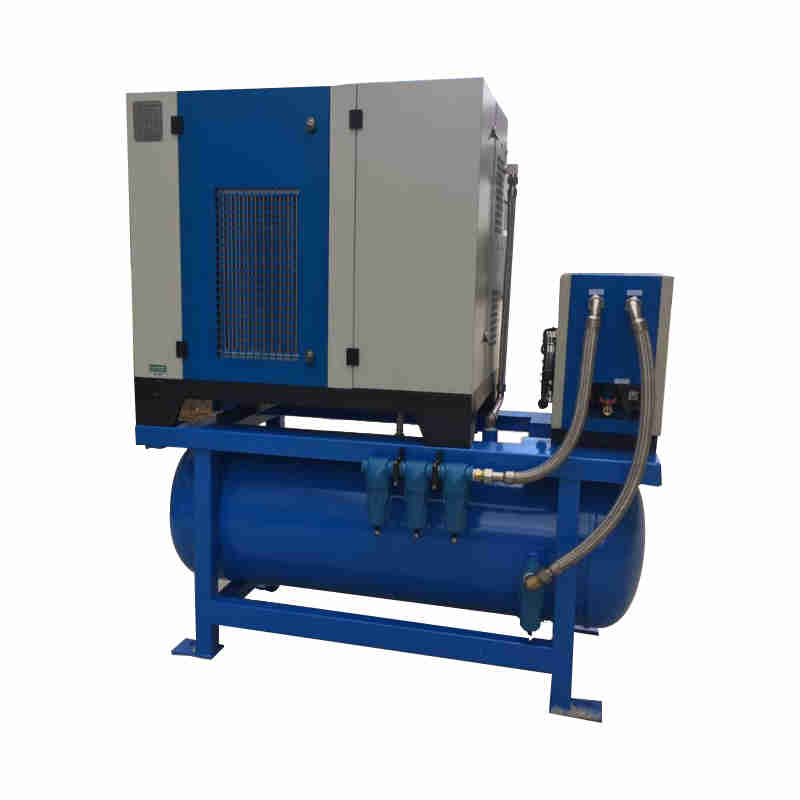

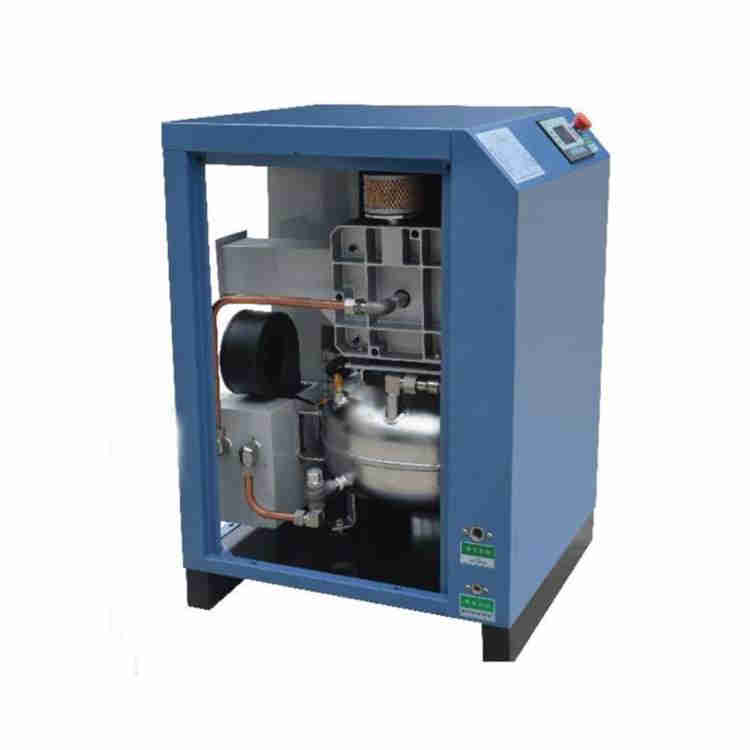

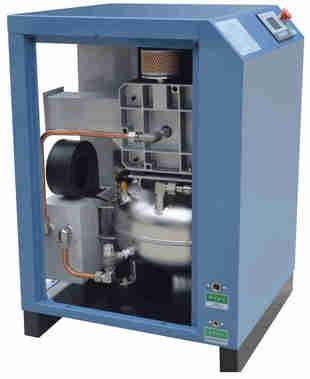

single air end with air tank

Multi air-ends modular design

2-4 pcs scroll air-end built in one

Configuration

7~10 bar Series

2~5 bar Series

Two-stage Energy-saving Series

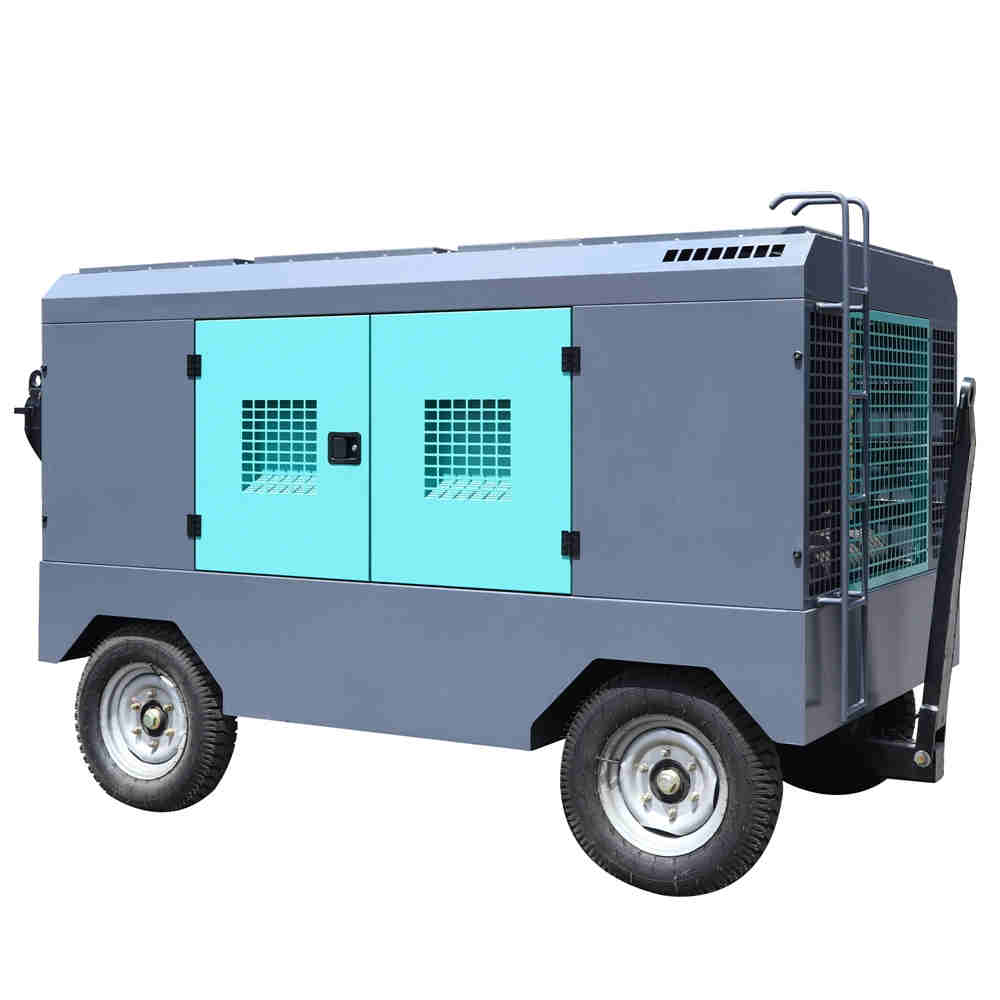

Diesel&Electric Portable Series

12~16 bar 4-in-1 Series

1 Phase Small Screw Series

16~40 bar Oil-free Screw Type

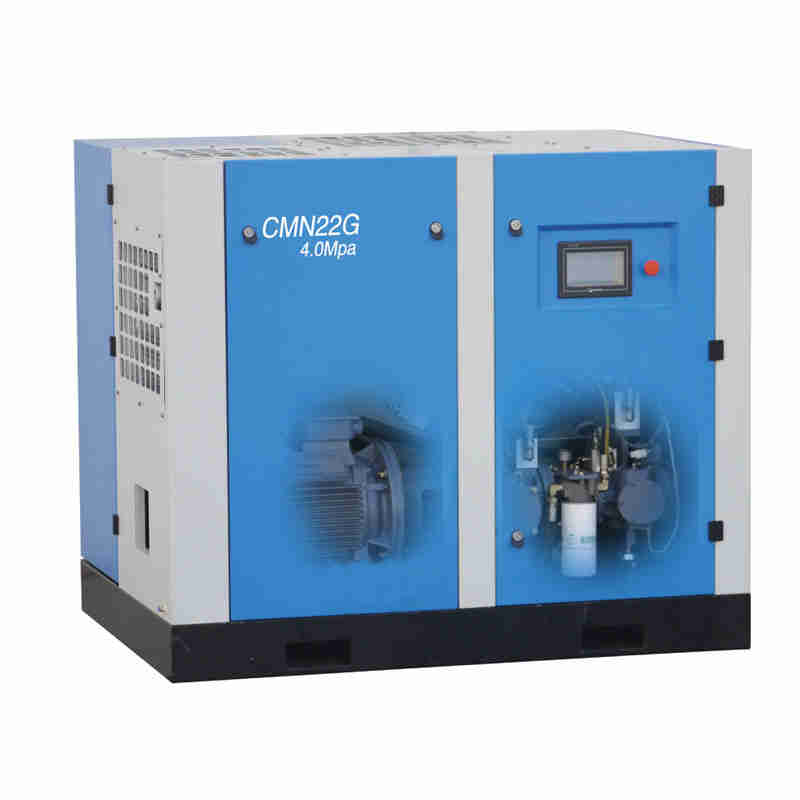

7~10 bar Oil-free Screw Type

2~5 bar Oil-free Screw Type

2-stage Oil-free Screw Type

8~12 bar Oil-free Scroll Type

8~12 bar Oil-free Scroll Air-end

View More

What we can supply:

* Oil-injected Screw Air Compressor (2~16 bar)
* All-in-one Screw Air Compressor with Tank, Dryer, and Filters (7~16 bar)
* Single-phase Small Screw Air Compressor for Home use (8~10 bar)
* Water-injected Oil-free Screw Air Compressor (2~40 bar)
* Oil-free Scroll Air Compressor (8~12 bar)
* Diesel&Electric Engine Portable Screw Air Compressor (8~30 bar)
* Air Dryer, Air tank, Filters, and other Spare parts
