Touch Control 60W Small and Portable Jewelry Laser Welding Machine

Jewelry Laser Welding MachineProduct advantages-Small and Portable-Support 24 hours continuous work-No deformation after welding-Firmly welding quality-Melting fully, without trachoma, no trace repair-Subtle laser spot leads subtle welding qualityApplicationsGold Jewelry Repair Laser WeldingElectron......

Send Inquiry

Product Description

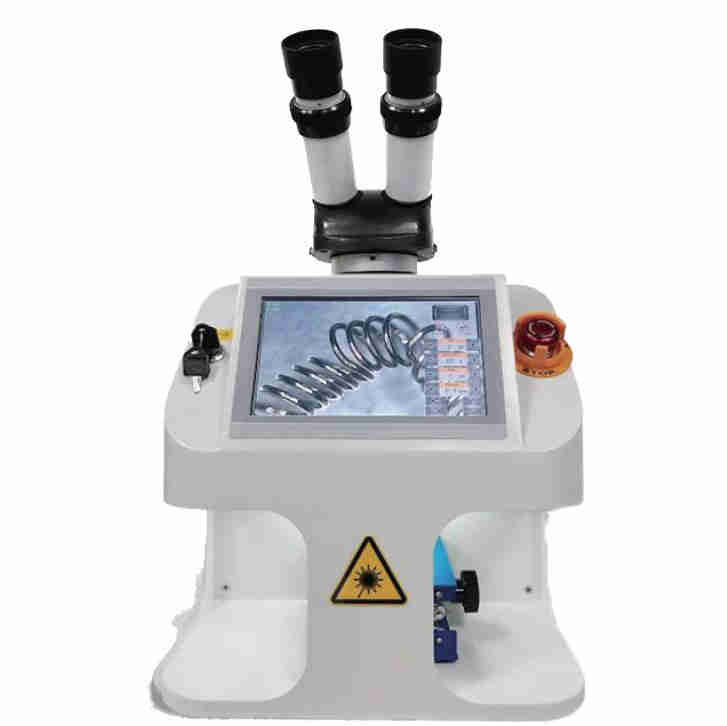

Jewelry Laser Welding Machine

Product advantages

-Small and Portable

-Support 24 hours continuous work

-No deformation after welding

-Firmly welding quality

-Melting fully, without trachoma, no trace repair

-Subtle laser spot leads subtle welding quality

Applications

Gold Jewelry Repair Laser Welding

Electronic Components Laser Welding

Lithium Battery Laser Welding

Mobile Phone Parts Laser Welding

Precision Connector Laser Welding

Battery Industry Laser Welding

Communication Industry Laser Welding

Mechanical Parts laser Welding

Watch Glasses Laser Welding

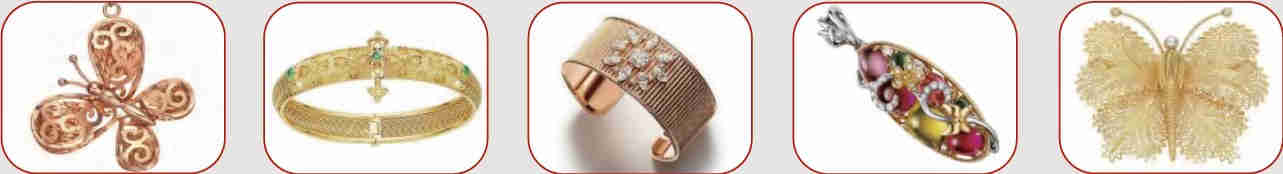

Product samples

For more details, please click here to contact us!

The Output Voltage	110V-240V 50Hz-60Hz
Combo Laser Welding Frequency	10-150Hz
Pulse Width	O1-10ms
Spot Size Adjustable	0.2~0.8mm
Maximum Laser Power	60W
Maximum Laser Pulse Energy	6J

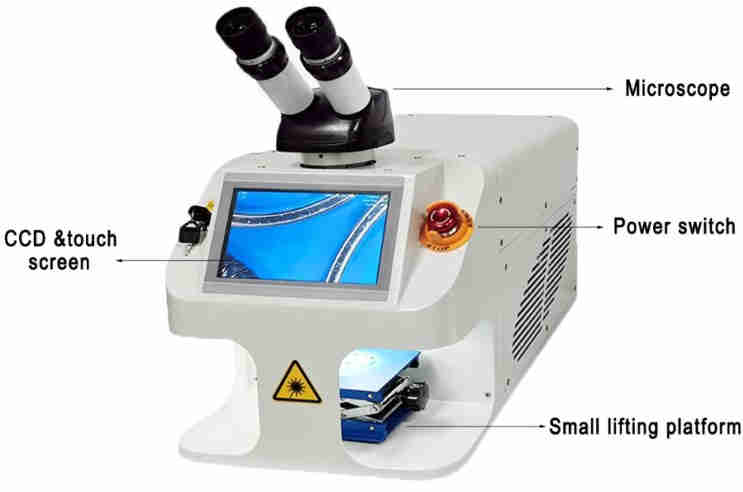

Aiming and Positioning	Built-in Camera System and Positive Mirror
Ambient Temperature	<30°C
Cooling Method	Air Cooling
Operation Method	Touch Control
Laser Wavelength	1080nm
Machine Size	510mm295mm395mm

Key Features and Benefits: 1. Precision Welding: Jewelry laser welding machines provide precise and controlled welding capabilities. The laser beam can be accurately focused and adjusted, allowing for fine and intricate welding on small and delicate jewelry components. This ensures minimal material loss and preserves the integrity of the piece. 2. Non-contact Welding: Laser welding is a non-contact process, meaning the jewelry piece does not come into direct contact with the welding tool. This eliminates the risk of physical damage or distortion, making it suitable for delicate gemstones, pearls, and heat-sensitive materials. 3. Versatile Applications: Jewelry laser welding machines can be used for a wide range of jewelry repairs and manufacturing tasks. They are capable of welding various types of metals used in jewelry making, including gold, silver, platinum, stainless steel, and more. Common applications include ring resizing, prong re-tipping, chain repairs, soldering jump rings, and general jewelry assembly. 4. Micro Welding Capabilities: Jewelry laser welding machines offer the ability to perform micro welding tasks. The focused laser beam can create small and precise welds, ideal for intricate filigree work, repairing tiny chains, and working on detailed jewelry designs. 5. Adjustable Parameters: These machines typically offer adjustable parameters, such as power, pulse duration, and spot size. This allows operators to fine-tune the welding process based on the specific jewelry piece and desired results. 6. Minimal Heat-Affected Zone: Laser welding produces a concentrated heat source, resulting in a smaller heat-affected zone compared to traditional welding methods. This means that less surrounding material is affected by the welding process, reducing the need for additional polishing or refinishing work after welding. 7. Enhanced Productivity: Jewelry laser welding machines offer fast welding speeds and efficient workflow. Operators can quickly set up and execute welding tasks, resulting in increased productivity and shorter turnaround times. 8. Easy Operation: Jewelry laser welding machines are designed to be user-friendly, with intuitive interfaces and controls. They are often equipped with microscope viewing systems that provide enhanced visibility and precision during welding operations.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
