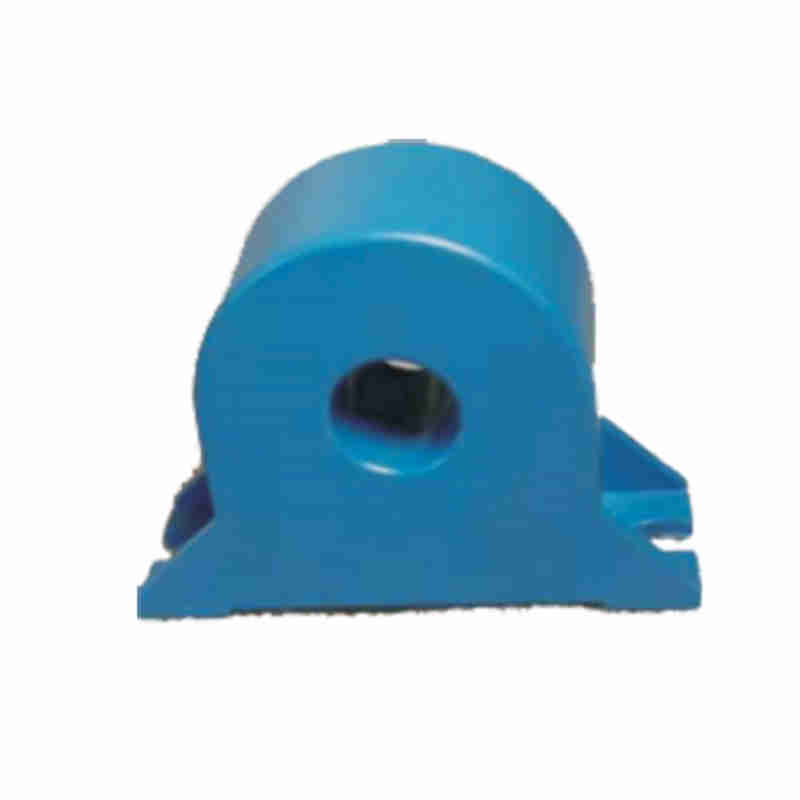

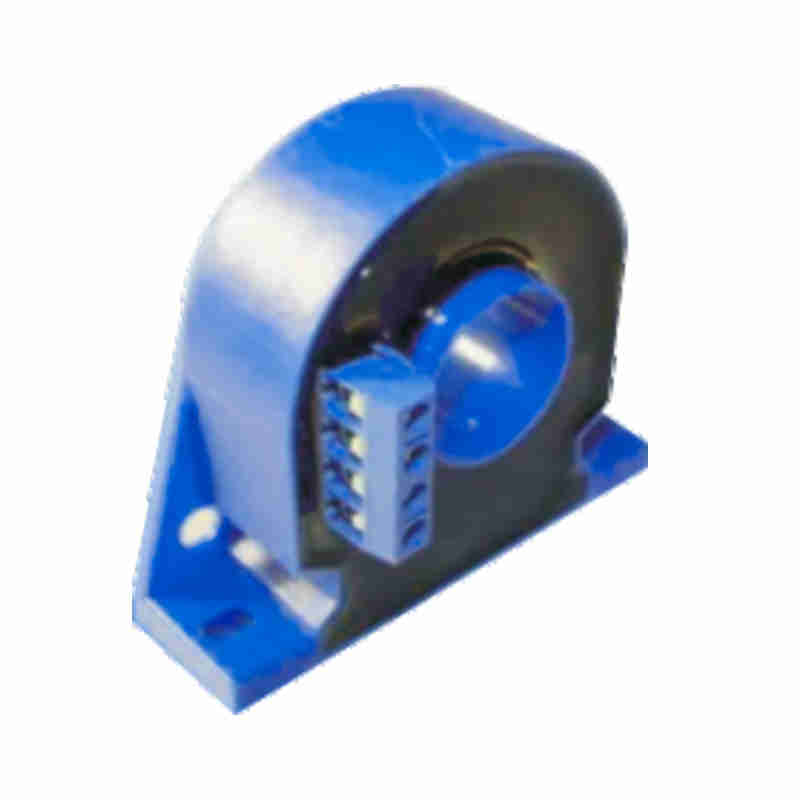

SITD Series Magnetic Balance Current Sensor for DC Motor Railway Communication

Quick and easy installationHigh precision, high reliability, low cost testingLinear output, fast responseVarious output currents and voltagesStrong resistance to external magnetic field interferenceModelSITD10GSITD20GSITD30GSITD40GSITD50GPrimary rated input current0~±10A0~±50A0~±50A0~......

Send Inquiry

Product Description

Quick and easy installation

High precision, high reliability, low cost testing

Linear output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Model	SITD10G	SITD20G	SITD30G	SITD40G	SITD50G
Primary rated input current	0~±10A	0~±50A	0~±50A	0~±50A	0~±50A
Primary current measurement range	120%
Secondary rated output	0-5V0-10V0-20mA4-20mA
Working power supply	＋12±5%V
Current consumption	≤28mA
Accuracy	≤0.5%
Linearity	≤0.2%
Offset voltage	TA=25℃，≤±25mV
Temperature drift	≤±0.08%/℃
Response time	≤5μs
Load resistance	≤250Ω
Tracking speed	≥50A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	2.5kV/50Hz/1min×1mA

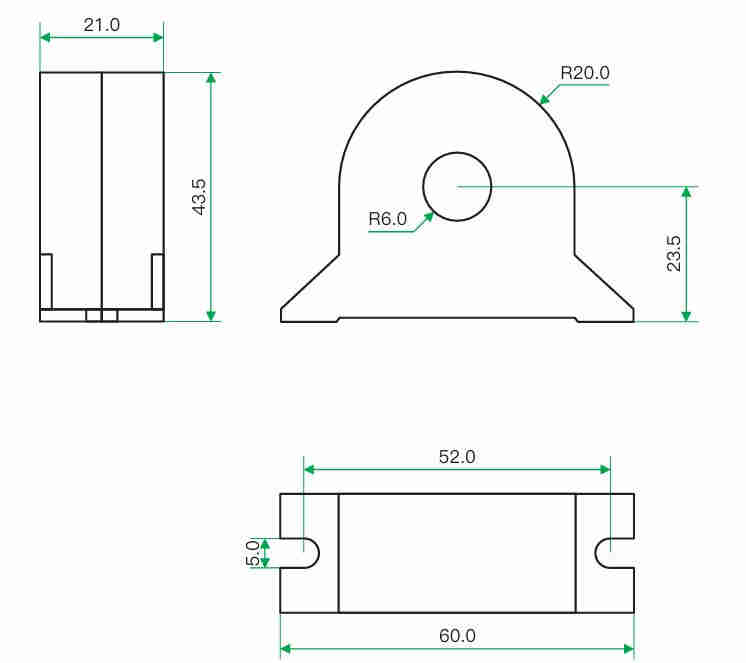

Installation	Screw-fastened flat surface installation

DC motor, chopper, variable frequency speed regulator, rectifier, industrial automation control, electrochemical current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotive, communication power supply

Ever-Power Technology Co., Ltd. was established in 2010. It is a high-tech enterprise engaged in system research and development, production, sales and service in the fields of high-speed signal processing, electromechanical control, etc. The company is guided by military development, driven by scientific and technological innovation, and supported by talent development. It has been deeply involved in the electronics industry for more than ten years and has a high-quality, high-tech and high-level engineering and technical team. Electricity sensors, transmitters, and mutual inductors are the electricity isolation detection products launched by Ever-Power Technology in recent years in response to market demand and combined with the company's own product structure advantages. After years of continuous improvement and updating of this type of product, several major series and hundreds of specifications have been formed. The products are widely used in communications, instrumentation, metallurgy, railways, navigation, aerospace and other fields and are generally recognized by users.
