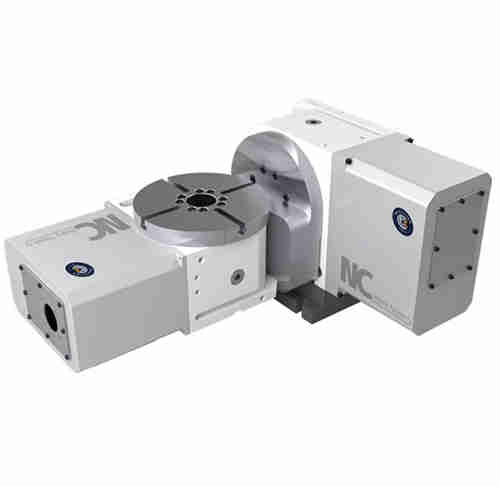

RTS-170 Cnc Machining Center 5 Axis Accessories for Numerical Control Machine

High precision, high performance, high efficiency Five axis machining, modular designOptional fixture oil circuit, Optional hydraulic brakeProduct ModelRTS-170Servo motor (optional)β2iFANUC;β8iFANUCPanel Size170mmReduction Ratio1:121 ;1:90Disk Aperture40mmMaximum Rotation Speed Of Worktable33.3 r.p.......

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

Product Model	RTS-170	Servo motor (optional)	β2iFANUC;β8iFANUC
Panel Size	170mm	Reduction Ratio	1:121 ;1:90
Disk Aperture	40mm	Maximum Rotation Speed Of Worktable	33.3 r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±110°deg	Segmentation Accuracy	20″sec;15″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	4″sec;4''sec
0 ° Time Disk Height	255mm	Locking torque of rotating shaft	412N.m;450N.m
90° Time Center Height	135mm	Brake Pressure	;15Kg/cm²
Net Weight (about)	180Kg	Allowable Cutting Force	18Kgf-m;30Kgf-m
Horizontal placement	80KG	Ninety ° Time	50KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
