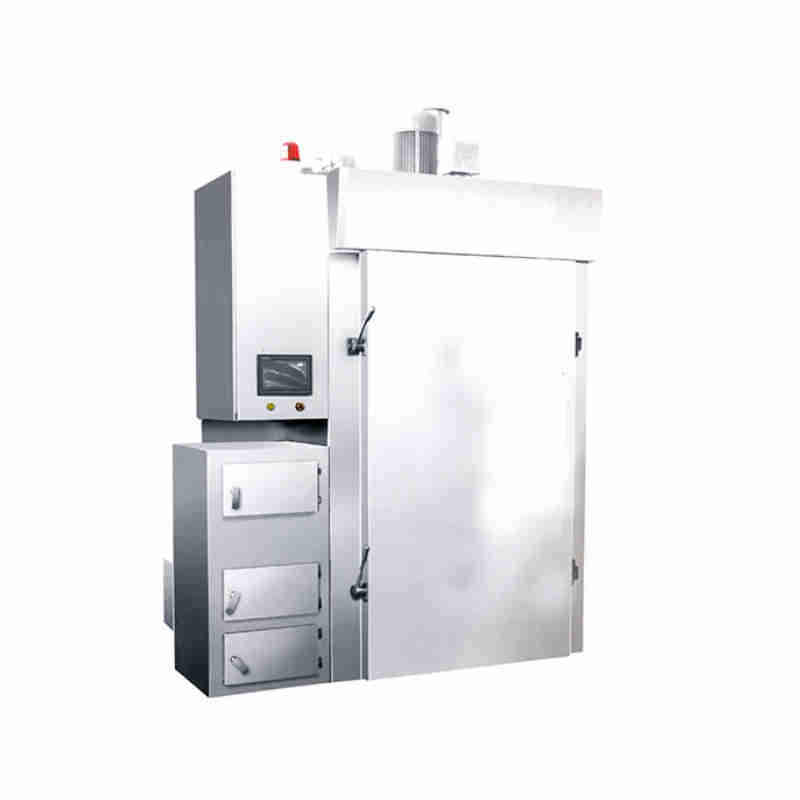

QZX Series Automatic Smoking Oven Type for Meat Maturation Cooking Drying Baking Smoking

Product descriptionThe smoke oven is one of the indispensable equipment in the process of meat product maturation. This machine has the functions of steaming, drying, humidifying and drying, baking, smoking, exhausting, cleaning, etc. After professional research and production, according to customer......

Send Inquiry

Product Description

Product description

The smoke oven is one of the indispensable equipment in the process of meat product maturation. This machine has the functions of steaming, drying, humidifying and drying, baking, smoking, exhausting, cleaning, etc. After professional research and production, according to customer requirements and market feedback information, the product has been improved more reasonably, so that its heating speed and smoke weight effect can reach the ideal effect. The main frame interlayer is filled with imported high-temperature resistant polyurethane foam material for one-time molding, which enhances the insulation effect, has good sealing, and is energy-saving and efficient. The touch screen, programmable controller, relay, solenoid valve and other key electrical components of the fully automatic smoke recording oven are all imported products. The large window human-machine interface vividly and intuitively displays the operating status of the device. The state parameters such as time, temperature, humidity, exhaust size, etc. can be adjusted at any time during operation. The operation is very simple. It has an excellent smoke generation and circulation system, which can make the smoke in the oven evenly distributed, so that the meat products are evenly colored and beautiful in color, ensuring that the product has a high yield rate.

Type	QZX-250	QZX-500	QZX-750	QZX-1000
Production capacity(kg)	250	500	750	1000
Power(kw)	6.12	10.12	14.12	18.12
High steam pressure(Mpa)	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Low steam pressure(Mpa)	0.1-0.2	0.1-0.2	0.1-0.2	0.1-0.2
High pressure oven temperature	<85	<85	<85	<85
Low pressure oven temperature	<100	<100	<100	<100
Water pressure(Mpa)	0.2	0.2	0.2	0.2
Standard trailer	1000x1030x1980	1000x1030x1980	1000x1030x1980	1000x1030x1980
Machine size(mm)	1290x1510x2600	2360x1510x2600	3430x1510x2600	4490x1510x2600
Instalalion size(mm)	5000x3000x3600	6000x3000x3600	7000x3000x3600	8000x3000x3600
weight(kg)	1800	2500	3200	3900

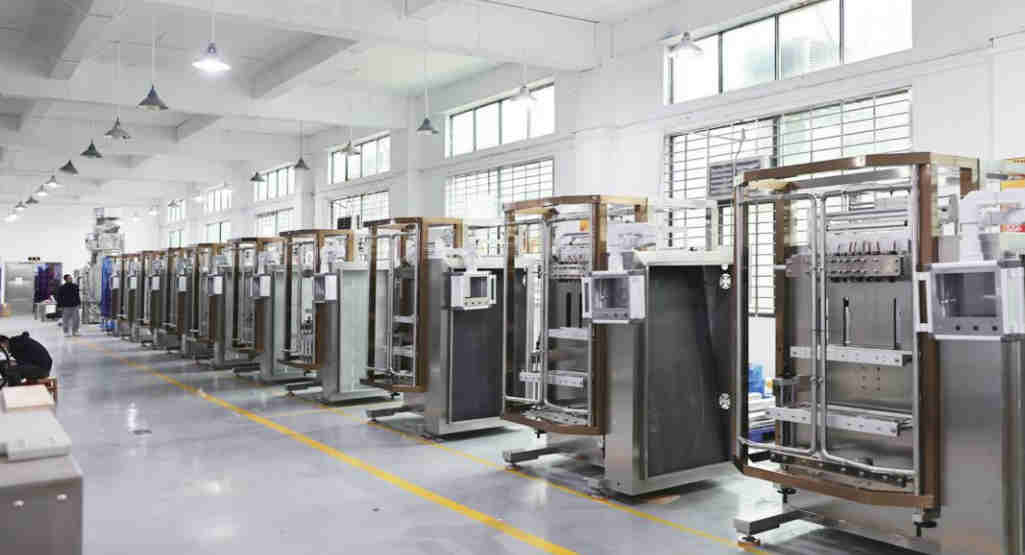

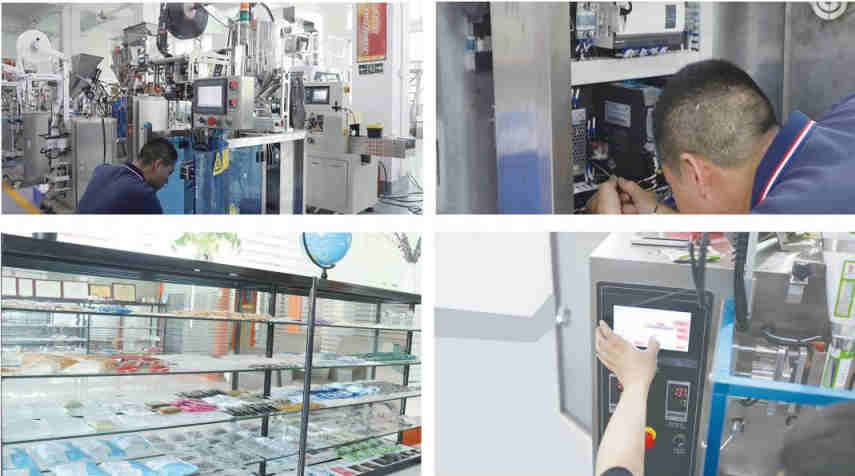

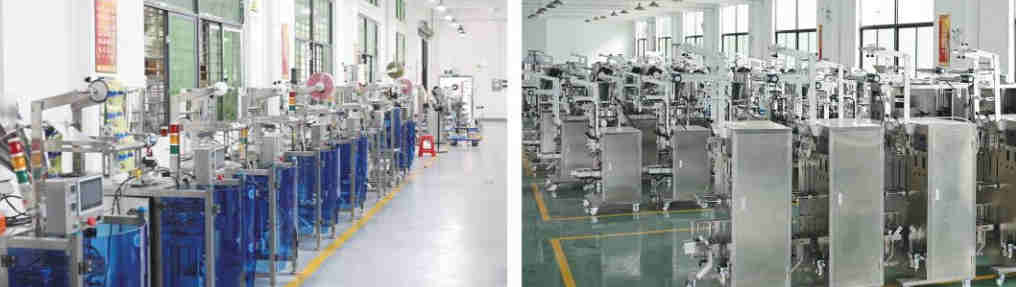

The company has excellent basic processing equipment and has multiple CNC machining centers. In combination with market needs, it continuously develops and manufactures high-end equipment. Its main products include vacuum quantitative filling machines, electric aluminum wire punching machines, electric punching machines, high-speed knotting and hanging sausage machines, automatic wire tying machines, frozen meat cutting machines, frozen meat grinders, brine injection machines, high-speed variable frequency chopping and mixing machines, vacuum tumbling machines, vacuum mixers, fully automatic smoking furnaces and other series of varieties. The company always pays attention to international advanced process technology. Electrical appliances, bearings, vacuum pumps and other components are imported products, and all core components are made by machining centers. After careful research and development and design by the team, it has reached international standards.
