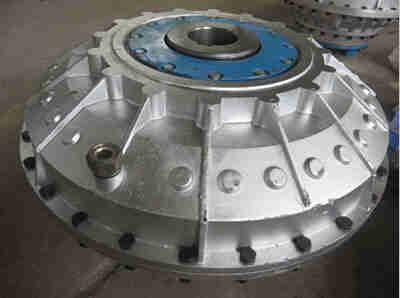

Quick Connect Hydraulic Fluid Coupling

       Belt conveyers, csraper conveyers, and conveyers of all kinds Bucket elevators, ball mills, hoisters, crushers, excavators, mixers, straighteners, cranes, etc.

     Without special requirements the following technical data sheet and power chart are used to select the proper size of fluid coupling with oil medium according to the power transmitted and the speed of motor,e,i,the input of the fluid coupling.
     When ordering,please specify the dimensions of the shaft ends of lmotor and driven machine(or reducer)including diamenter,tolerance or fit of the shafts(if no tolerance or fit is specified,the bores will be machined th H7),fit length of the shafts,width and depth of the keys (of notice the standard No.enforced).For ordering the fluid couplings with belt pulley,brake puley or othe special requirements please state the technical data in detail.

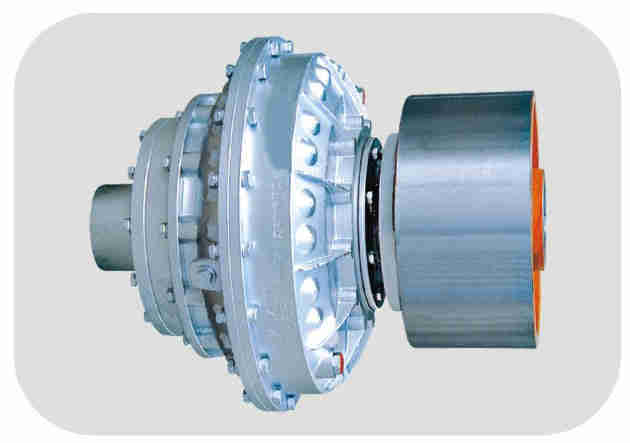

     YOXz is a coincidence machine with moving wheel which is in the output point of the coincidence machine and is connected with elastic axle connecting machine (plum blossom type elastic axle connecting machine or elastic pillar axle-connecting machine or even the axle-connecting machine designated by customers). Usually there are 3 connection types.
    YOXz is inner wheel driver which has tight structure and the smallest axle size.The fittings of YOXz have a wide usage, simple structure and the size of it has basically be unified in the trade.The connection style of YOXz is that the axle size of it is longer but it is unnecessary to move the electromotive machine and decelerating machine. Only demolish the weak pillar and connected spiral bolt can unload the coincidence machine so it is extreme convenient. Customer must offer the size of electromotive machine axle (d1 L1) and decelerating machine axle (d2 L2). The wheel size (Dz Lz C) in the table is just for reference, the actual size is decided by customers.
