Product Description

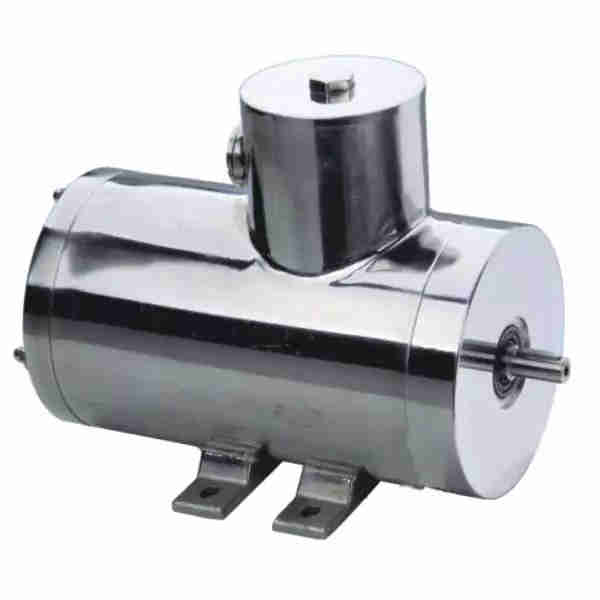

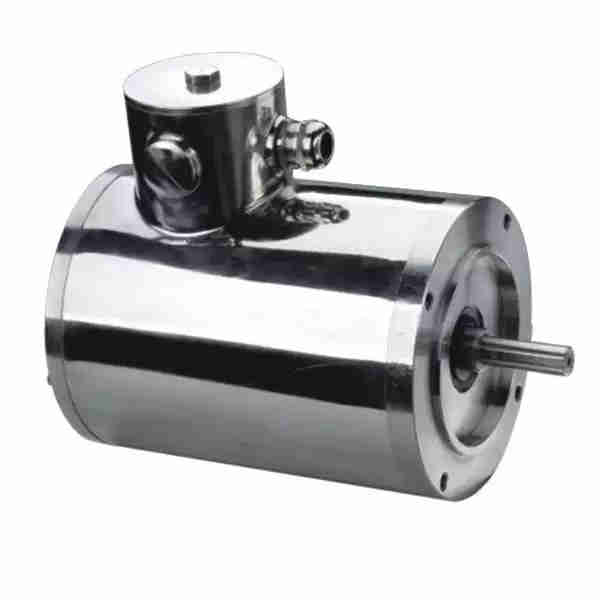

Description Of Stainless Steel Motor
Raydafon stainless steel motor is hygienic in design, smooth in body, and IP66 in protection grade, suitable for all flushing and
sanitary applications. Raydafon motor is designed to withstand frequent high pressure and high-temperature flushing. All external components, including the motor shaft, are 300 series stainless steel. This provides excellent corrosion resistance because there is no paint falling off, and it is resistant to the disinfection chemicals used in the cleaning process. It provides a lasting solution in which hygiene is crucial.
Unlike standard motors, Raydafon stainless steel series has "clean lines" and no heat sinks. In the design, considering the
cleanliness, it has no paint fragments or peeling, and no surface will rust. The waste can be easily washed away without leaving any residue, and the motor can be safely used in food processing. Even the nameplate is laser etched on the shell to reduce the area where bacteria are latent.

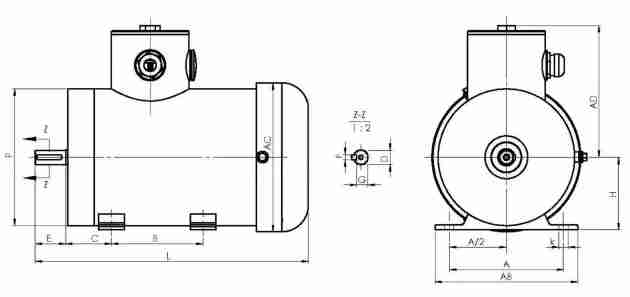

Frame Type	Poles	A	A/2	B	C	D	E	F	G
H	K	P	Shaft Hole	AB	AC	AD	71	2, 4, 6	112
56	90	45	14	30	5	11	71	7	134
M5	140	146	129	80	2, 4, 6	125	62.5	100	50
19	40	6	15.5	80	10	144	M6	150	156
135	90S	2, 4, 6	140	70	100	56	24	50	8
20	90	9	164	M8	164	176	147	90L	2, 4, 6
140	70	125	56	24	50	8	20	90	9
164	M8	164	176	147	100	2, 4, 6	160	80	140

Parameters of stainless steel motor
IEC Stainless steel motors have the detailed specifications as follows

No	IEC Frame size	Power (kW)	Mounted	Mounted
1	IEC63	0.18kw	B3, B5, B14, B34, B35	IP66, IP69K
2	IEC71	0.25kw, 0.37kw
3	IEC80	0.55kw, 0.75kw
4	IEC90	1.1kw, 1.5kw
5	IEC100	2.2kw, 3.0kw
6	IEC112	4.0kw
7	IEC132	5.5kw, 7.5kw

NEMA Stainless steel motors have the detailed specifications as follows

No	NEMA Power	NEMA Frame
1	1/3HP-2HP TEFC, TENV 3PH	56C foo (footless)
2	3HP-5HP TEFC, TENV 3PH	182TC, 184TC Foo (footless)
3	7.5HP-20HP TEFC 3PH	213-256TC Foot(footless)
4	1/3HP-5HP JM/JP TEFC, TENV 3PH	56C-184TC Foot(footless)
5	7.5HP-20HP JM/JP TEFC 3PH	213-256TC Foot(footless)

Application Of Stainless Steel Motor
Food and chemical processing plants, pharmaceutical applications, and other environments require corrosion-resistant, watertight motors. Consideration and any replacements must be quick and easy.

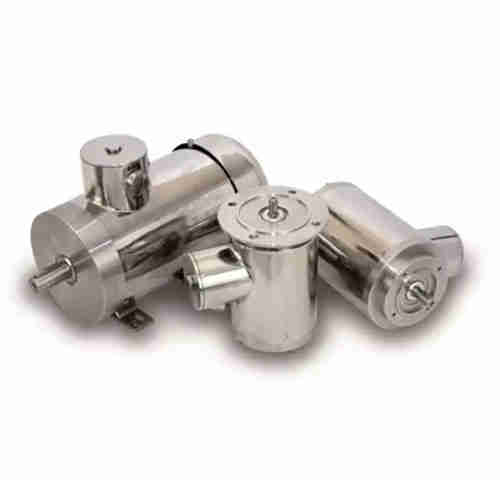

Stainless steel motor:

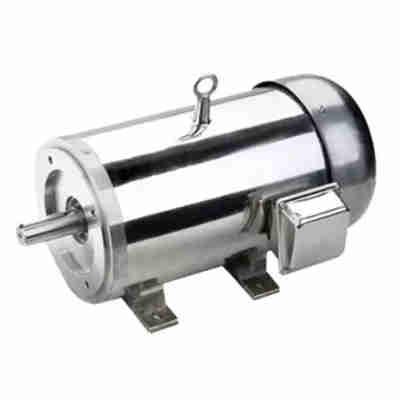

NEMA Stainless Steel Motor
Food Safe Stainless Steel Motor
Washdown duty motor

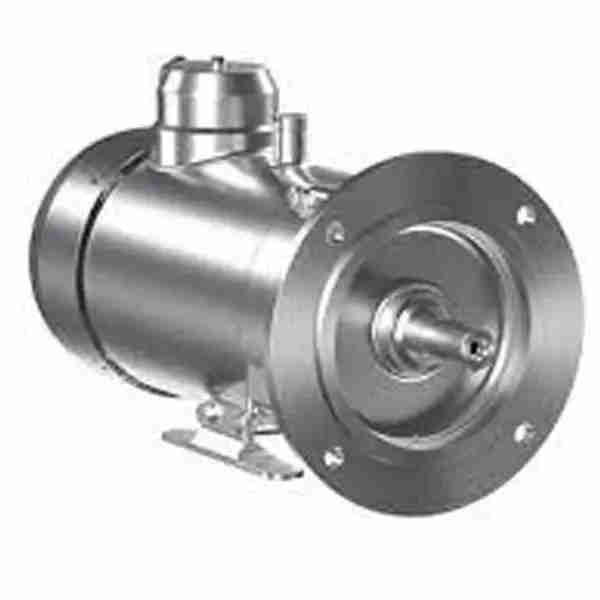

IEC Stainless steel motor
Types of Protection of Stainless Steel Motor
Overcurrent protection:
Overcurrent means that the working current of the motor exceeds its rated value. If it takes a long time, it will overheat the
motor and damage it, so protective measures must be taken.
When overcurrent, the current still flows through the standard path, and its value is smaller than the short-circuit current
value. Overcurrent is generally due to excessive load or incorrect startup. To avoid affecting the regular operation of the motor, the overcurrent protection action value should be slightly larger than the standard starting current.
Overcurrent protection also requires the protection device to be able to act instantaneously. Overcurrent protection generally uses overcurrent relays.

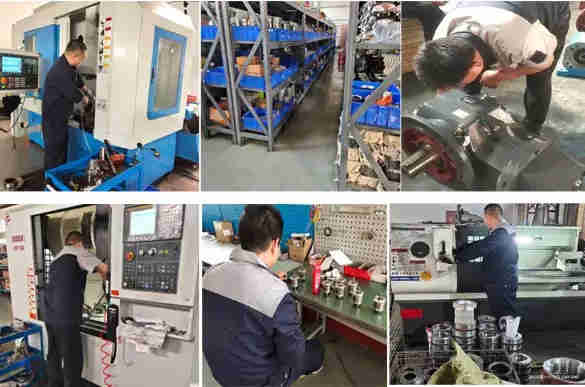

Stainless Steel Motor Manufacturer

1. We are a professional manufacturer with more than 60 years of motor production experience.
2. Export 500000 to 600000 motors to other countries every year.
3. We test the materials before production and conduct three to four tests during production to ensure good product quality,We also produce according to your requirements
4. Best production capacity, best quality control, and best service
5. We can become your OEM manufacturer under your brand authorization.
Our certification
Ul/CSA/CE/ccc certification
Ul/CSA/WTDP certified Laboratory
