PHS Series Right Hand Female Thread Joint Rod End Bearing With Zinc Plated

PHS Rod End Bearing--Rod body with left or right-hand female thread--Outer race lined with bronze liner--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no mainten......

Send Inquiry

Product Description

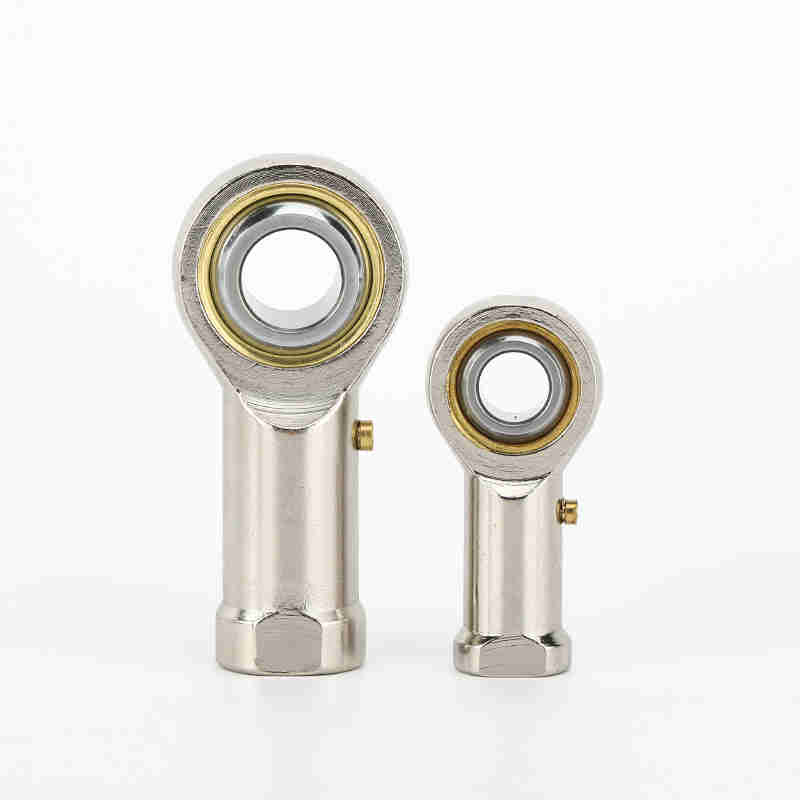

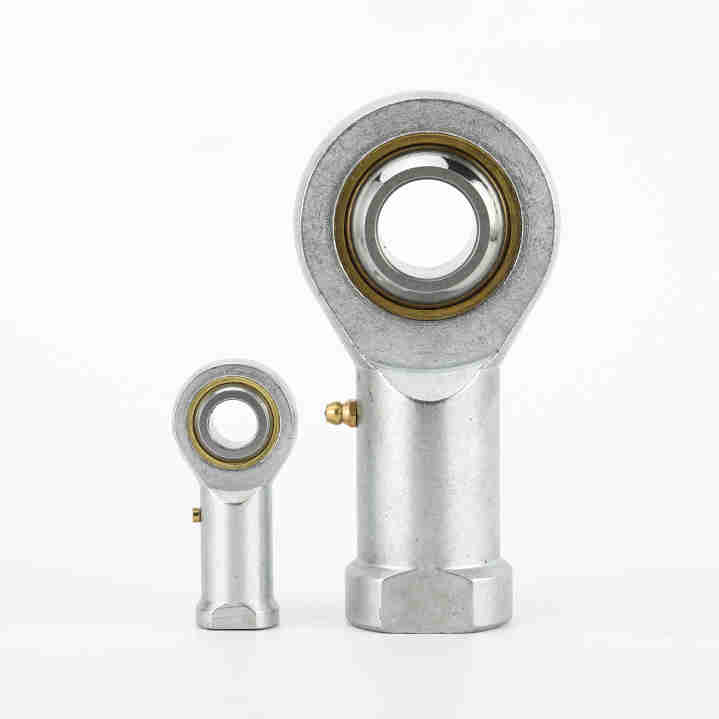

PHS Rod End Bearing

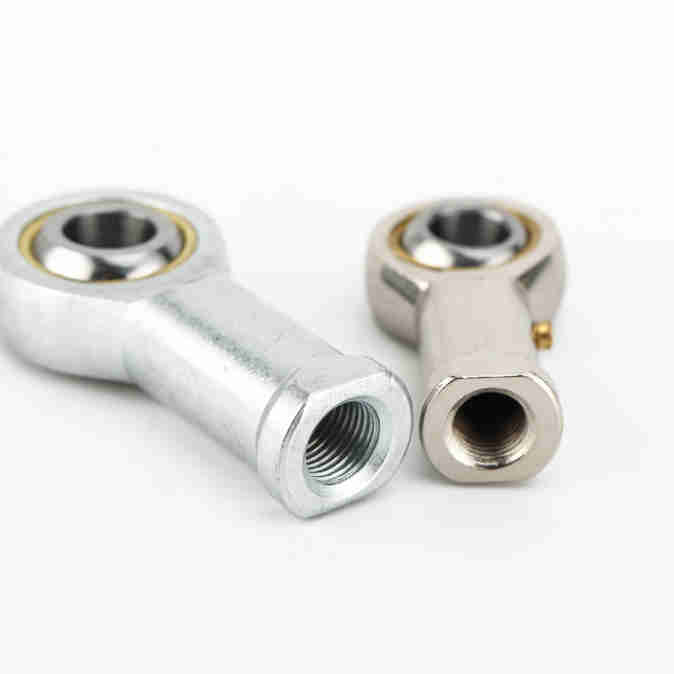

--Rod body with left or right-hand female thread

--Outer race lined with bronze liner

--Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

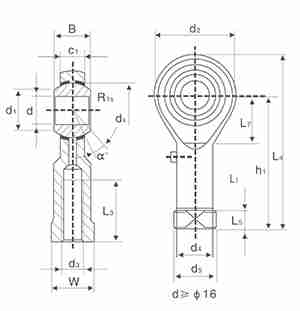

Part Number	Dimensions(mm)					Load ratings(KN)	Weight(g)
	d	d3	B	dyn.c	stat.c0
PHS 5	5	M5*0.8	8	3.25	5.7	15.2
PHS 6	6	M6*1.0	9	4.3	7.2	22.3
PHS 8	8	M8*1.25	12	7.2	11.6	42.2
PHS 10	10	M10*1.5	14	10	14.5	68.6
PHS 10-1	10	M10*1.25	14	10	14.5	68.6
PHS 12	12	M12*1.75	16	13.4	17	104
PHS 12-1	12	M12*1.25	16	13.4	17	104
PHS 14	14	M14*2.0	19	17	24	143.5
PHS 14-1	14	M14*1.5	19	17	24	143.5
PHS 16	16	M16*2.0	21	21.6	28.5	197.5
PHS 16-1	16	M16*1.5	21	21.6	28.5	197.5
PHS 18	18	M18*1.5	23	26	42.5	279
PHS 20	20	M20*1.5	25	31.5	42.5	350
PHS 22	22	M22*1.5	28	38	57	478
PHS 25	25	M24*2.0	31	47.5	68	688
PHS 28	28	M27*2.0	35	58	78.5	929
PHS 30	30	M30*2.0	37	64	88	1076
PHS 30-1	30	M27*2.0	37	64	88	1076

For left-hand thread,please and surffix“L”,e.g. PHSL 8
If need the stainless steel material please to add “S”in front of the model for example:SPHS 8
