Product Description

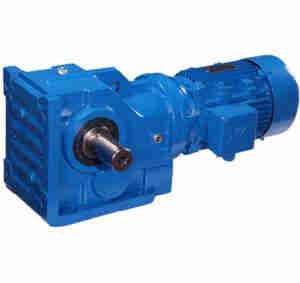

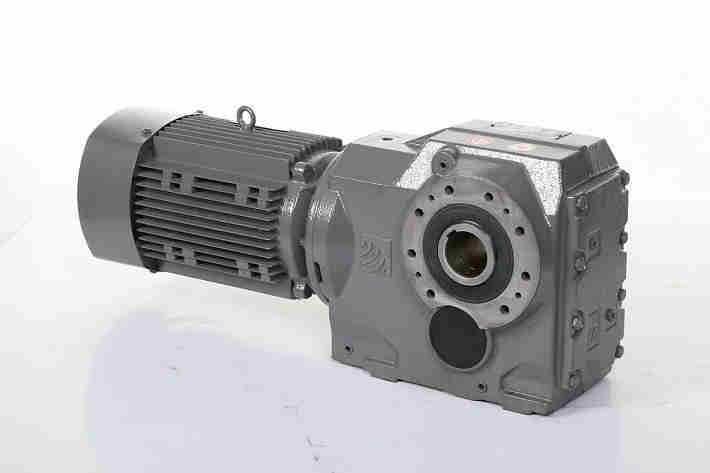

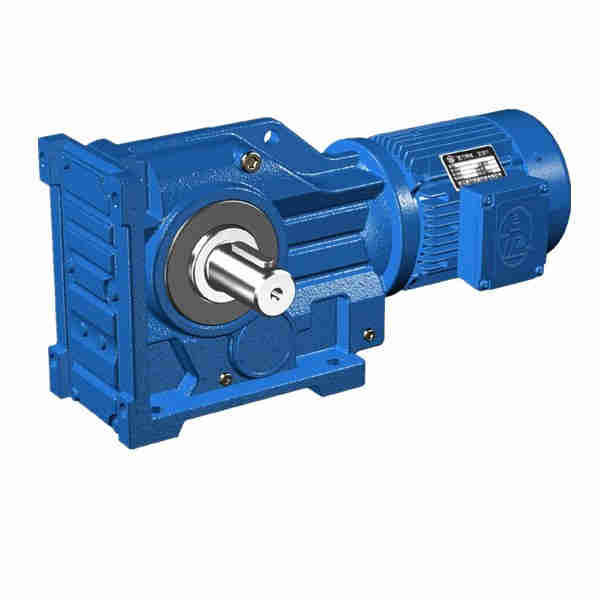

K Series Helical Bevel Reduction Gearbox

Features of products

1. Highly Standard Modular Designed: The products are easily connected with and driven by different types of motors and various input power. The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solution for varied requirements.

2. Ratio: Featured many closely divided ratios and wide range of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.

3. Mounting Arrangement: No strict limitation to the mounting arrangement.

4. High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.

5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.

6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.

7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.

8. Large radial loading ability.

9. Axial load ability of up to 5% of radial load.

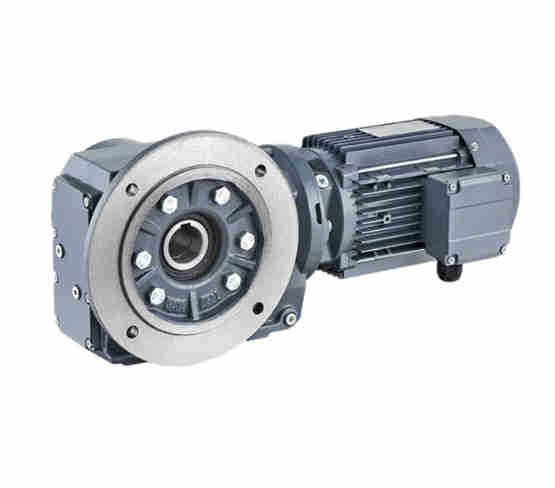

Model:	K Series - Foot-mounted, solid shaft output KAB Series - Foot-mounted, hollow shaft output KA Series – Keyed hollow shaft output KF Series – B5 Flange-mounted, solid shaft output KAF Series – B5 Flange-mounted, hollow shaft output KAZ Series – B14 Flange-mounted, hollow shaft output KAT Series – Hollow shaft output, torque arm KH, KHB, KHF, KHZ Series – Hollow shaft output, shrink disk KV, KVB, KVF, KVZ Series – Hollow shaft output, splined hollow shaft K(KA, KF, KAF, KAB, KAZ)S Series – Solid shaft input
Housing	Cast Iron
Input power	0.12-200kw
Output torque	10-61900N.m
Output speed	0.08-261rpm
Bearing	C&U Bearing,NSK,SKF or on request
Ratio	5.36~178.37
Installation Form	Foot, Flange, Shaft Mounted
Seal	SKF,CTY,CFW or on request
Gears	Helical-bevel Gears
Input Configurations	Equipped with Electric Motors Solid Shaft Input IEC-normalized Motor Flange
Applicable Motors	Single Phase AC Motor, Three Phase AC Motor Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor
Output Configurations	Solid Shaft Output Hollow Shaft Output
nstallation	Foot-mounted B5 Flange-mounted B14 Flange-mounted Shaft-mounted
Lubrication	Oil-bath and Splash Lubrication

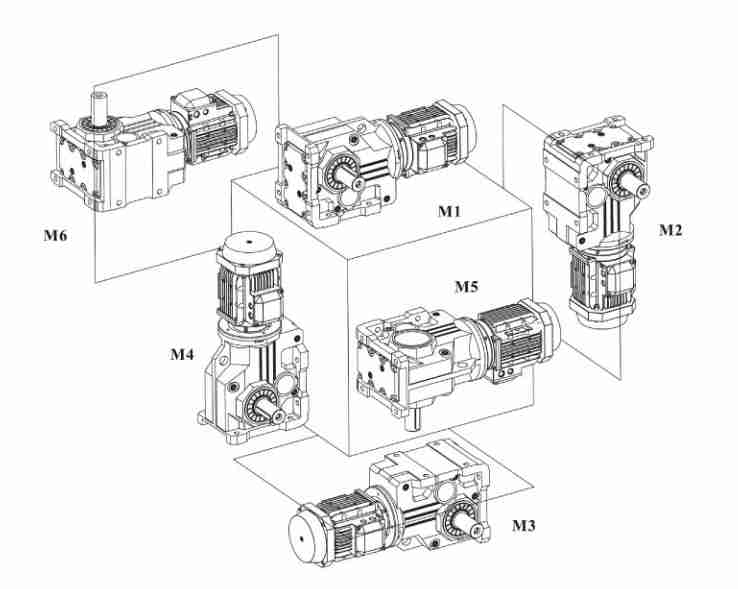

Installation Method

For more models, please contact us！
