MJS3 Full-automatic Lathe Machining Center Roller Grinding Machine CNC Tap Chamfer Grinder

MJS3 Full-Automatic CNC Tap Chamfer GrinderThis full automatic CNC tap Chamfer grinder is applied folgrinding of M3-M20 tap's blade (shovel) on the top ofstraight fluteor helix flute.Our patented design for grinding chamfer, and automaticachanging Loader,make the long-time unmanned automatigrind......

Send Inquiry

Product Description

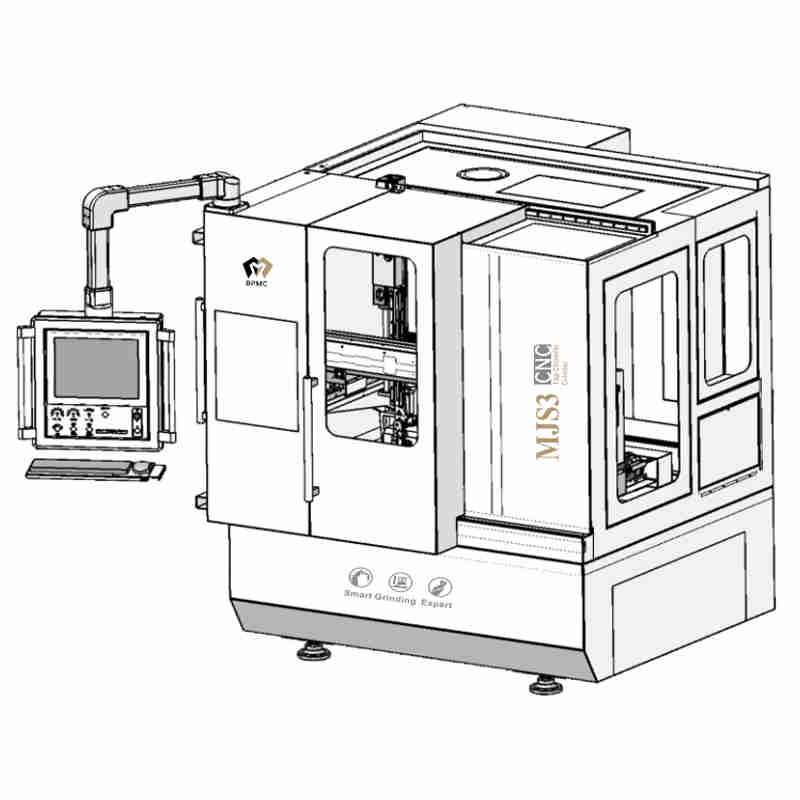

MJS3 Full-Automatic CNC Tap Chamfer Grinder

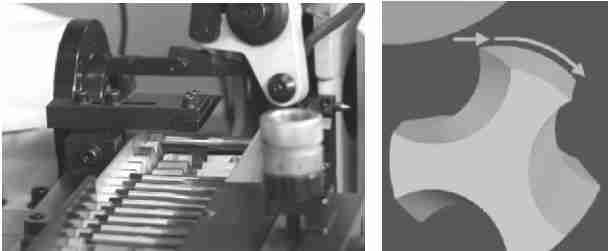

This full automatic CNC tap Chamfer grinder is applied folgrinding of M3-M20 tap's blade (shovel) on the top ofstraight fluteor helix flute.Our patented design for grinding chamfer, and automaticachanging Loader,make the long-time unmanned automatigrinding very easily realized.

Grinding Elec. Spindle			Linear Controlled Resolution	0.001mm
Single Spindle Taper Hole	1:10 internal Cone	Rotary Controlled Resolution	0.001°
Spindle Power	5kw	Controller	BPISYNTEC/FANUCISIEMENS
Travel			Robot Loader
X Axis	100mm	Shank Diameter of Work Piece	4-20mm
Y Axis	Rotate freely	Workpiece Max.Length	50-150mm
Z Axis	50mm	Connected Loading
Rotary Axis (C Axis)			380V/50Hz	10/15kg
Maximum Rotation	200RPM	Size
Standard Taper Hole	MT2#	Length x Width	1900X1950mm
TOOlS Ranige ( Grindatte Tool depends an is Type and Mach ning Requlsement )			Height	1900mm
Diameter	M3-M20	Weight
Length	150mm	Total Weight ( Depends on the Configuration ]	3500kg
Clamping Method	Special Tap square Positioning

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

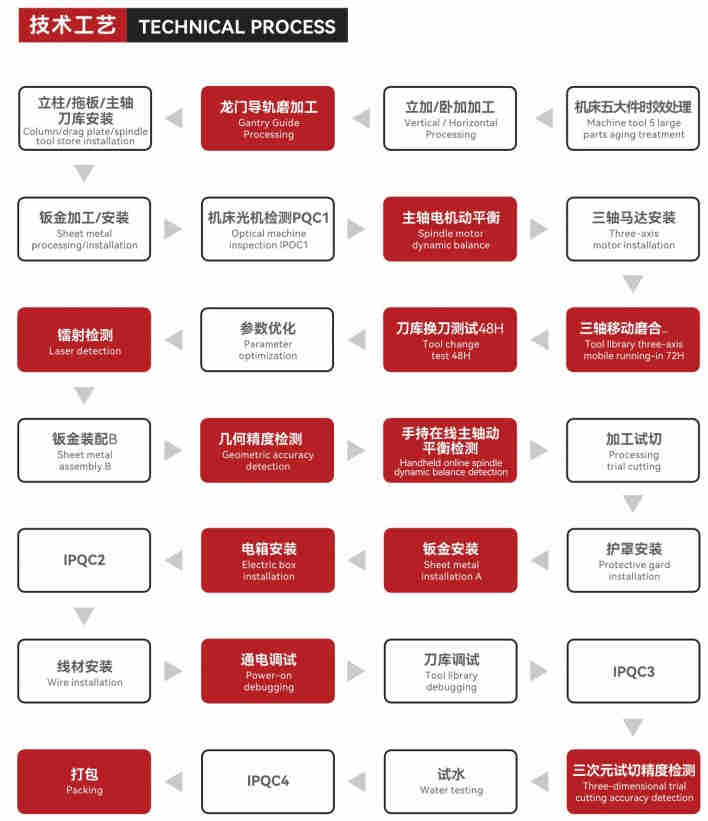

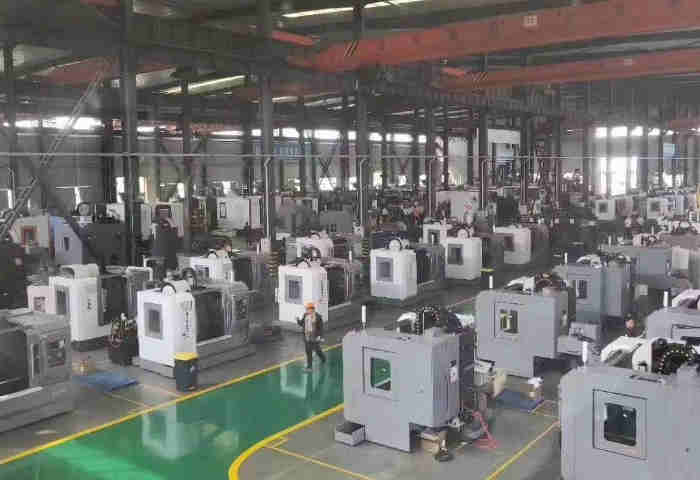

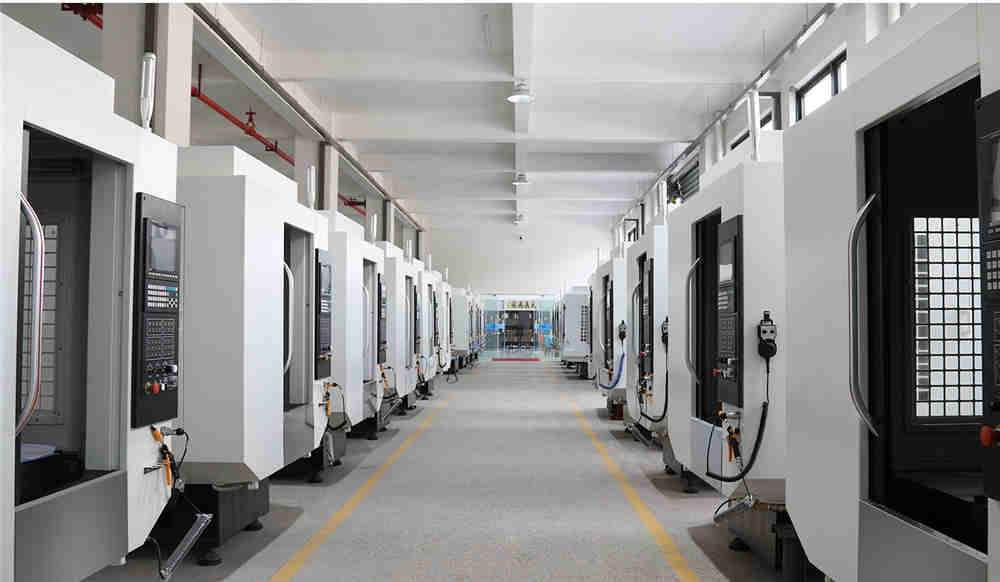

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
