Low Price Guaranteed Quality B14 Face Mounted TEFC Stainless Steel Motor for Food Processing Plant

Description Of Stainless Steel MotorTo ensure reliable consumer protection, the design requirements for food and pharmaceutical machinery have always been high. All components in the machine must also meet these requirements.Since its establishment, Raydafon has continuously developed stainless stee......

Send Inquiry

Product Description

Description Of Stainless Steel Motor
To ensure reliable consumer protection, the design requirements for food and pharmaceutical machinery have always been high. All components in the machine must also meet these requirements.
Since its establishment, Raydafon has continuously developed stainless steel servo motors, gear motors, and torque motors with hygienic designs. A comprehensive range of products can be used with corrosive and effective cleaners, disinfectants, and high-pressure cleaners to achieve CIP.
Raydafon's high-quality and efficient stainless steel motor has ip69k grade, which can be completely waterproof, dustproof, and oilproof. Other features include 1/3 to 20 horsepower ratings, circular welded junction boxes with epoxy encapsulated conductors,304 stainless steel frames, end brackets, junction boxes, and hardware. These continuous working, high-efficiency motors are ideal for use in food and chemical processing plants, pharmaceutical applications, and other environments that require corrosion-resistant, waterproof motors.

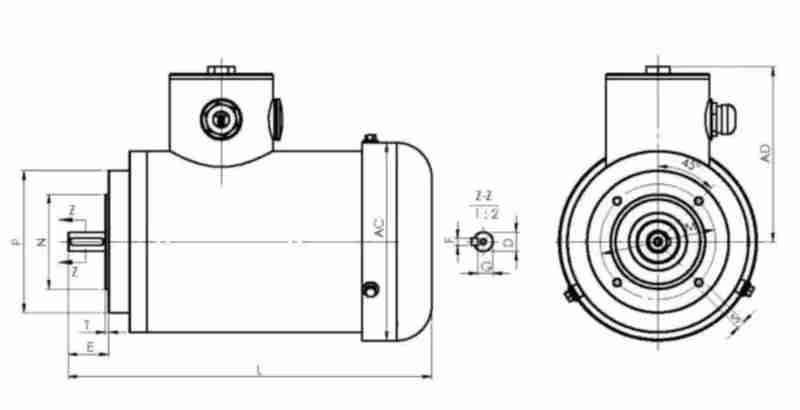

Frame Type	Flange type	Poles	D	E	F	G	M	N	P
R	S	T	Flange hole	shaft hole	AC	AD	71	FT85	2, 4, 6
14	30	5	11	85	70	105	0	M6	2.5
4	M5	134	129	80	FT100	2, 4, 6	19	40	6
15.5	100	80	120	0	M6	3	4	M6	144
135	90	FT115	2, 4, 6	24	50	8	20	115	95
140	0	M8	3	4	M8	176	147	100	FT130

Feature of Our Stainless Steel Motor
Stainless steel servo motor, static torque 0.45 to 20nm, peak torque 64nm
Stainless steel servo reduction motor with planetary gear or bevel gear
The shell adopts stainless steel V2a 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or an anodized aluminum shell
Surface and flange installation (imb5, IMB14)
Protection grade up to ip66k / ip69k under flushing conditions
Large speed regulation range
Ul/CSA certification
EHEDG certification is pending (expected in 2022)
Feedback using a resolver or preface, EnDat, or drive clip encoder
Single cable technology (OCT)
Braking options
AC servo motor, DC servo motor, and AC asynchronous motor
Decentralized servo motor with integrated servo controller
Delivered with servo controller or frequency converter
Custom design

Solve Cases of Stainless Steel Motor

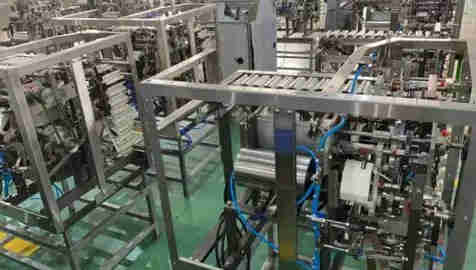

A processing plant uses a standard AC aluminum motor on its industrial hair puller production line. Still, there are problems with their standard engine in the process of use: in addition to health problems, the service life of the standard motor is only 6/8 weeks, and if it exceeds 6/8 weeks, it needs to be disassembled and replaced with a new motor.

Raydafon electric company provides them with stainless steel sanitary motors and special seals for customers. Now the stainless steel motor has been running continuously for 12 months. Since the installation, the processing plant has saved a lot of costs, labor time, downtime, and the cost of replacing new aluminum motors every 6/8 weeks. The processing plant saves tens of thousands of yuan by replacing only one motor... Imagine how much money all 24 motors installed on this production line will save. When you encounter similar problems, please email us. We are also glad to find a cost-effective motor solution for you.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
