Product Description

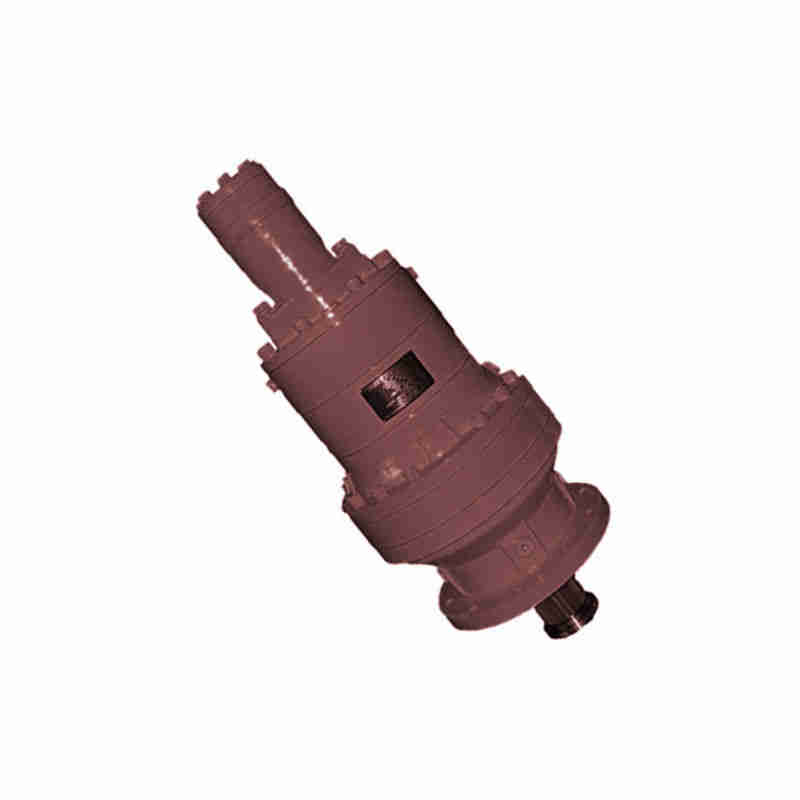

EP303L3-HC

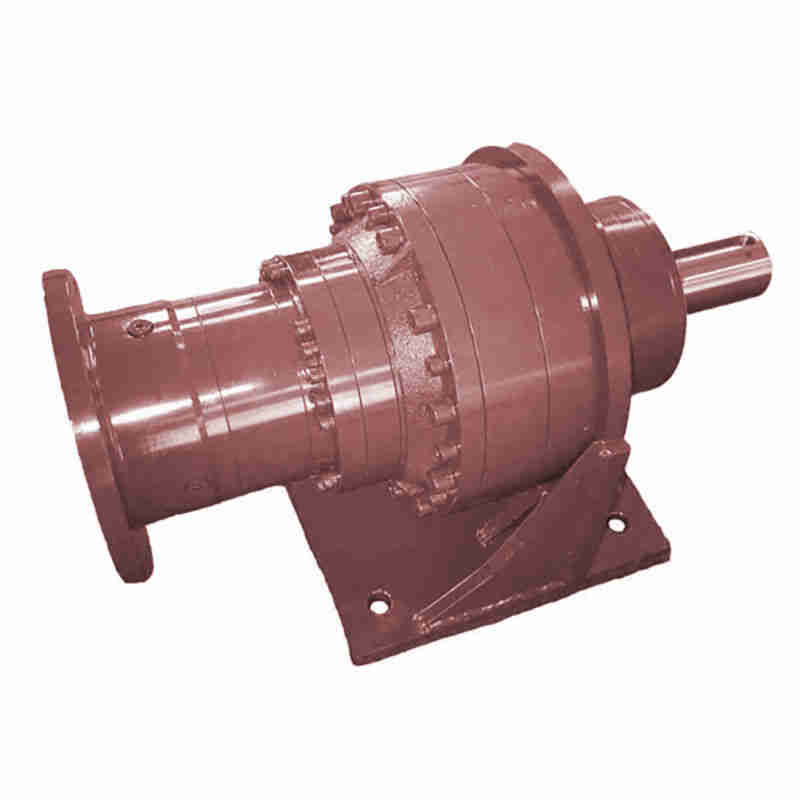

EP305L2-HZ

Inline Planetary Gear Reducer Superior Performance
The EPPG EP300L Series inline planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions, such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight. This gearbox combines high performance with low cost and compact size, excellent reliability, simple installation and reduced maintenance. The EP300L Series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications. The EP300L Series is also available in a high power version, linking the performance of our planetary technology with the high quality and reliability of gearboxes: a solution that is more efficient, quieter, more compact, and more cost-effective compared with traditional gear units.
Inline Planetary Gear Reducer Key Features
1. Torque range: 1000-450.000 Nm
2. Transmissible mechanical power: up to 540 kW
3. Gear ratios: 3.4-9.000
4. Gear unit versions: in line
5. Output configurations:
1) Foot and flange mounted
2) Output shaft: solid with key, splined, splined hollow
3) Hollow with shrink disc
6. Input configurations:
1) Flanged axial piston hydraulic motors
2) Hydraulic orbit motors
3) IEC and Nema motor adaptors
4) Solid input shaft
7. Hydraulic brake: hydraulically released parking brake
8. Electric brake: DC and AC type

Other Model
* EP305L4-PZ
* EP309L3-PC
* EP310L3-HZ

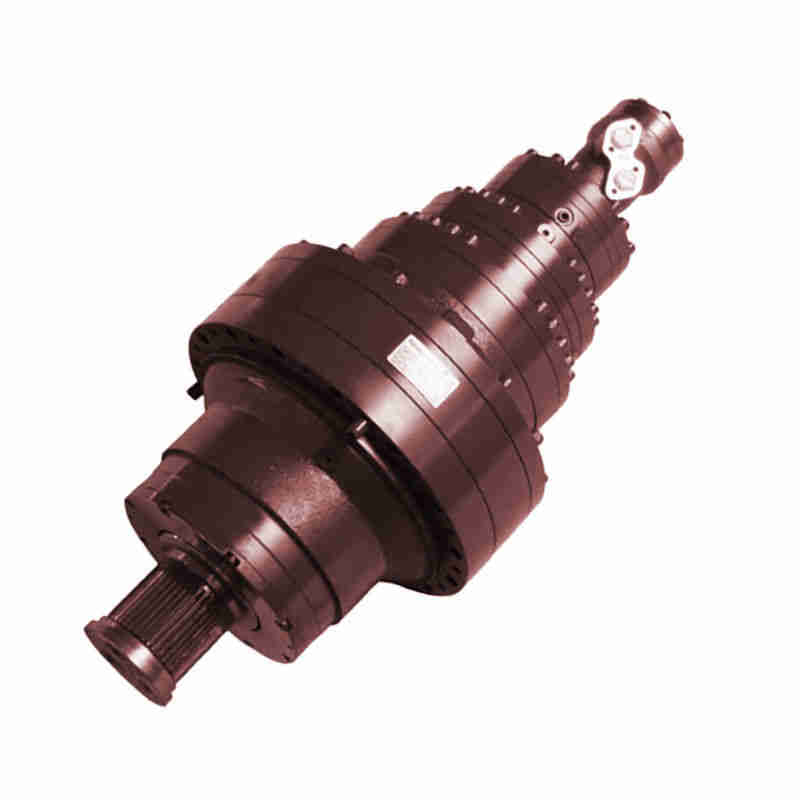

EP305L4-PZ

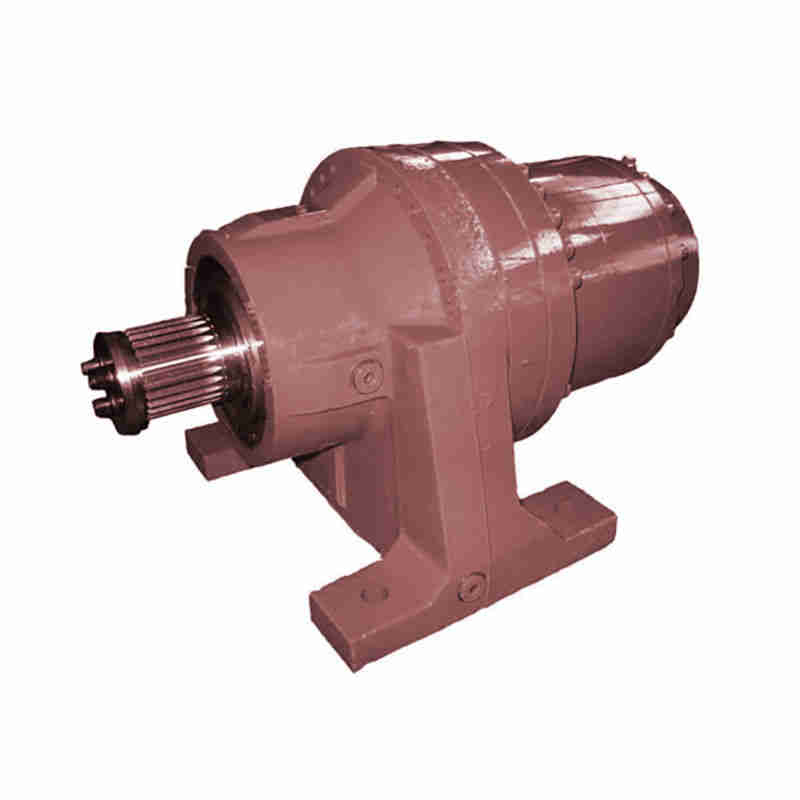

EP309L3-PC

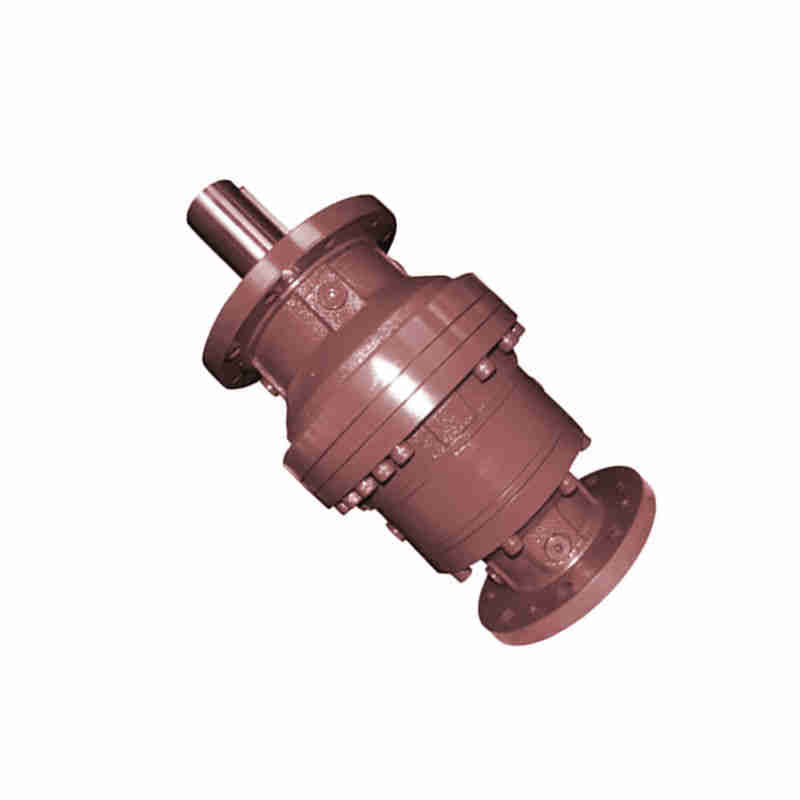

EP310L3-HZ

Tipo			Torque Nm
EP300L	EP300L1, EP300L2, EP300L3, EP300L4	1000
EP301L	EP301L1, EP301L2, EP301L3, EP301L4	1750
EP303L	EP303L1, EP303L2, EP303L3, EP303L4	2500
EP305L	EP305L1, EP305L2, EP305L3, EP305L4	5000
EP306L	EP306L1, EP306L2, EP306L3, EP306L4	8500
EP307L	EP307L1, EP307L2, EP307L3, EP307L4	12500
EP309L	EP309L1, EP309L2, EP309L3, EP309L4	18000
EP310L	EP310L1, EP310L2, EP310L3, EP310L4	25000
EP311L	EP311L1, EP311L2, EP311L3, EP311L4	40000
EP313L	EP313L1, EP313L2, EP313L3, EP313L4	55000
EP315L	EP315L1, EP315L2, EP315L3, EP315L4	100000
EP316L	EP316L1, EP316L2, EP316L3, EP316L4	135000
EP317L	EP317L1, EP317L2, EP317L3, EP317L4	170000
EP318L	EP318L1, EP318L2, EP318L3, EP318L4	250000
EP319L	EP319L1, EP319L2, EP319L3, EP319L4	350000
EP321L	321L 1, 321L2, 321L3, 321L4	500000

Alternative Brand/Model Inquiry
Trasmital Bonfiglioli, Brevini Riduttori, Bosch Rexroth, Comer Industries, Reggiana Riduttori, Rossi, Zollern
